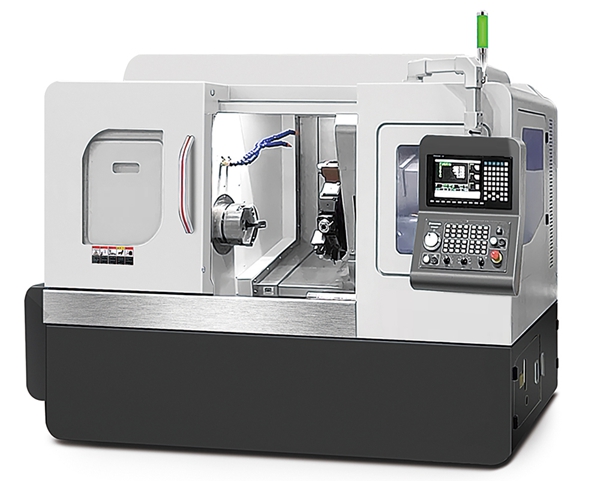

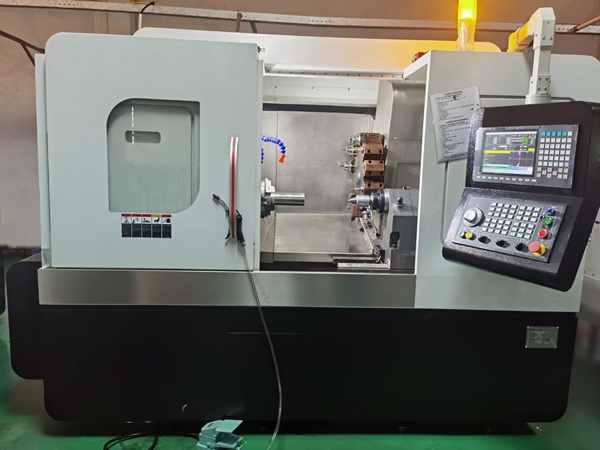

TH700-8PY Power Turret Slant Bed CNC Lathe Machine with Tailstock

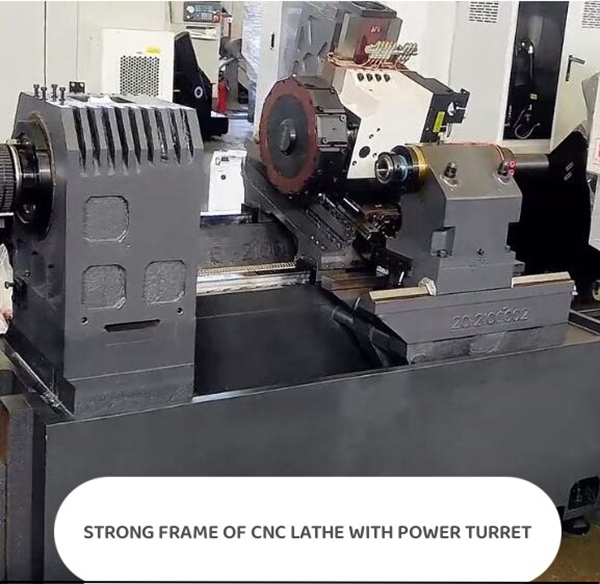

1. Machine base and bed are cast with Resin Sand as A Whole
2. Strong shock resistance, not easy to deform. Machine bed tilt 45°
3. X/Z axis highly rigid linear guideway, the span between tracks is optimized by calculation
4. Taiwan HIWIN/PMI high-precision P3-level ball screw

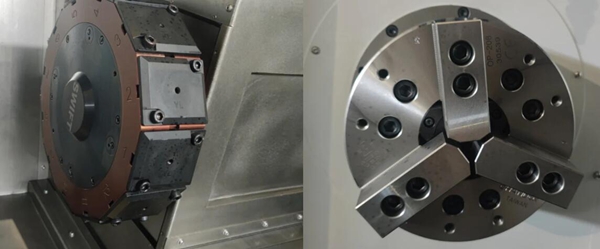

5. Spindle flange can install with 3-jaw self-centering oil pressure chuck or elastic collet
6. Moving speed 24M/min, improve efficiency and shorten processing time

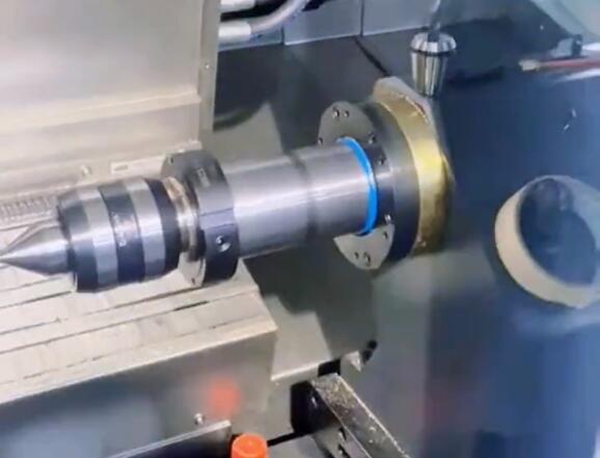

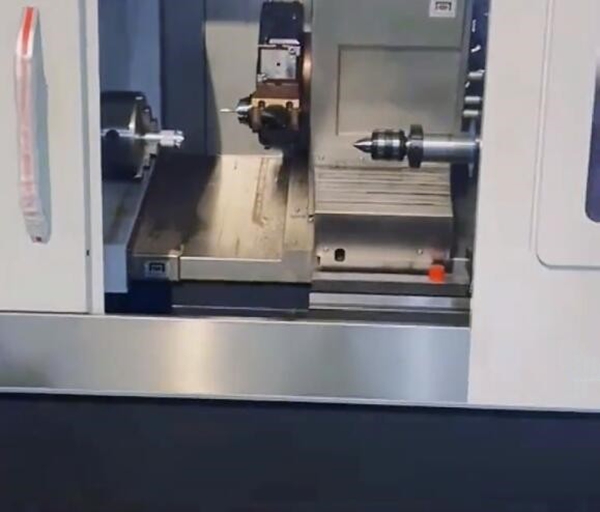

Scalable Tailstock Center
Y axis Composite Machining.

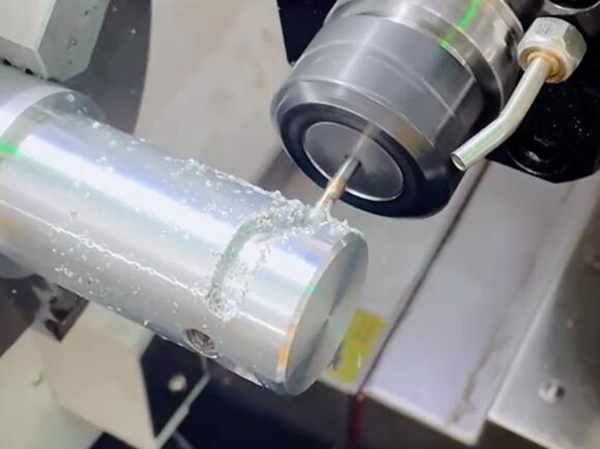

Complex shapes can be machined through Turret’s Y-axis function.

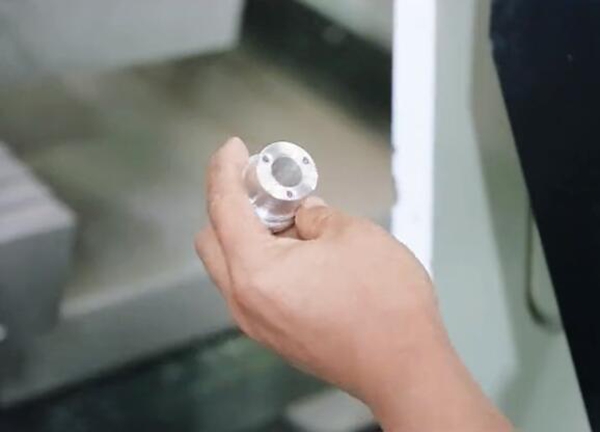

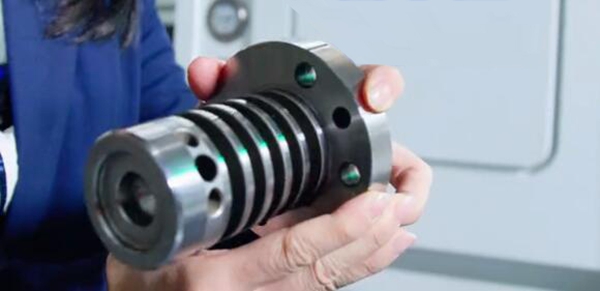

Parts Sample
It can process long axis and large plate products.
Low resistance, high rigidity, high precision.
Large plate and tool holder are inclined, making operation and chip removal more convenient.
Specification of TH700-8PY Power Turret Slant Bed CNC Lathe Machine
Model | Unit | TH600-6PY | TH700-8PY |
Max.swing diameter | mm | φ500 | φ500 |
Max.turning diameter | mm | φ320 | φ350 |
Max.turning length | mm | 380 | 500 |
Max. turning diameter over tool post | mm | φ140 | φ240 |
Spindle nose | A2-5 (6 inch) | A2-6 (8 inch) | |
Spindle speed | r/min | 0-4500 | 0-3000 |
Spindle bore | mm | φ56 | φ66 |
Max speed of power head | r/min | 0-4000 | 0-4000 |
Spindle motor power | kw | 7.5 | 11 |
Tool installation | BMT40-15 stations turret | BMT55-12 stations turret | |
Max.number of tools | pcs | 15 | 12 |
X axis travel | mm | 200 | 270 |
Y axis travel | mm | ±35 (Y-Axis: Hard rail) | ±50 (Y-Axis: Hard rail) |
Z axis travel | mm | 400 | 550 |
X/Z/Y motor power | kw | 2.4/2.4/1.7 | 3.1/3.1/2.4 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Tailstock travel | mm | 360 | 400 |
Square tool holder size | mm | 20x20 | 25x25 |
Round hole tool holder size | mm | φ25 | φ32 |
Type of tailstock center | MT4 | MT5 | |
Power head drive motor | kw | 3.1kw / 4000r/min | 3.1kw / 4000r/min |
Turret drive motor | kw | 0.75kw / 3000r/min | 0.75kw / 3000r/min |
X/Z/Y axis fast moving speed | m/min | X:24 /Z:24/ Y:15 | X:24 /Z:24/ Y:15 |
Hydraulic station motor power | kw | 1.5 | 1.5 |
Machine power | kw | 22 | 27 |
Net weight | kg | 3800 | 4800 |
Machine dimensions (LxWxH) | mm | 2800x1550x1800 | 2800x2900x2100 |
Note: Parameters can be customized according to customer requirements
