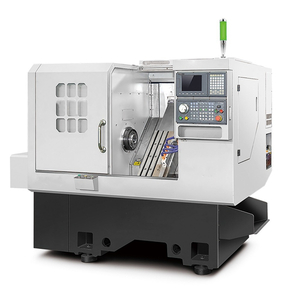

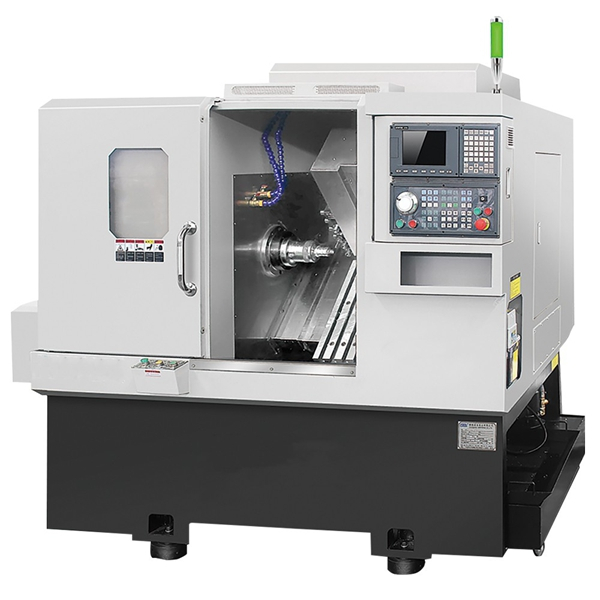

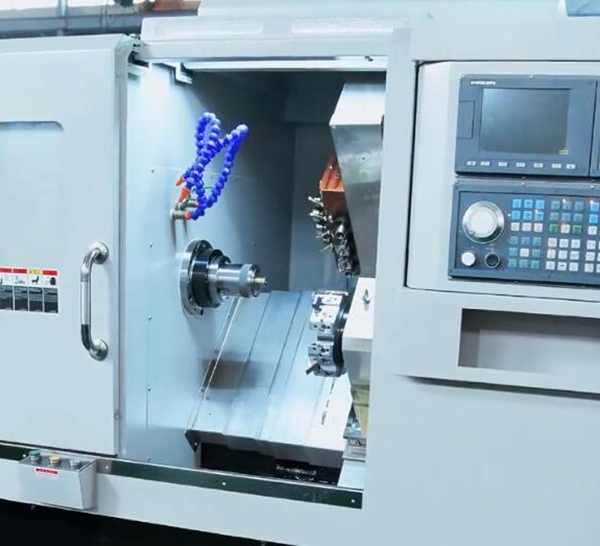

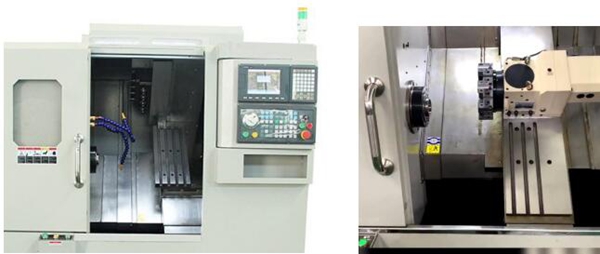

DH5Y/6Y Turning and Milling CNC Lathe Slant Bed
1. Gang Type + (4+4 Power Head)
2. Turret+ (4+4 Power Head)

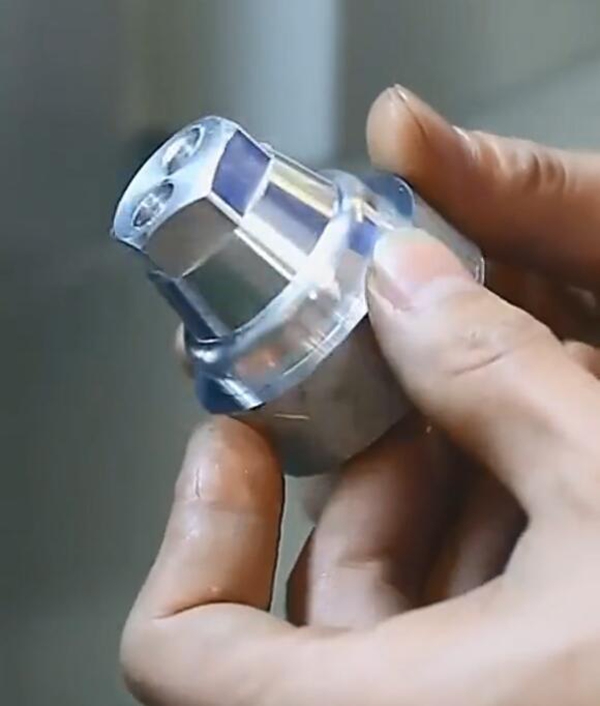

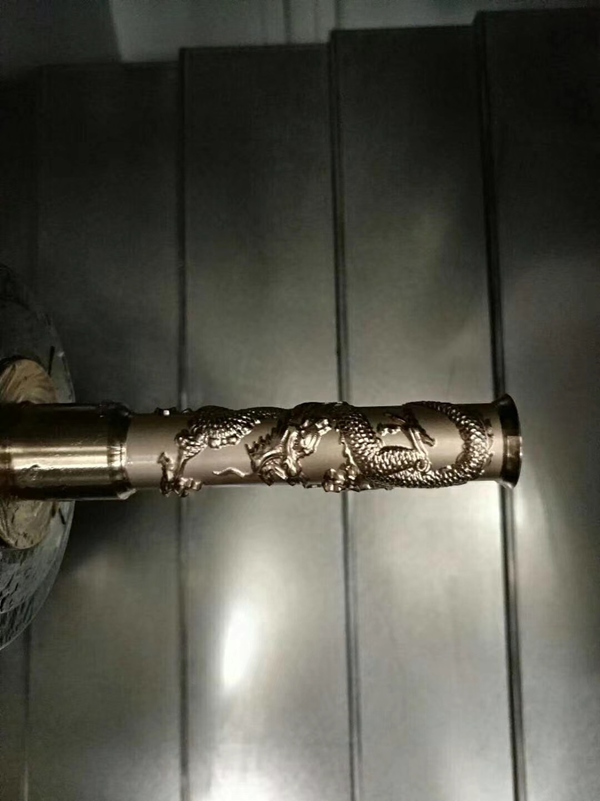

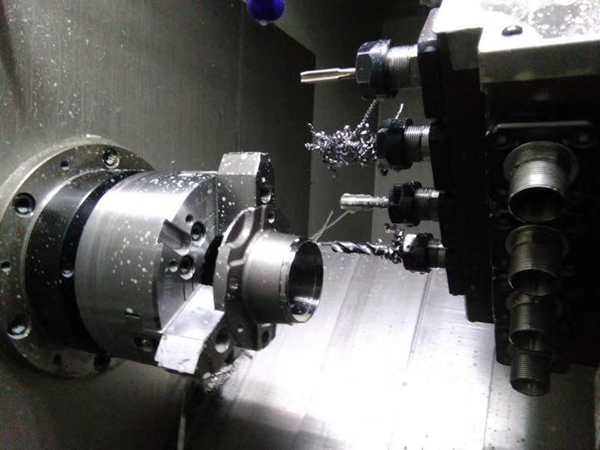

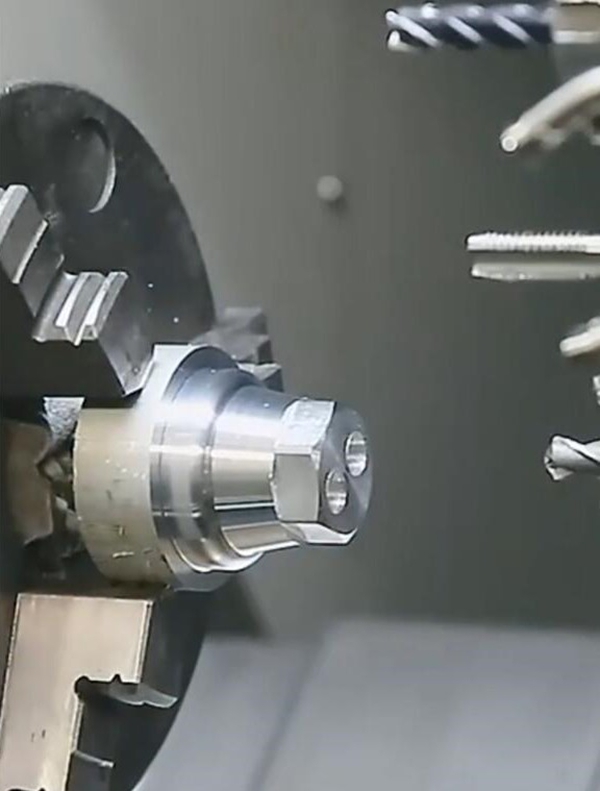

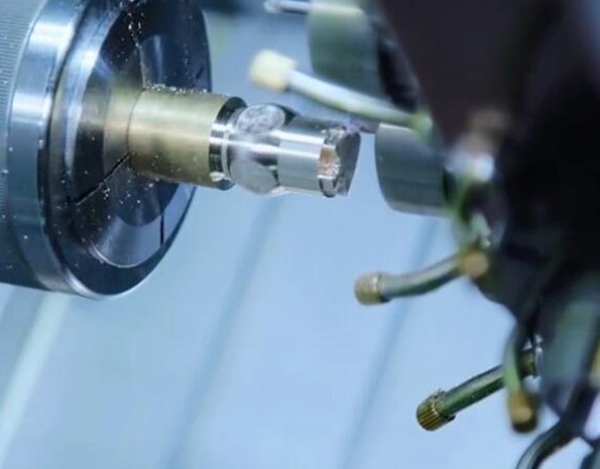

Parts Samples
Specification of DH5Y/6Y CNC Lathe Slant Bed with (4+4 Power Head)
Model | Unit | DH5Y | DH6Y |
Max.swing diameter | mm | φ500 | φ500 |
Max.turning length | mm | 250 | 250 |
Max.turning diameter | mm | φ400 | φ400 |
Spindle nose | mm | A2-4 | A2-5 |
Spindle speed | r/min | 0-4500 | 0-4500 |
Spindle bore | mm | Ф46 | Ф56 |
Spindle motor power | kw | 5.5 | 7.5 |
Tool installation | ER20 live tools+gang type (optional turret) | ||
X/Z axis effective travel | mm | 1040/310 | 1040/310 |
Y axis travel | mm | 210 | 210 |
Chuck size | inch | 5'' | 6'' |
Center height | mm | 96 | 96 |
Matching bar feeder center height | mm | 1200 | 1200 |
X/Z axis machining travel | mm | 1020/250 | 1020/250 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Square tool holder size | mm | 20x20 | 20x20 |
Round hole tool holder size | mm | φ20 | φ20 |
X/Z axis motor power | kw | 2.4/2.4 | 2.4/2.4 |
Y axis motor power up and down | kw | 1.1 | 1.1 |
Y axis power head structure | 4+4 Gear | 4+4 Gear | |
Max.passable bar diameter | mm | φ35 | φ45 |
Y axis power head speed | r/min | 0-4000 (optinal motor) | 0-4000 (optinal motor) |
Y axis power head motor power | kw | 3.1 | 3.1 |
X/Z/Y axis fast moving speed | r/min | X:26 Z:26 Y:18 | X:26 Z:26 Y:18 |
Machine power | kw | 18.5 | 20.5 |
Net weight | kg | 3100 | 3200 |
Machine dimensions (L×W×H) | mm | 2400×1500×2000 | 2400×1500×2000 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts

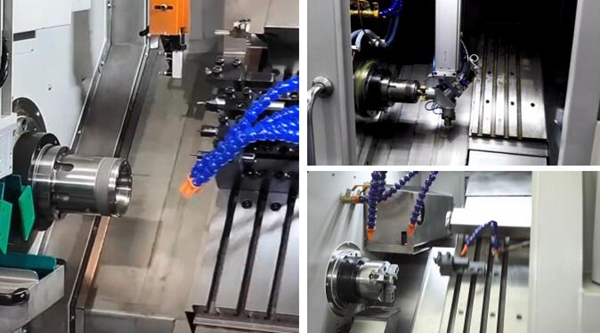

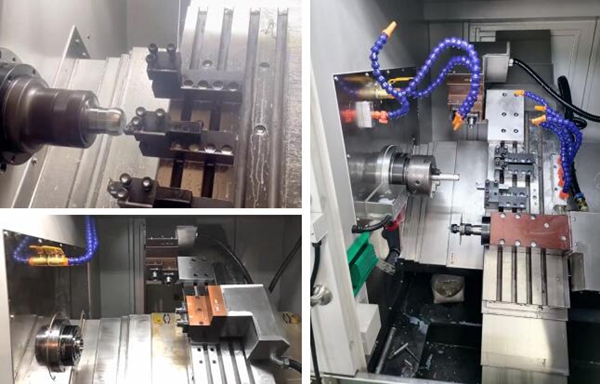

Some Gang Tools Combination Tool Layout

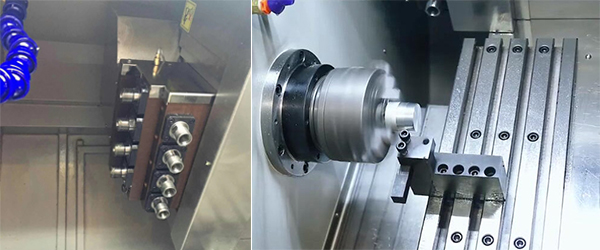

Gang Tools + Side Milling + End Milling Power Head
Gang Tools + Side Milling + End Milling
Gang Tools + (4+4) Power Head

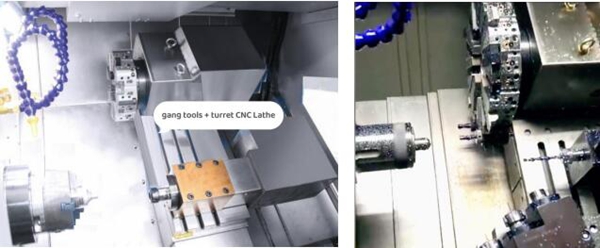

Gang Tools + Turret
Gang Tools + Turret + End Milling Power Head
Gang Tools + Turret + Power Head
Gang Tool + Automation
Online Visiting
We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

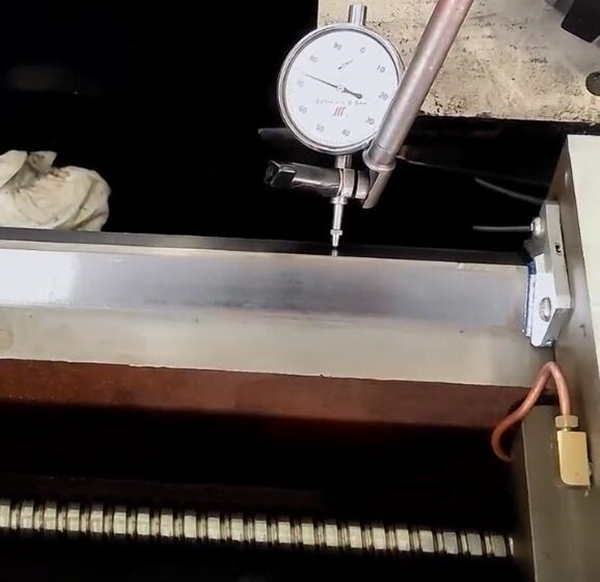

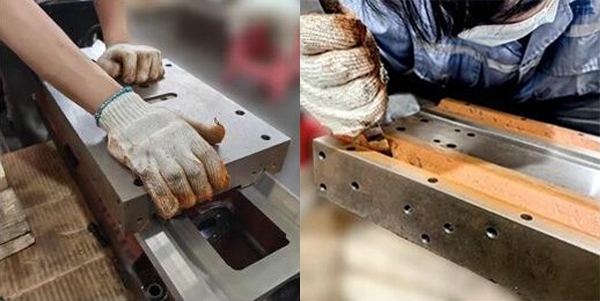

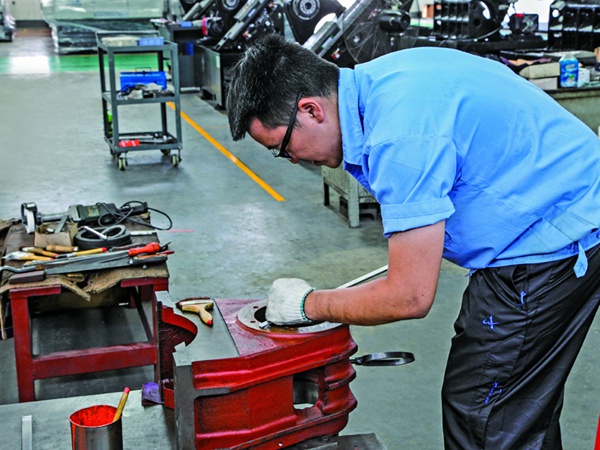

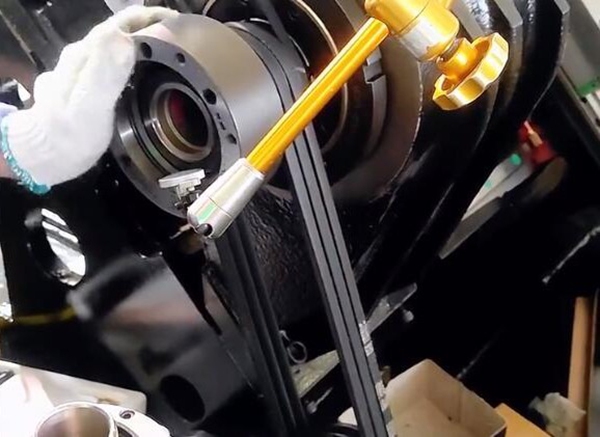

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.
