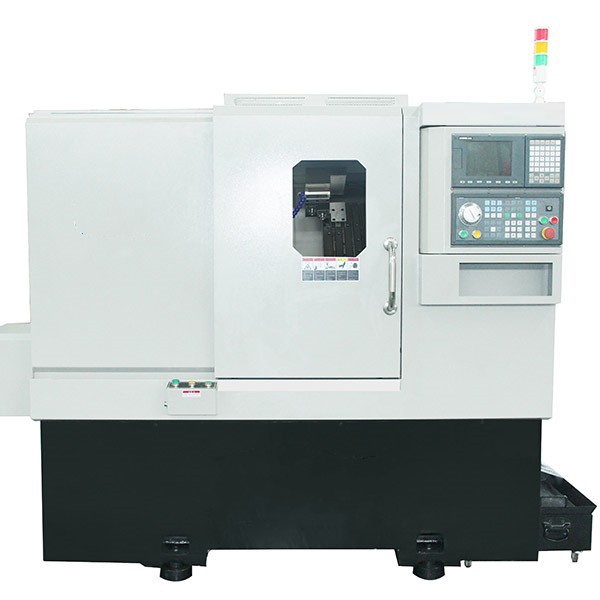

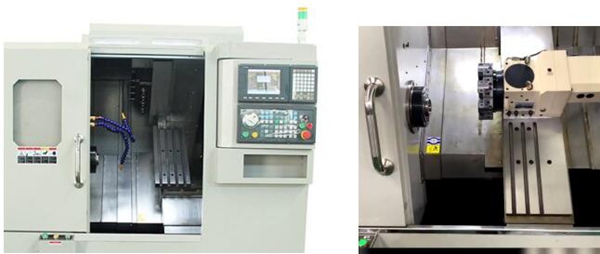

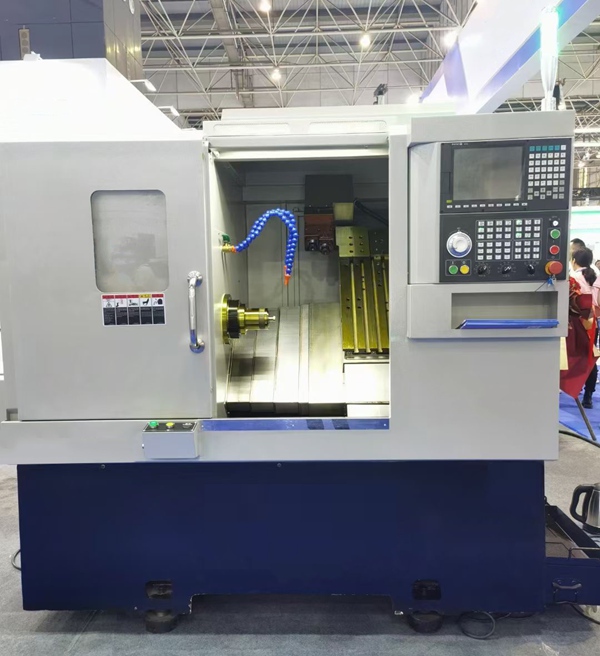

DH6LS Gang Tools Slant Lathe CNC Machine

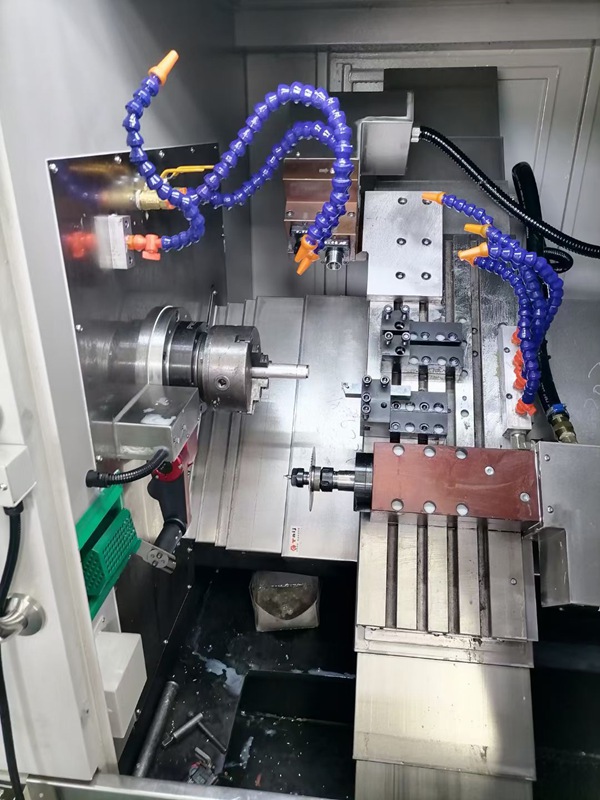

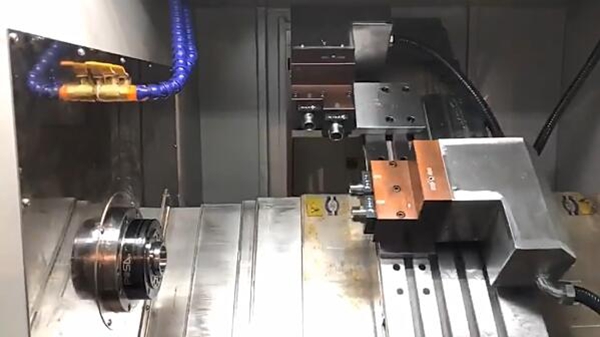

Side Milling Head
Optional: Side Milling Head + End Milling Head
Specification of DH6LS Gang Tools Lathe CNC Machine
Model | Unit | DH5L | DH6L | DH5LE(end milling) | DH6LE(end milling) | DH5LES | DH6LES |
DH5LS (side milling) | DH6LS (side milling) | end + side milling | end + side milling | ||||
Max.swing diameter | mm | φ380 | φ380 | φ380 | φ380 | φ380 | φ380 |
Max.turning diameter | mm | φ380 | φ380 | φ380 | φ380 | φ380 | φ380 |
Max.turning length | mm | 250 | 250 | 250 | 250 | 250 | 250 |
Spindle speed | r/min | 0-4500 | 0-4500 | 0-4500 | 0-4500 | 0-4500 | 0-4500 |
Spindle bore | mm | Ф46 | Ф56 | Ф46 | Ф56 | Ф46 | Ф56 |
Spindle motor power | kw | 5.5 | 7.5 | 5.5 | 7.5 | 5.5 | 7.5 |
Tool installation | Gang type | ER25 live tools + long gang type | |||||
X/Z axis effective travel | mm | 1040/330 | 1040/330 | 1040/330 | 1040/330 | 1040/330 | 1040/330 |
Chuck size | inch | 5'' | 6'' | 5'' | 6'' | 5'' | 6'' |
X/Z axis machining travel | 1030/300 | 1030/300 | 1030/300 | 1030/300 | 1030/300 | 1030/300 | |
X/Z axis repeatability | mm | ±0.005 | |||||
Center height | mm | 56 | |||||
Bar feeder ground to center | mm | 1120 | |||||
Square tool holder size | mm | 20x20 | |||||
Round hole tool holder size | mm | φ20 | |||||
Power head structure | - | 1 with 2 gears | 1 with 2 gears | ||||
(Side milling: 1 long & 1 short live tools) | (Side milling: 1 long & 1 short live tools) | ||||||
or (End milling: 2 short live tools) | and (End milling: 2 short live tools) | ||||||
X/Z axis motor power | kw | 1.3/1.3 (turning milling 2.4/2.4) | |||||
Max. passable bar diameter | mm | φ35 | φ45 | φ35 | φ45 | φ35 | φ45 |
Power head speed | r/min | 0-3000 (Optional motor) | |||||
Power head motor power | kw | 1.7 | 1.7*2 | ||||
X/Z axis fast moving speed | m/min | 26/26 | |||||
Machine power | kw | 11 | 13 | turning milling 15.5 | turning milling 17.5 | turning milling 16.5 | turning milling 19.2 |
Net weight | kg | 2900 | 3000 | 2950 | 3050 | 3000 | 3100 |
Machine dimensions (L×W×H) | mm | 2400×1500×2000 | |||||
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
• Automatic bar feeder
• Side milling head & end milling head

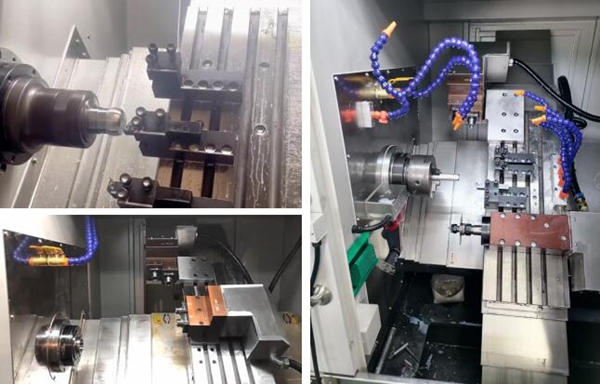

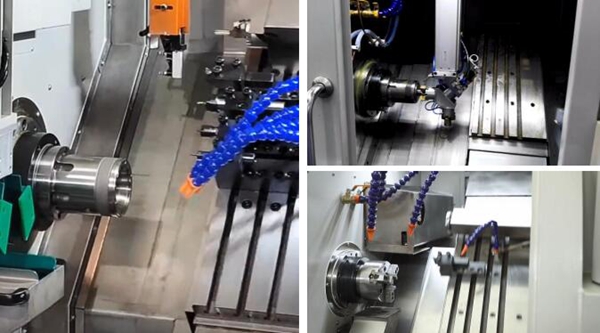

Some Gang Tools Combination Tool Layout
Gang Tools + Side Milling + End Milling Power Head
Gang Tools + Side Milling + End Milling
Gang Tools + (4+4) Power Head

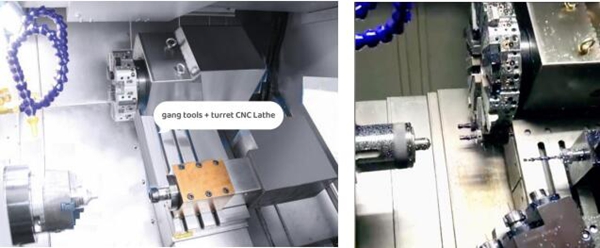

Gang Tools + Turret
Gang Tools + Turret + End Milling Power Head
Gang Tools + Turret + Power Head
Gang Tool + Automation
Online Visiting

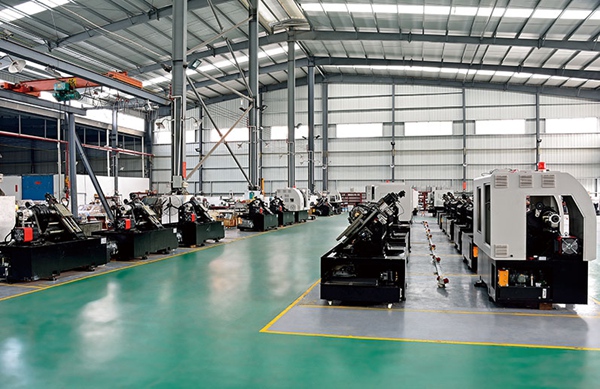

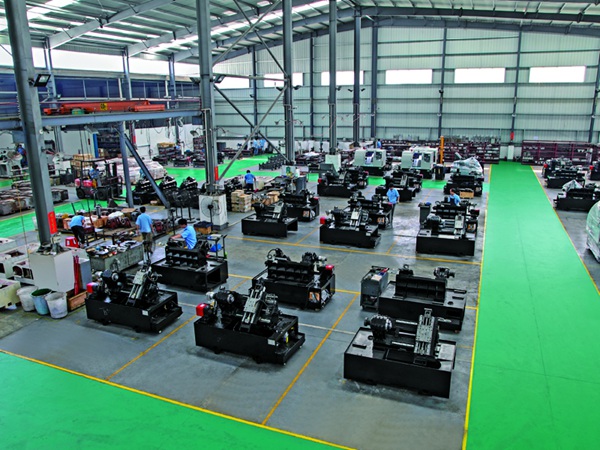

We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

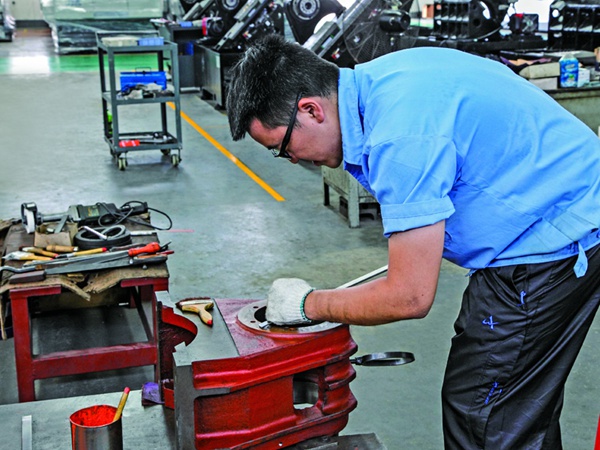

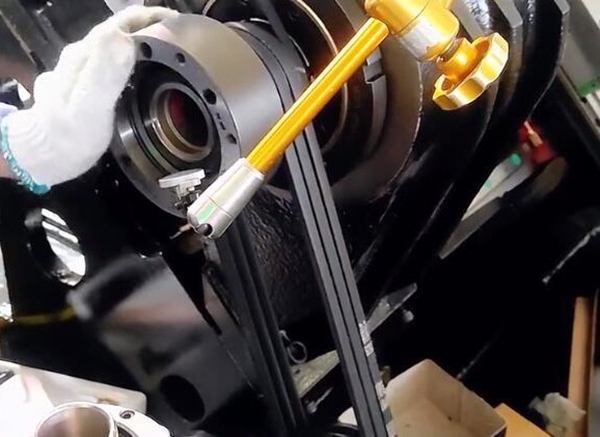

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

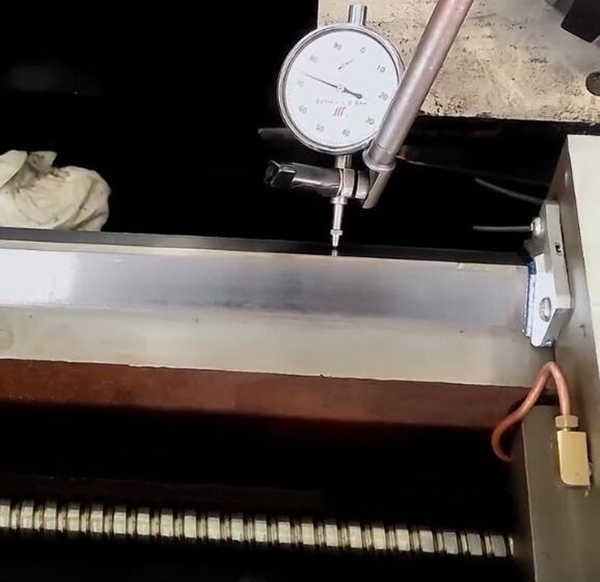

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.
Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
