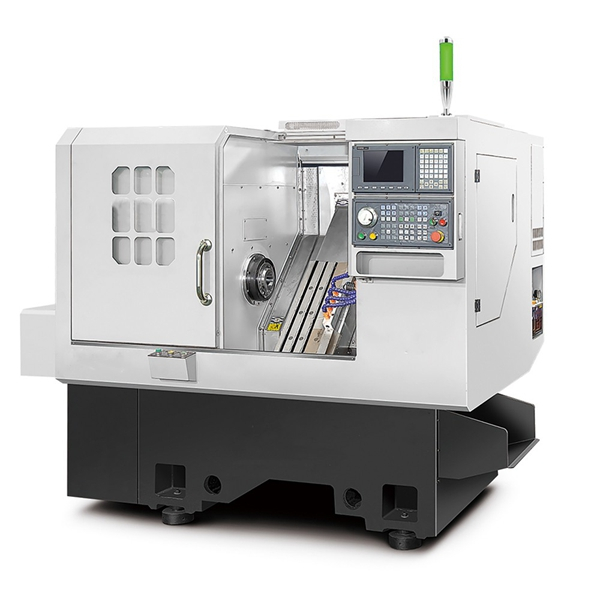

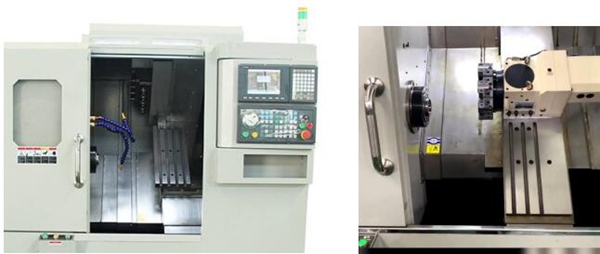

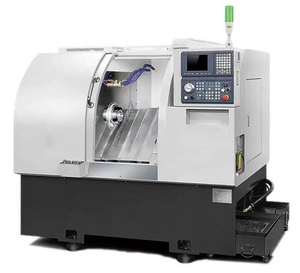

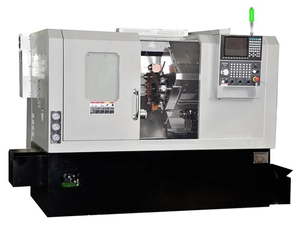

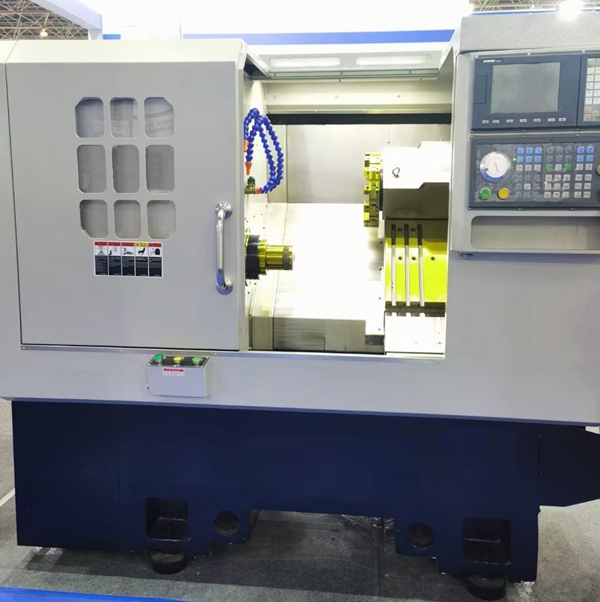

DH6 Gang Tools Slant Lathe Machine CNC
Standard: 8 Gang Tools
Optional: add Turret + Power Head
Specification of DH6 Gang Tools Lathe Machine CNC
Model | Unit | DH5 | DH6 |
Max.swing diameter | mm | φ400 | φ400 |
Max.turning diameter | mm | φ400 | φ400 |
Max.turning length | mm | 350 | 350 |
Spindle nose | A2-4 | A2-5 | |
Spindle speed | r/min | 0-4500 | 0-4500 |
Spindle bore | mm | Ф46 | Ф56 |
Spindle motor power | kw | 5.5 | 7.5 |
Tool installation | Gang type | Gang type | |
Max.number of tools | pcs | 8 | 8 |
X/Z axis effective travel | mm | 880/380 | 880/380 |
X/Z axis servo motor power | kw | 0.85/1.3 | 1.3/1.3 |
Chuck size | inch | 5'' | 6'' |
X/Z axis machining travel | mm | 860/360 | 860/360 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Center height | mm | 63 | 63 |
Matching Bar feeder center height | 1100 | 1100 | |
Square tool holder | mm | 20x20 | 20x20 |
Round hole tool holder | mm | φ20 | φ20 |
Max. passable bar diameter | mm | Ф35 | Ф45 |
X/Z axis fast moving speed | m/min | 26 | 26 |
Machine power | kw | 11 | 12 |
Net weight | kg | 2800 | 2900 |
Machine dimensions (L×W×H) | mm | 2350×1500×1800 | 2300×1500×1800 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
• Automatic bar feeder

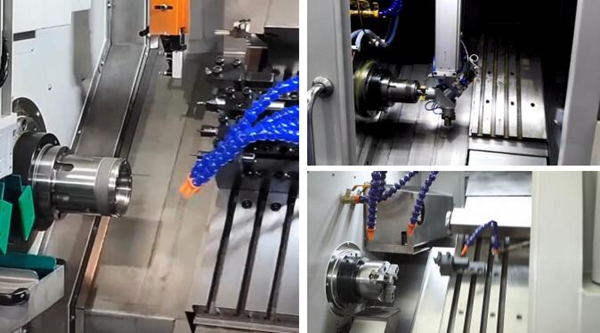

Some Gang Tools Combination Tool Layout
Gang Tools + Side Milling + End Milling Power Head
Gang Tools + Side Milling + End Milling
Gang Tools + (4+4) Power Head

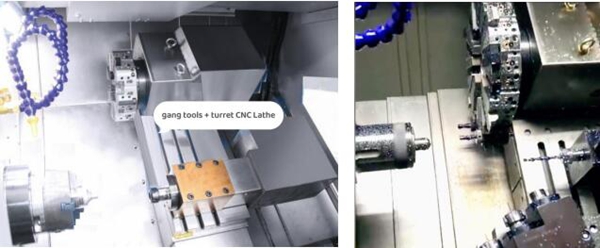

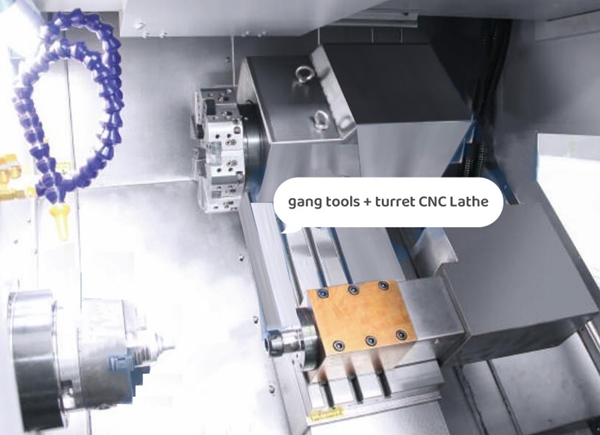

Gang Tools + Turret
Gang Tools + Turret + End Milling Power Head
Gang Tools + Turret + Power Head
Gang Tool + Automation

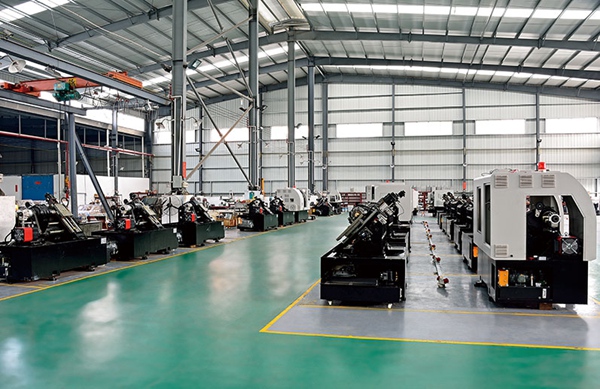

Online Visiting
We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

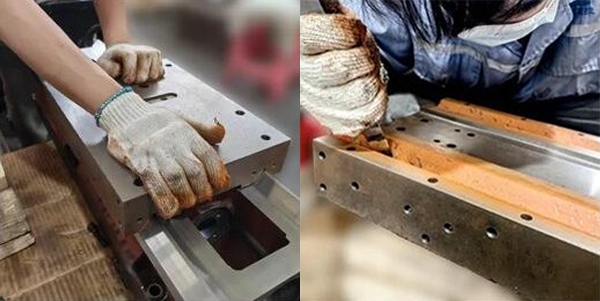

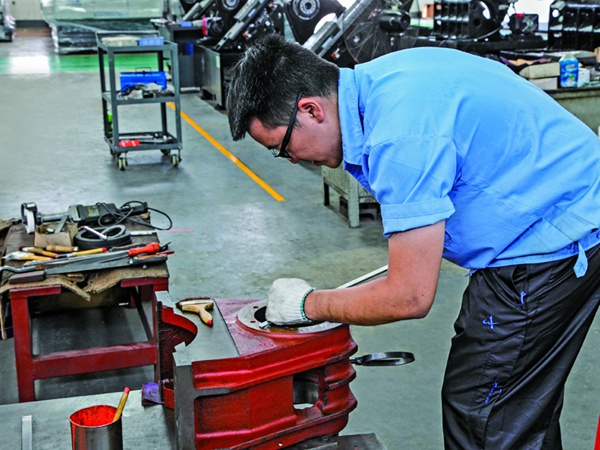

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

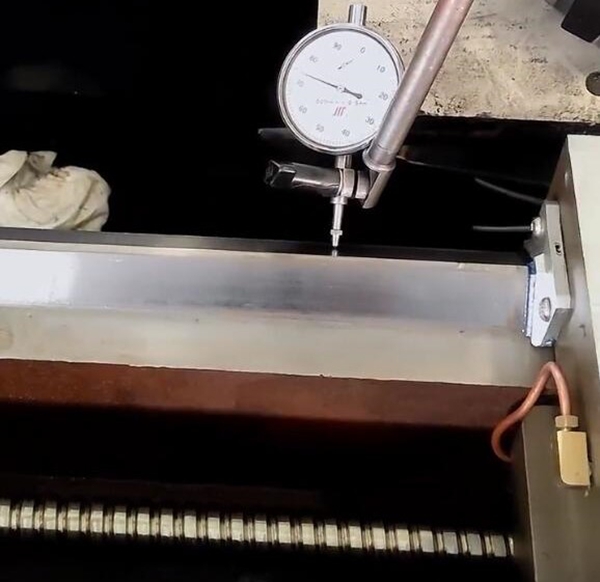

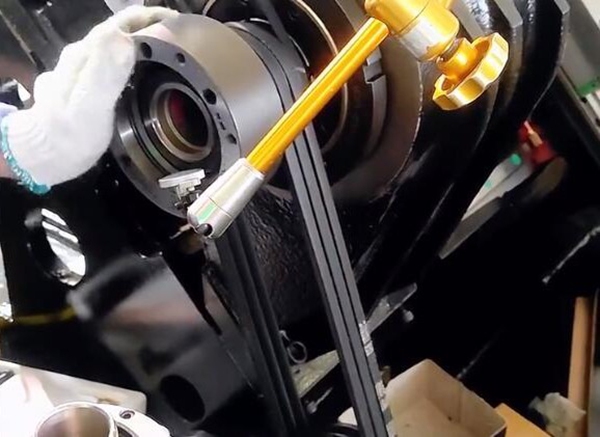

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.
Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
