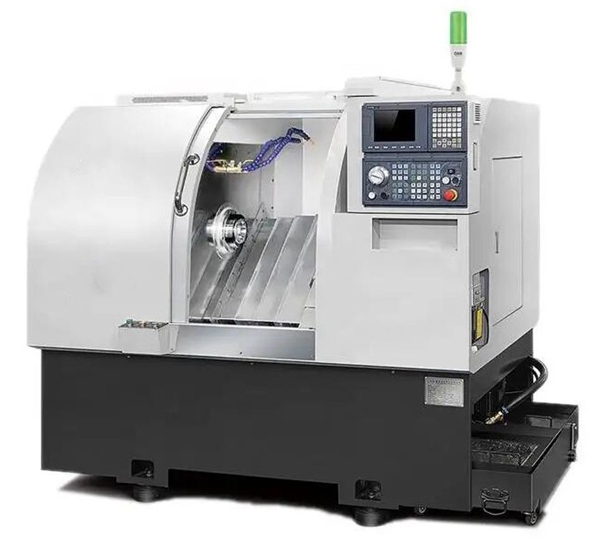

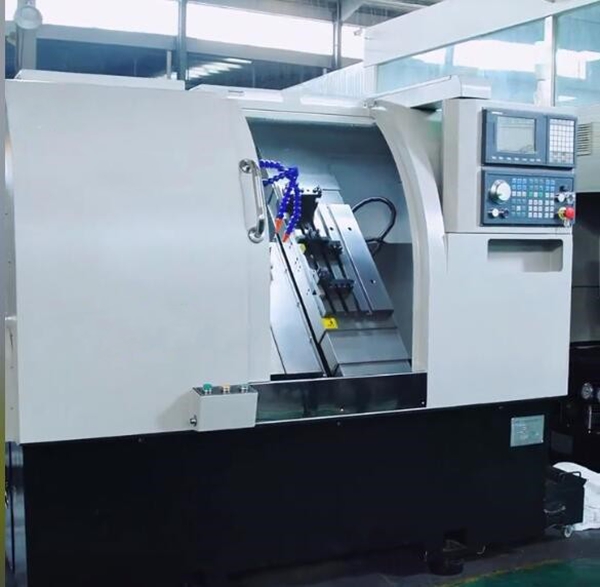

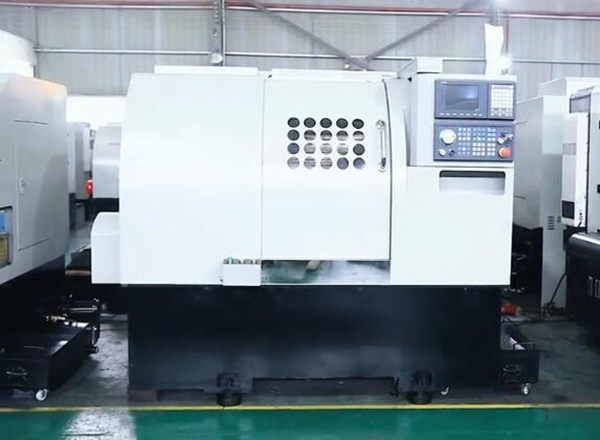

G36C Gang Tools Slant CNC Machine Lathe
Hydraulic oil box volume increase, better heat dissipation, more stable work
Beautiful design, less space consumption

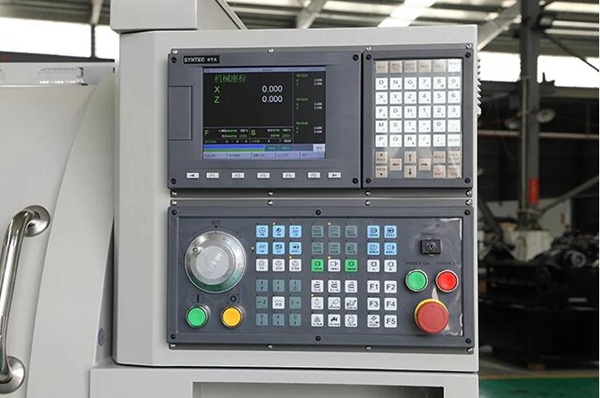

TAIWAN SYNTEC, English and Russian Language

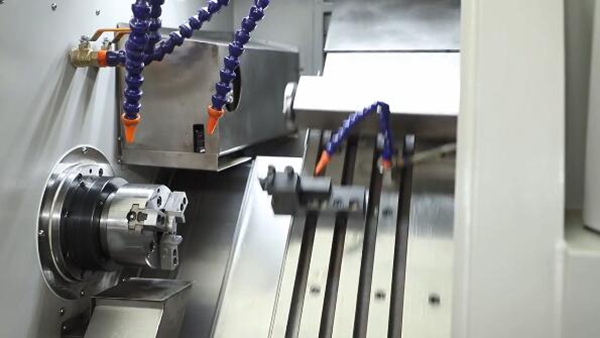

3-jaw self-centering oil pressure chuck or other elastic collet

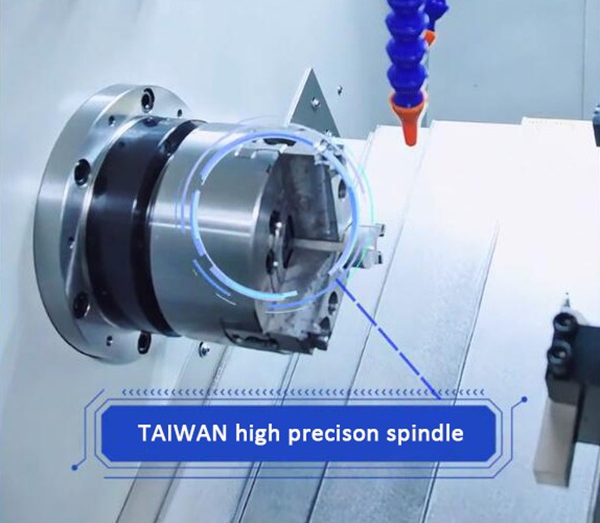

NSK High Precision Bearing in Spindle
Workpiece holding mode: Hydraulic
X/Z axis highly rigid linear guideway, span between the tracks is optimized by calculation
Taiwan HIWIN/PMI high-precision P3-level ball screw

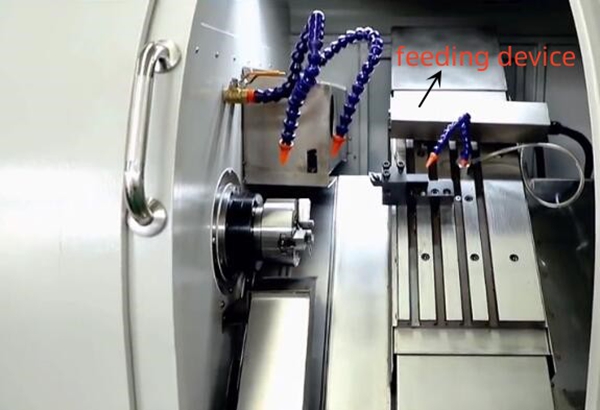

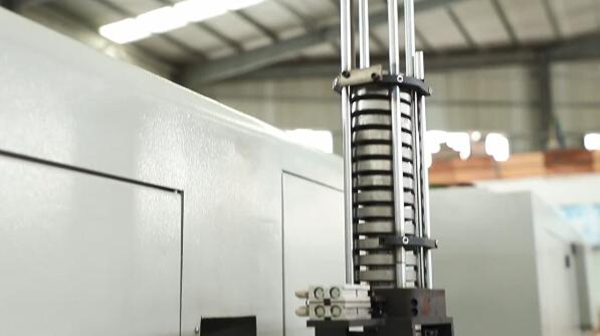

Optional Sample Feeding Device

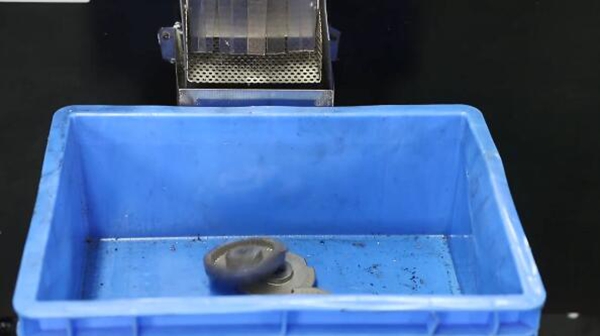

Optional Automatic Output Device

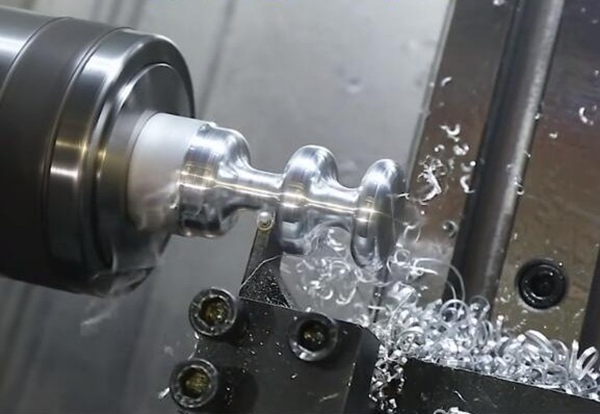

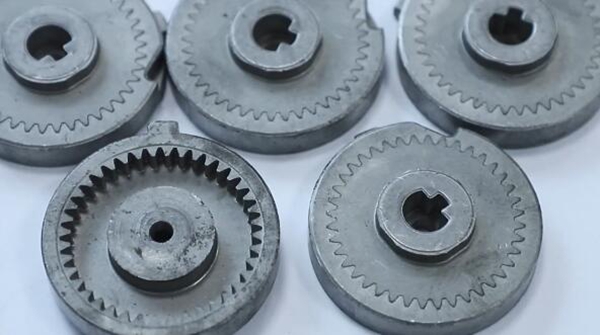

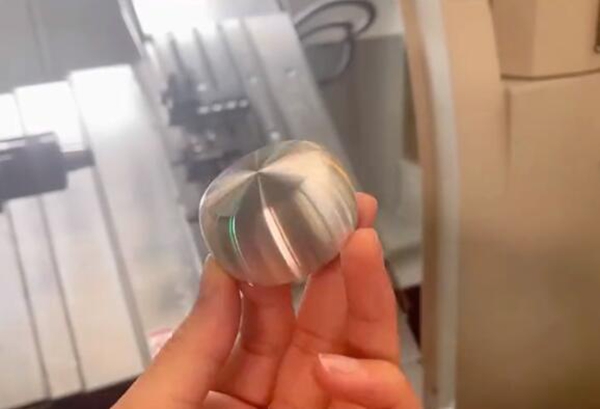

Other Parts Samples
Specification of G46C Gang Tools CNC Machine Lathe
Model | Unit | G36C | G46C |
Max.swing diameter | mm | φ400 | φ400 |
Max.turning diameter | mm | φ400 | φ400 |

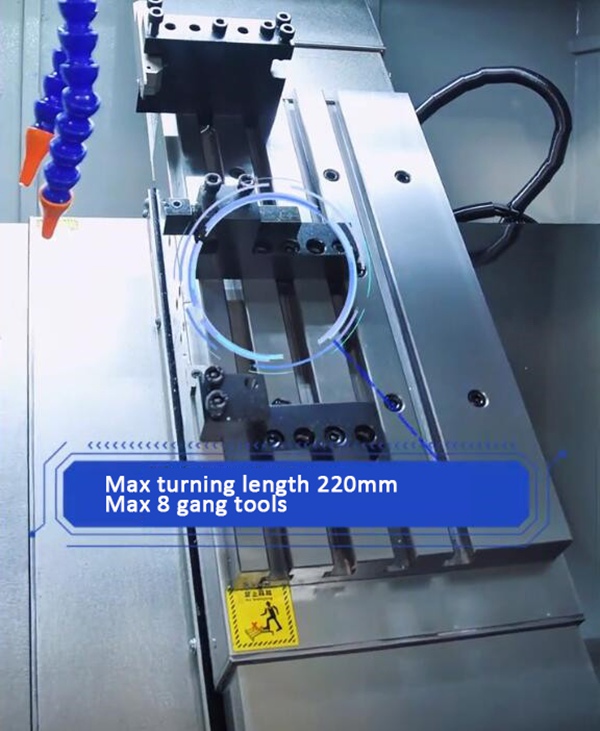

Max.turning length | mm | 220 | 220 |
Spindle nose | A2-4 | A2-5 | |
Spindle speed | r/min | 0-4500 | 0-4500 |
Spindle bore | mm | Ф46 | Ф56 |
Spindle motor power | kw | 5.5 | 7.5 |
Tool installation | Gang type | Gang type | |
Max.number of tools | pcs | 8 | 8 |
X/Z axis effective travel | mm | 720/280 | 720/280 |
X/Z axis motor power | kw | 0.85/1.3 | 1.3/1.3 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Chuck size | inch | 5'' | 6'' |
Max passable bar diameter | mm | Ф35 | Ф45 |
X/Z axis maching travel | mm | 720/250 | 720/250 |
Center height | mm | 56 | 56 |
Square tool holder | mm | 20x20 | 20x20 |
Round hole tool holder | mm | φ20 | φ20 |
X/Z axis fast moving speed | m/min | 26/26 | 26/26 |
Machine power | kw | 10 | 12 |
Net weight | kg | 2800 | 2900 |
Machine dimensions (L×W×H) | mm | 2300×1350×1760 | 2300×1350×1760 |
Packing dimensions (L×W×H) | mm | 2700×1700×2330 | 2700×1700×2330 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
• Automatic bar feeder

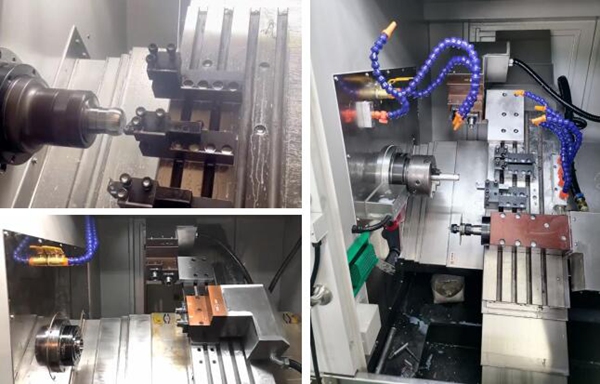

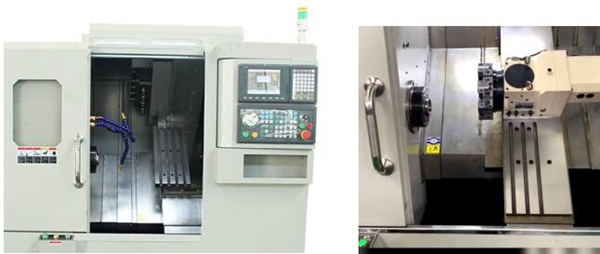

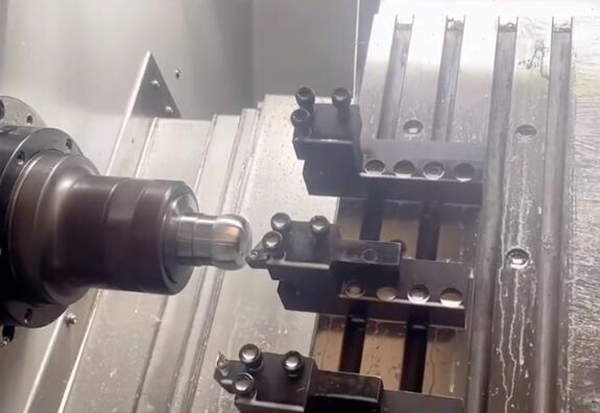

Some Gang Tools Combination Tool Layout
Gang Tools + Side Milling + End Milling Power Head
Gang Tools + Side Milling + End Milling
Gang Tools + (4+4) Power Head

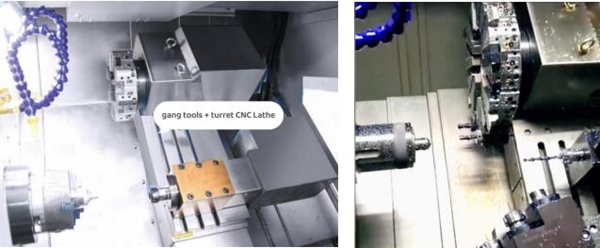

Gang Tools + Turret
Gang Tools + Turret + End Milling Power Head
Gang Tools + Turret + Power Head

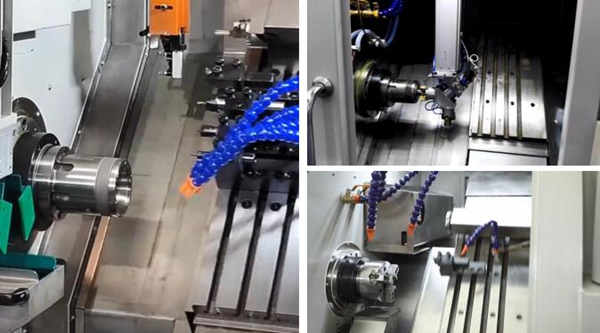

Gang Tool + Automation

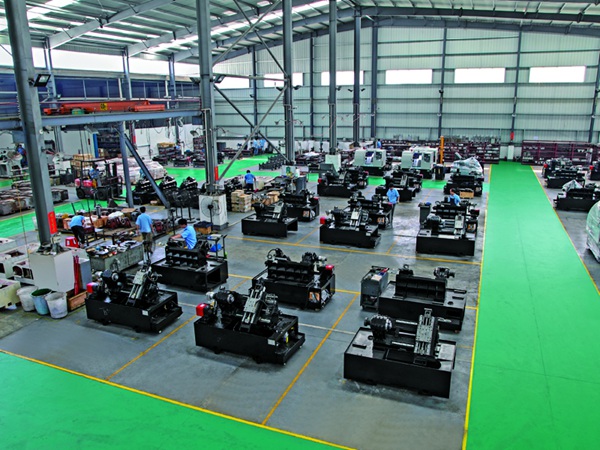

Online Visiting

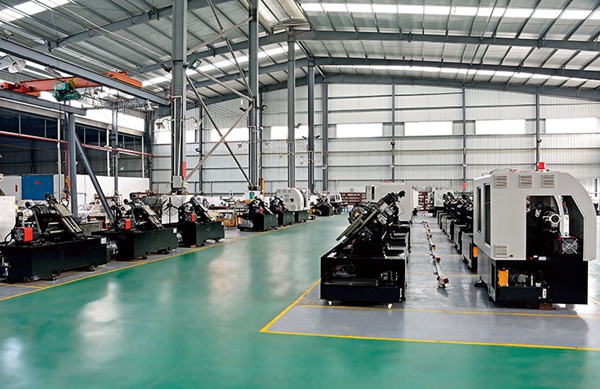

We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

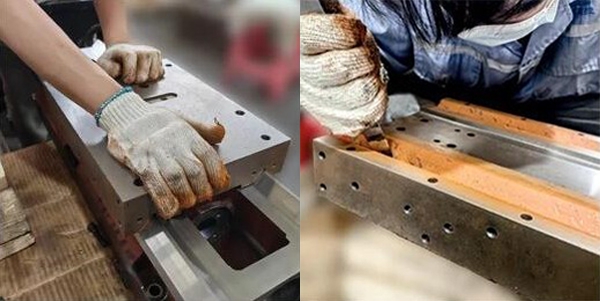

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

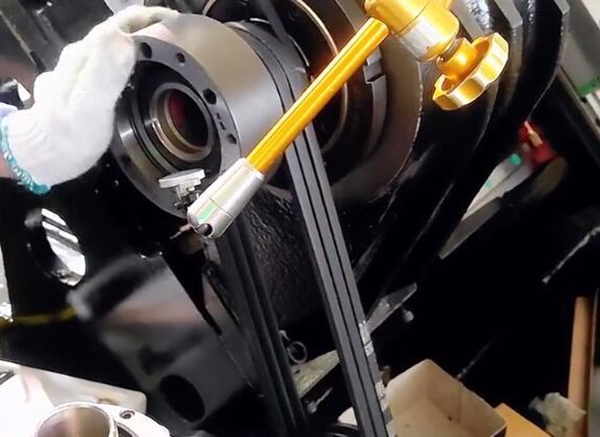

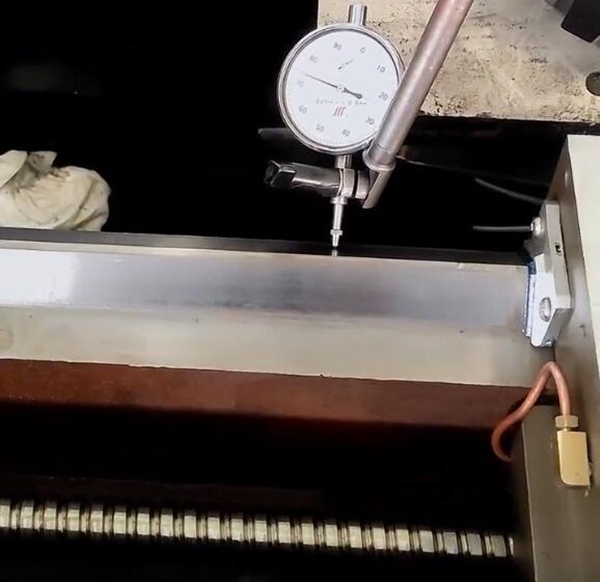

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.
Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
