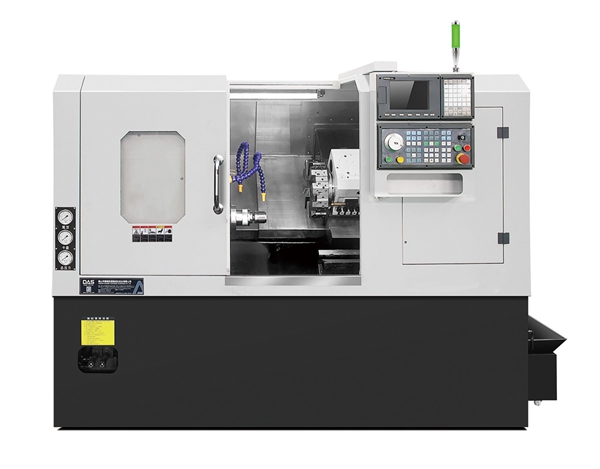

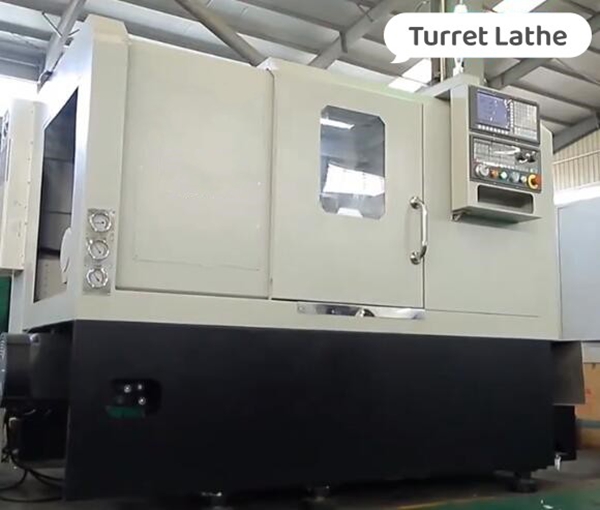

TH600-6/8 Slant Bed CNC Turning Turret Lathe

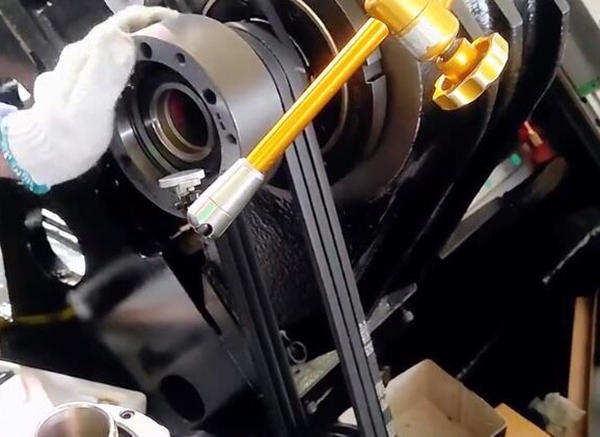

Spindle flange can install with 3-jaw self-centering oil pressure chuck or elastic collet

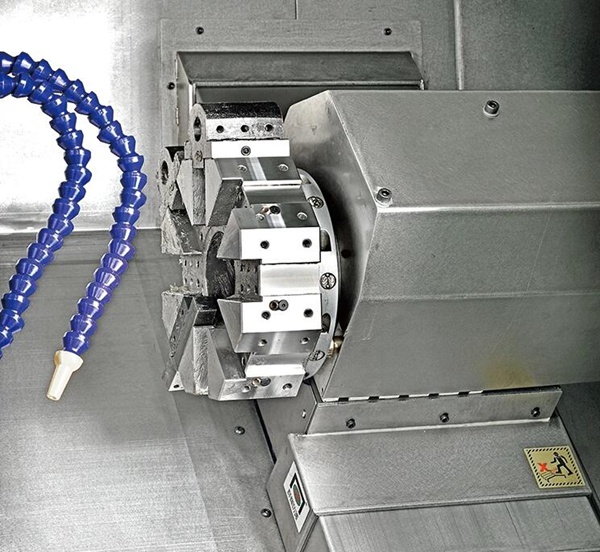

12 Position Servo Turret (Optional Power Turret)

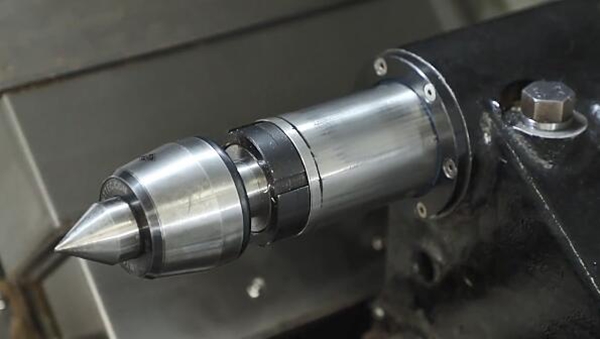

Scalable Tailstock Center
Specification of TH600-6/8 Turret CNC Turning Turret Lathe
Model | Unit | TH600-6/6P | TH600-8/8P |
Max.swing diameter | mm | φ520 | φ520 |
Max.machining diameter | mm | φ450 | φ450 |
Max.turning length | mm | 450 | 420 |
Spindle nose | A2-5 | A2-6 | |
Center height of turret | mm | 80 | 80 |
Spindle speed | r/min | 0-4500 | 0-3000 |
Spindle bore | mm | φ56 | φ62 |
Chuck size | inch | 6'' | 8'' |
Spindle motor power | kw | 7.5 | 7.5/11(optional) |
Tool installation | 12 stations servo turret | 12 stations servo turret | |
Max.number of tools | pcs | 12 | 12 |
X/Z axis travel | mm | 230/460 | 260/430 |
Max.passable bar diameter | mm | φ45 | φ52 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
X/Z axis motor power | kw | 2.4/2.4 | 2.4/2.4 |
Turret power motor power | kw | 3.1 | 3.1 |
Center height | mm | 80 | 80 |
Tailstock travel | mm | 360 | 360 |
Square tool holder size | mm | 25x25 | 25x25 |
Round hole tool holder size | mm | φ25 | φ25 |
Type of tailstock center | MT4 | MT4 | |
X/Z axis fast moving speed | m/min | 26/26 | 26/26 |
Hydraulic station motor power | kw | 1.5 | 1.5 |
Pump motor power | kw | 0.75 | 0.75 |
Machine power | kw | 16.3/19.6(6P) | 16.3/19.6(8P) |
Net weight | kg | 3500 | 3500 |
Machine dimensions (LxWxH ) | mm | 2800x1550x1800 | 2800x1550x1800 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
• Power Turret

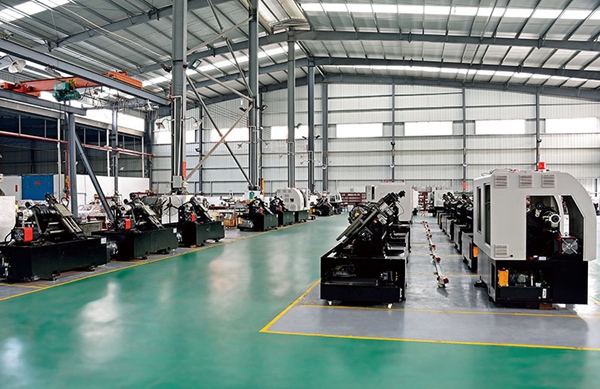

Online Visiting

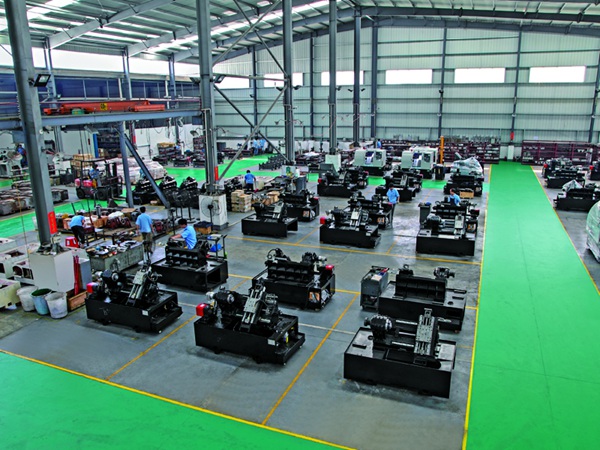

We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

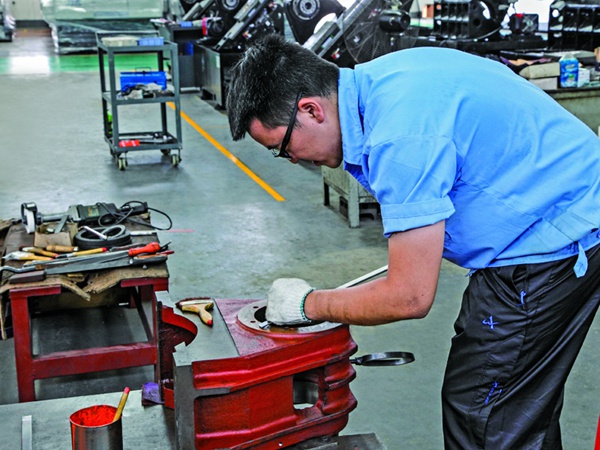

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

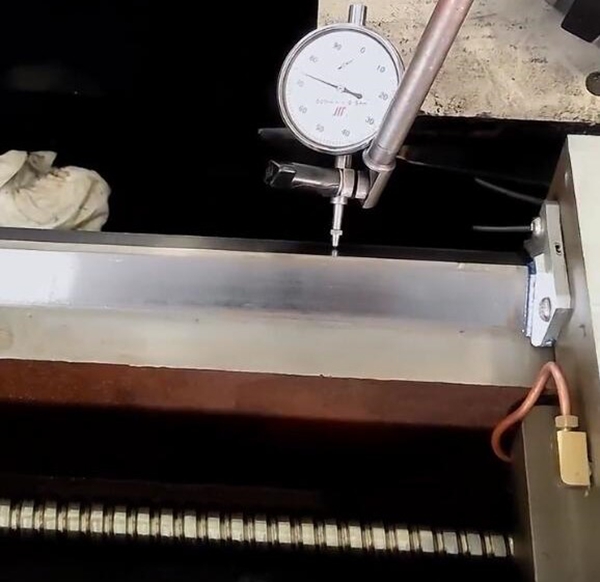

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.

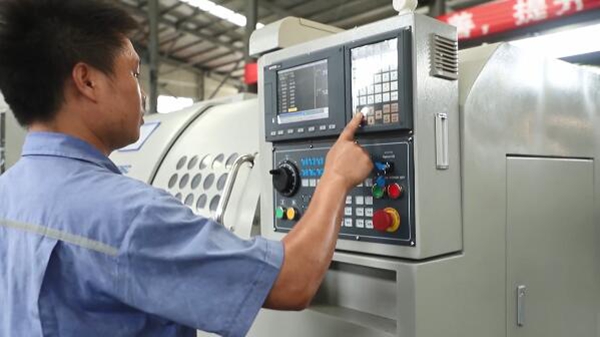

Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
