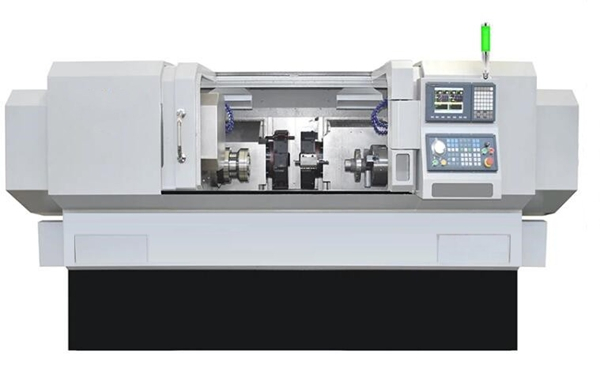

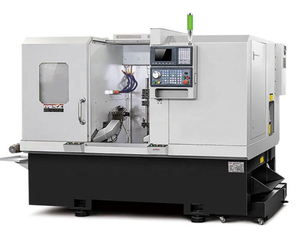

TH10DII Big Travel Double Turret CNC Lathe Machine

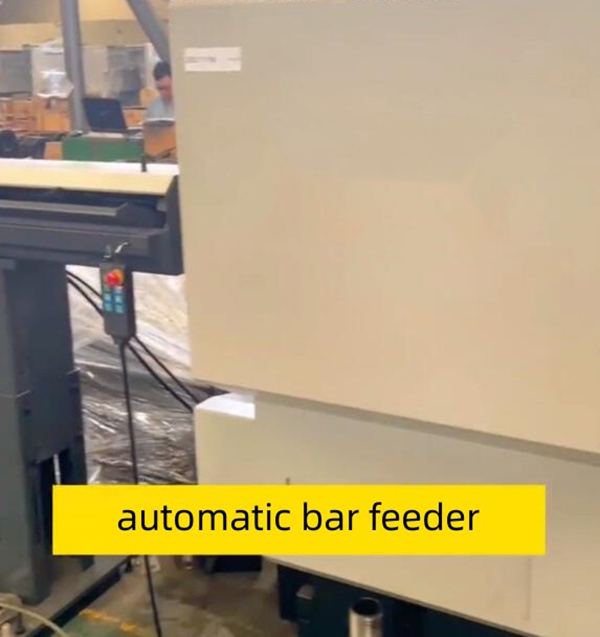

The CNC Lathe can install Automatic Bar Feeder (Optional)

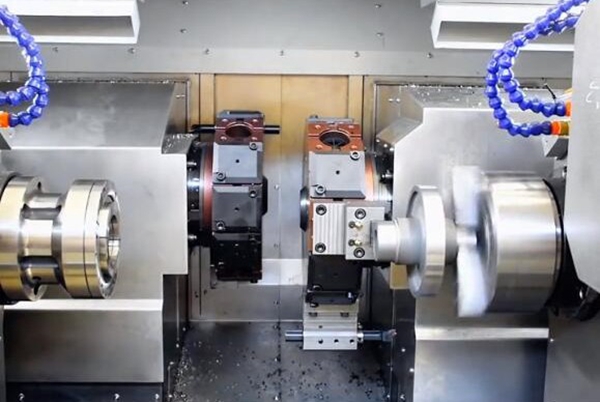

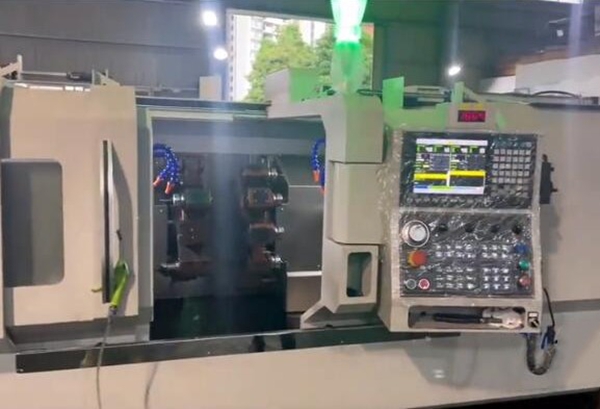

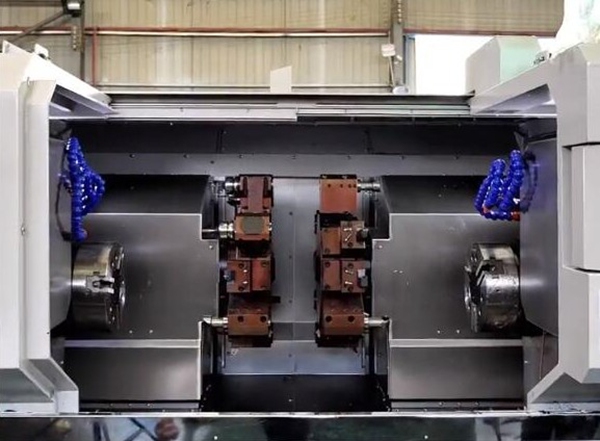

Two Turrets Work Independently.
Two Turrets Work Simultaneously,

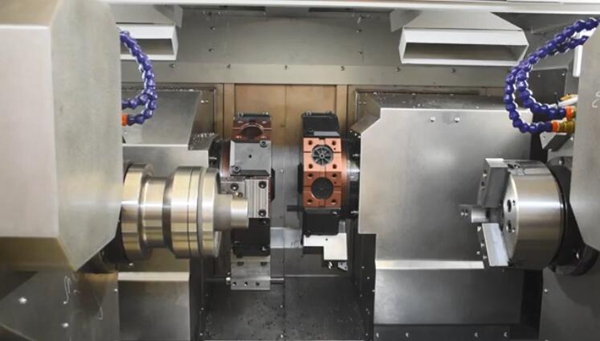

Automatically make workpiece turn around, two spindles can pick up the workpiece each other. Improve efficiency.
Specification of TH10DII Big Travel Double Turret CNC Lathe Machine
Model | Unit | TH8DII/DIIP | TH10DII/DIIP |
Max.swing diameter | mm | φ550 | φ550 |
Max.turning diameter | mm | φ300 | φ300 |
Max.turning length | mm | 600 | 600 |
Spindle nose | A2-6 (8 inch) | A2-8 (10 inch) | |
Sub-spindle nose | A2-6 (8 inch) | A2-8 (10 inch) | |
Spindle speed | r/min | 0-2500 | 0-1800 |
Spindle/Sub-spindle bore | mm | φ62/φ62 | φ85/φ85 |
Spindle/Sub-spindle motor power | kw | 15 (Low speed high torque) | 15 (Low speed high torque) |
Tool installation | BMT65 | BMT65 | |
Turret drive motor | kw | 0.75/0.75 | 0.75/0.75 |
Turret power motor (DIIP) | kw | 3.1/3.1 (DIIP) | 5.5/5.5 (DIIP) |
Max.number of tools | pcs | 12 | 12 |
X1/Z1 axis travel | mm | 500/450 | 500/450 |
X2/Z2 axis travel | mm | 500/580 | 500/580 |
X1/Z1 axis servo motor power | kw | 3.9/3.9 | 3.9/3.9 |
X2/Z2 axis servo motor power | kw | 3.9/3.9 | 3.9/3.9 |
Guide type | Linear guide way | Linear guide way | |
X/Z axis fast moving speed | m/min | 24/24 | 24/24 |
Hydraulic station motor power | kw | 3.75 | 3.75 |
Pump motor power | w | 750*2 | 750*2 |
Machine power | kw | 56.8/63 (DIIP) | 57/68 (DIIP) |
Net weight | kg | 7200 | 7200 |
Machine dimensions (LxWxH) | mm | 3800x2400x2000 | 3800x2400x2000 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
Online Visiting

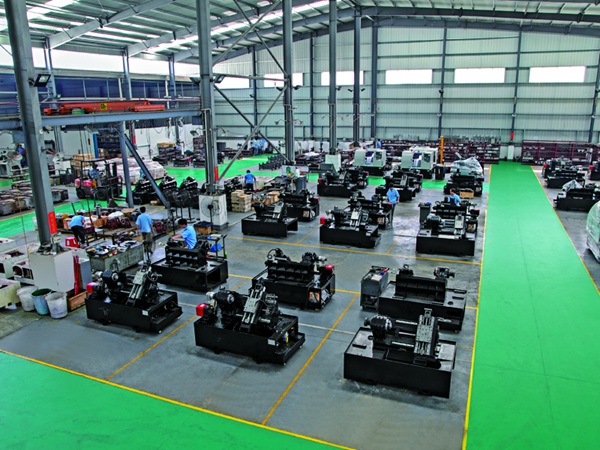

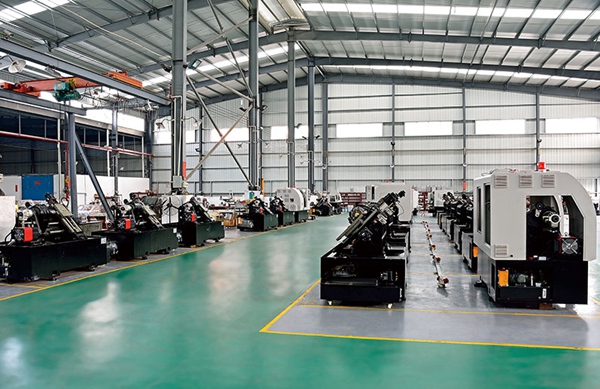

We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

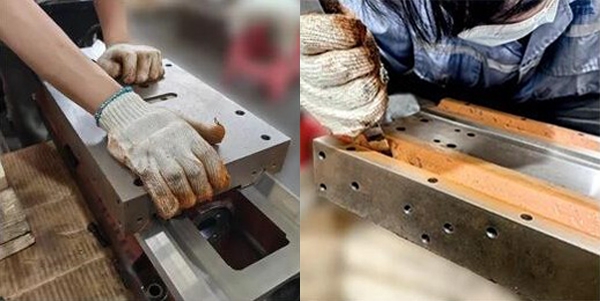

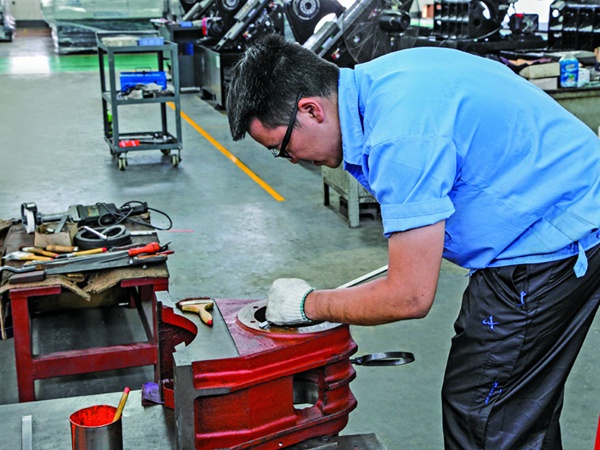

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

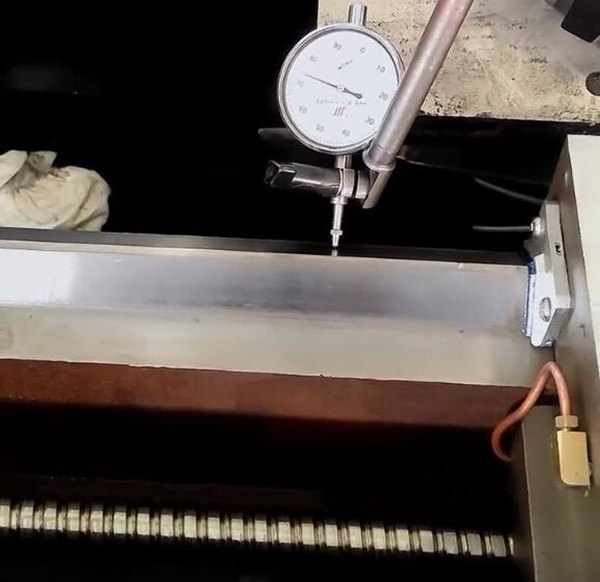

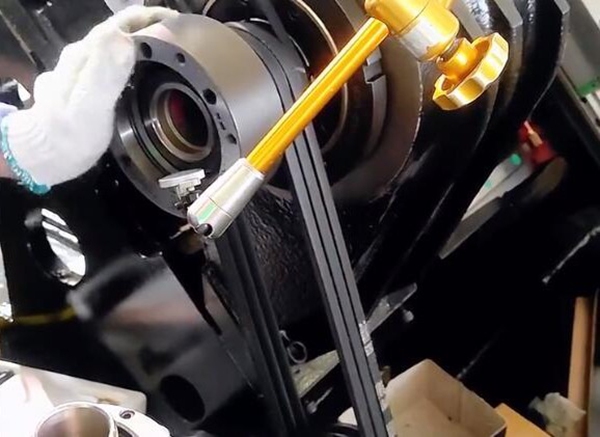

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.
Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed:
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods:
——T/T, L/C
3. After-sale service:
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
