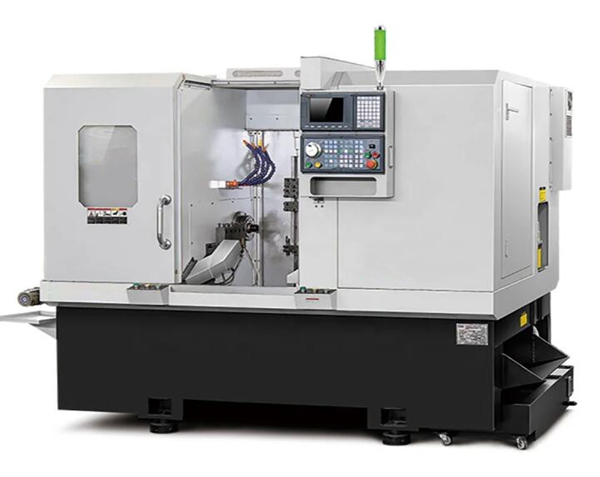

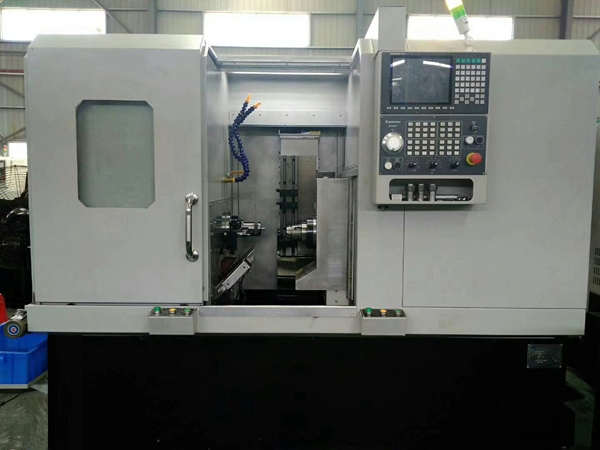

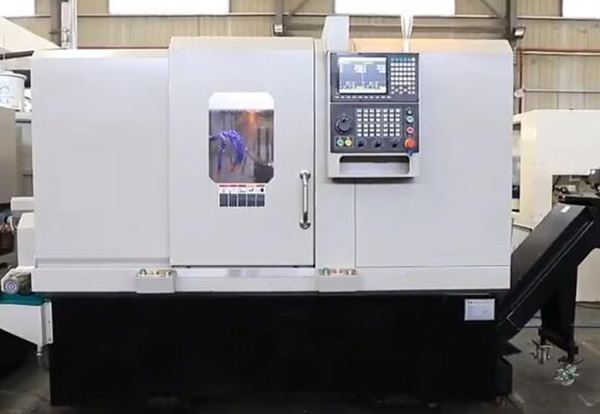

DH5DI Double Spindle Gang Tools China CNC Lathe Machine
Taiwan HIWIN/PMI high-precision P3-level ball screw
35 type linear guide rail for stronger rigidity
Taiwan high precision spindle
160 three-jaw self-centering oil pressure chuck or other elastic collet
Spindle servo motor to optimize the performance
Optional automatic feeding machine and product receiving device, to achieve fully automated production.

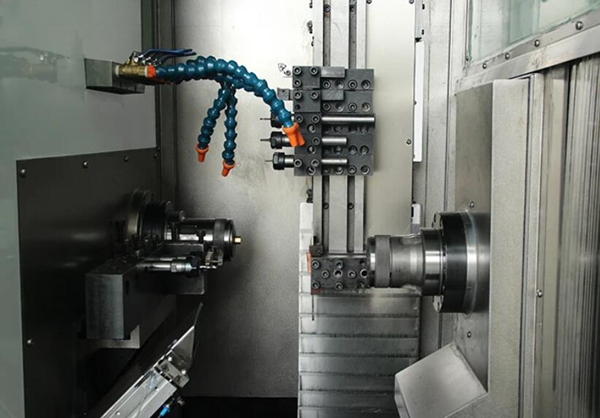

Two Spindle Work Independently.
The system is equipped with dual channel function to achieve simultaneous processing of main spindle and sub-spindle, eliminating the trouble of secondary processing and greatly improving production efficiency.
Gang Tools Plate can Move.
Two Spindle Work Simultaneously.

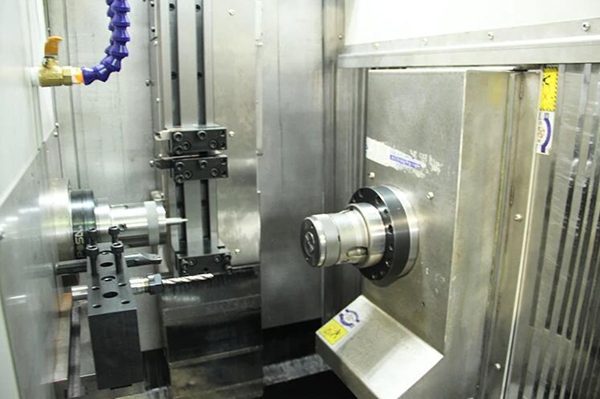

The machine equipped with sub-spindle and a secondary tool post in side to achieve workpiece rotation and catching for secondary processing, reducing secondary clamping time.

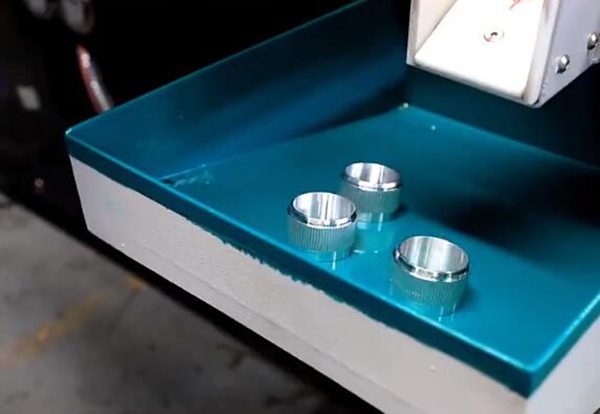

Parts Samples

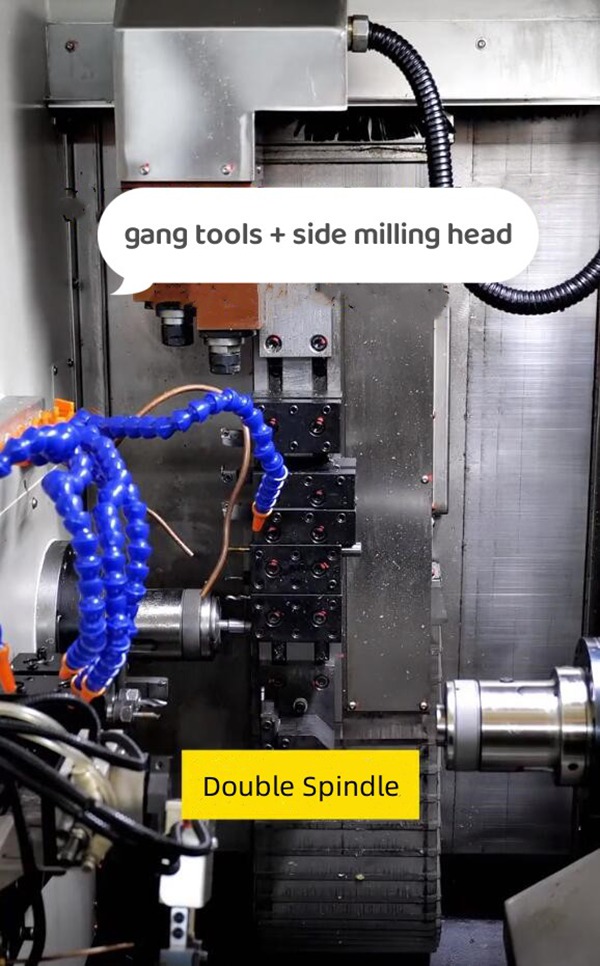

Add Side Milling Head (Optional)
Specification of DH5DI Double Spindle Gang Tools China CNC Lathe Machine
Model | Unit | DH5DI (Tools plate move) |
Max.swing diameter | mm | φ200 |
Max.turning diameter | mm | φ129 |
Max.turning length | mm | 150 |
Spindle nose | A2-4(36 type) | |
Sub-spindle nose | A2-4(25 type) | |
Tool holder center height | mm | 65 |
Spindle speed | r/min | 0-4500 |
Spindle bore | mm | Ф46 |
Sub-spindle bore | mm | Ф32 |
Spindle/Sub-spindle motor power | kw | 5.5/3.7 |
Tool installation | Gang tools | |
X1/Z1 axis travel | mm | 670/220 |
X2/Z2 axis travel | mm | 600/270 |
X1/Z1/X2/Z2 axis servo motor power | kw | 1.3/0.85 |
Square tool holder | mm | 16×16 |
Round hole tool holder | mm | Ф20 |
Sub-spindle barrel clamp type | 163E push forward type | |
Guide type | Linear guideway | |
X/Z axis fast moving speed | m/min | 24/24 |
Hydraulic station motor power | kw | 1.5 |
Pump motor power | w | 750 |
Machine power | kw | 17 |
Net weight | kg | 4500 |
Machine dimensions(LxWxH) | mm | 2700*1700*2100 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts
• Automatic feeding machine
• Product receiving device
Online Visiting
We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

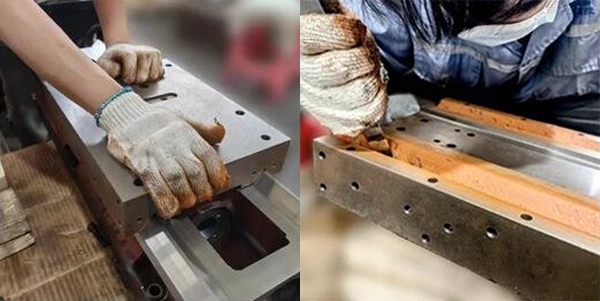

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.
We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.
Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
