DH5DII Twin Spindle Gang Tools CNC Lathe

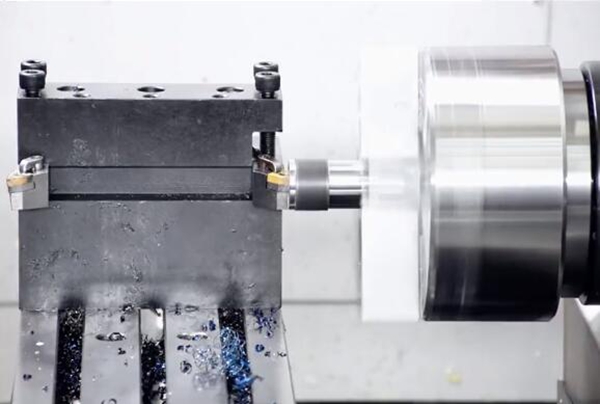

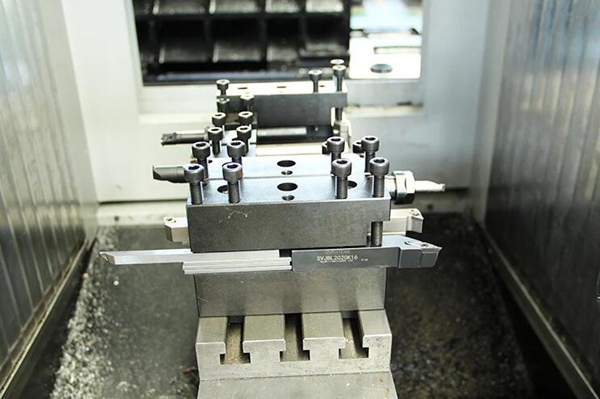

Gang Tools

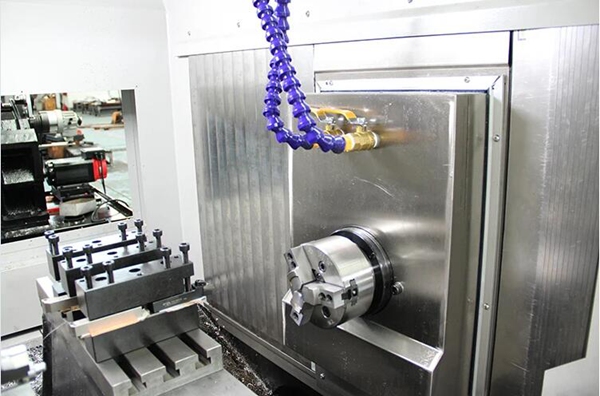

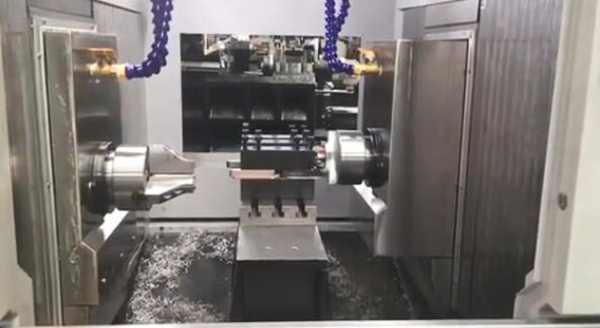

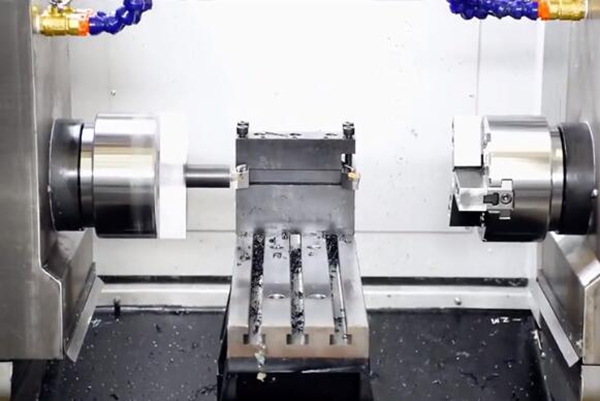

Two Spindle Work Independently.
Automatically make workpiece turn around,
two spindles can pick up the workpiece each other, improve efficiency.

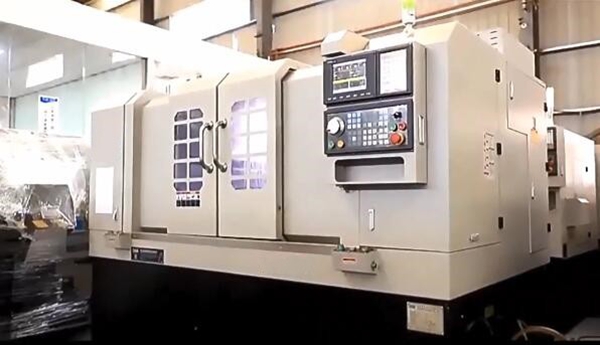

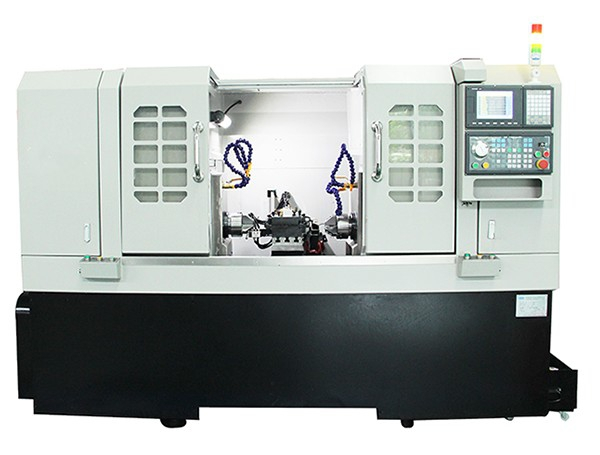

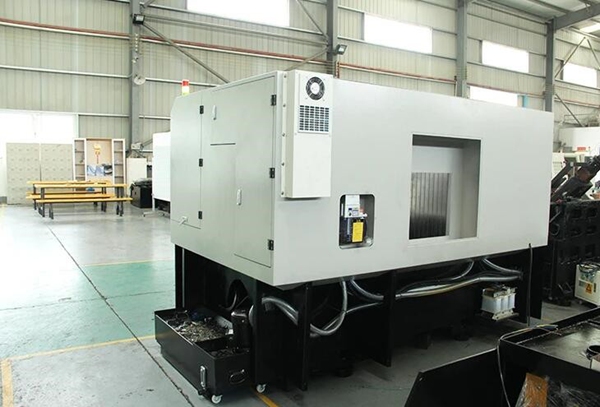

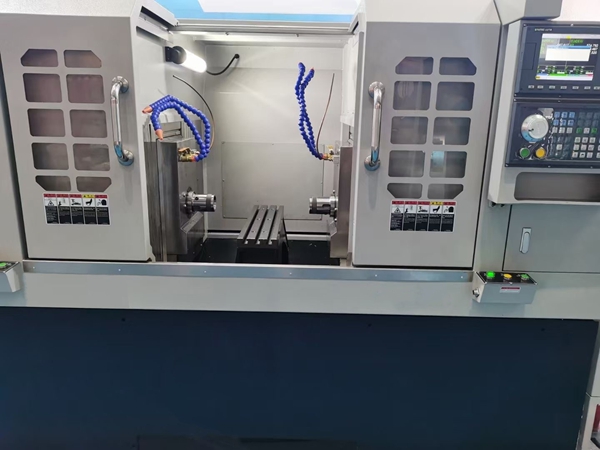

Machine Appearance
Specification of DH5DII Twin Spindle Gang Tools CNC Lathe
Model | Unit | DH5DII (Tools plate fixed) |
Max.swing diameter | mm | φ400 |
Max.turning diameter | mm | φ179 |
Max.processing length | mm | 150 |
Spindle nose | A2-4(36 type) | |
Sub-spindle nose | A2-4(36 type) | |
Tool holder center height | mm | 90 |
Spindle speed | r/min | 0-4500 |
Spindle/Sub-spindle bore | mm | Ф46/Ф46 |
Spindle/Sub-spindle motor power | kw | 5.5/5.5 (electric spindle) |
Tool installation | Gang tools | |
X1/Z1 axis travel | mm | 800/200 |
X2/Z2 axis travel | mm | 800/200 |
X1/Z1 axis servo motor power | kw | 0.85/0.85 |
X2/Z2 axis servo motor power | kw | 0.85/0.85 |
Square tool holder | mm | 20×20 |
Round hole tool holder | mm | Ф20 |
Sub-spindle barrel clamp type | 163E push forward type | |
Guide type | Linear guideway | |
X/Z axis fast moving speed | m/min | 24/24 |
Hydraulic station motor power | kw | 1.5 |
Pump motor power | w | 750 |
Machine power | kw | 19 |
Net weight | kg | 4500 |
Machine dimensions(LxWxH) | mm | 3000*1600*2000 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, Syntec etc
• Tool setter
• German INA/REXROTH parts

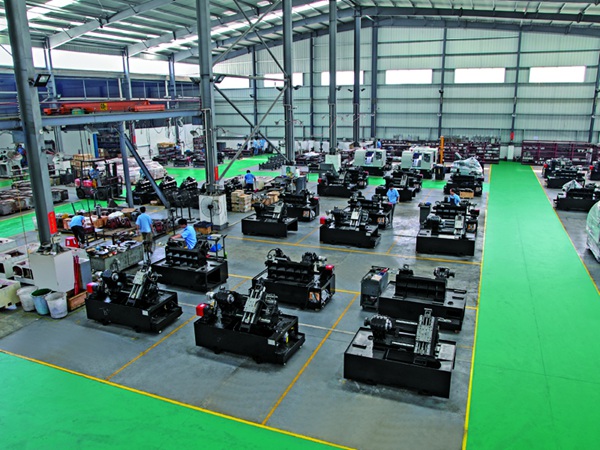

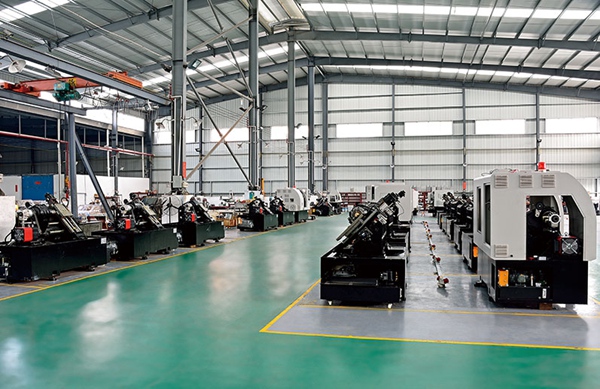

Online Visiting
We are the CNC Lathe Manufacturer and Service Provider, more than 30 patents,
ISO, CE, SGS, EGC, EAC etc Certification.

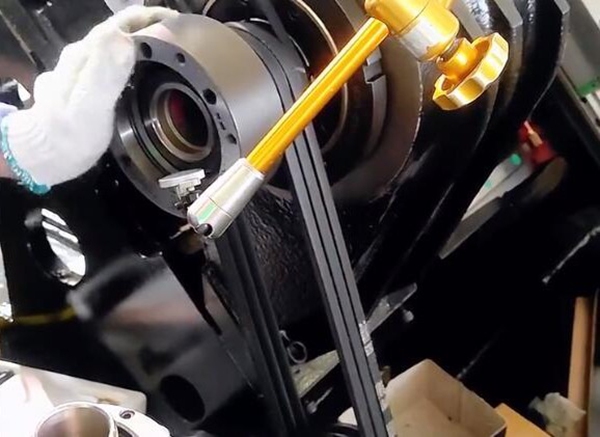

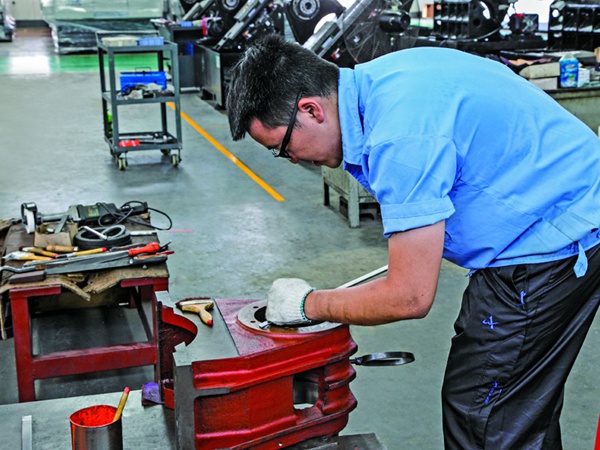

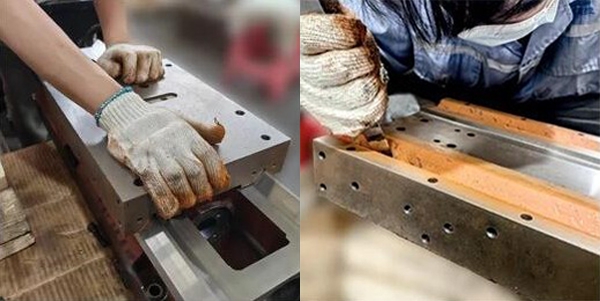

Hand Scraping increase CNC Lathe Precision, Longer service life and More Stable.

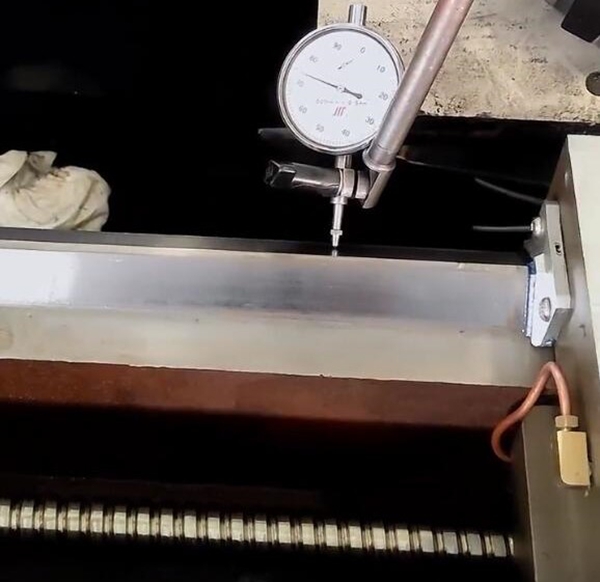

We carefully inspect every detail and regard accuracy as our mission.
QC inspectors 6, R&D Top Engineer 8.

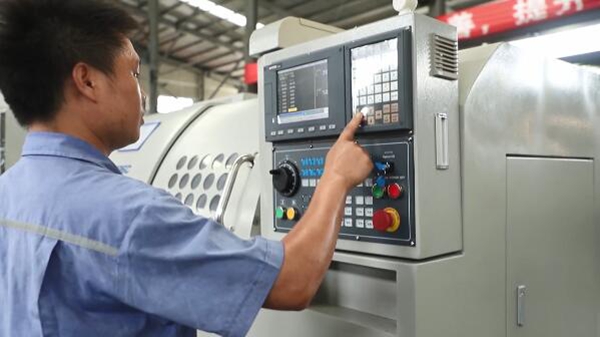

Our experienced senior engineers are proficient in operating dual spindle and dual channel CNC lathes.
Talent and Technology are our competitiveness.
We provide reliable machine and processing suggestion for overseas customers.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer’s workpiece need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
(4) Training as per customer need.
