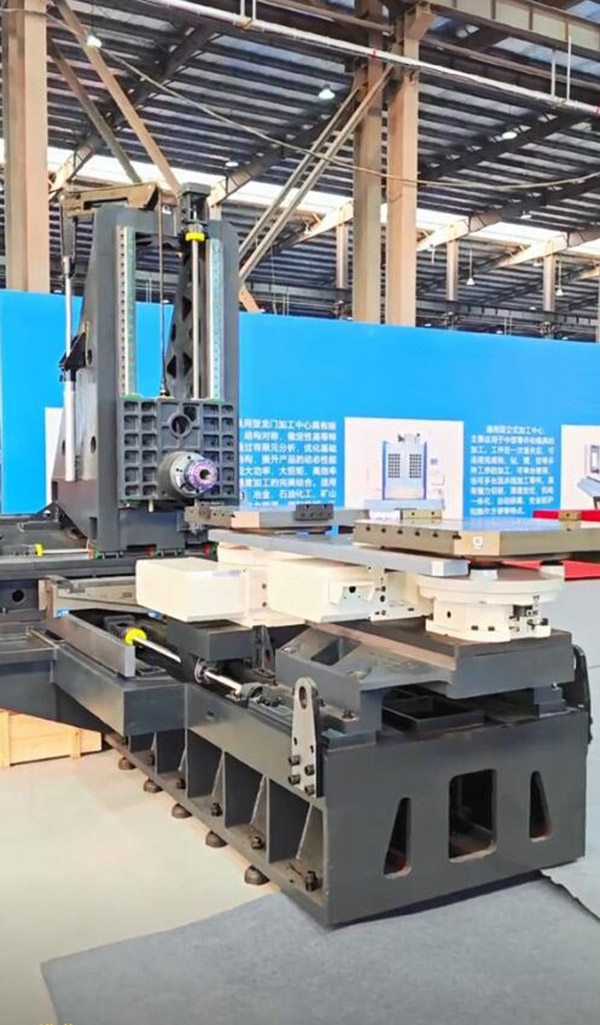

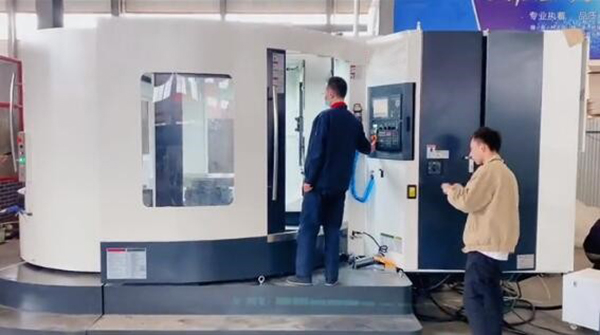

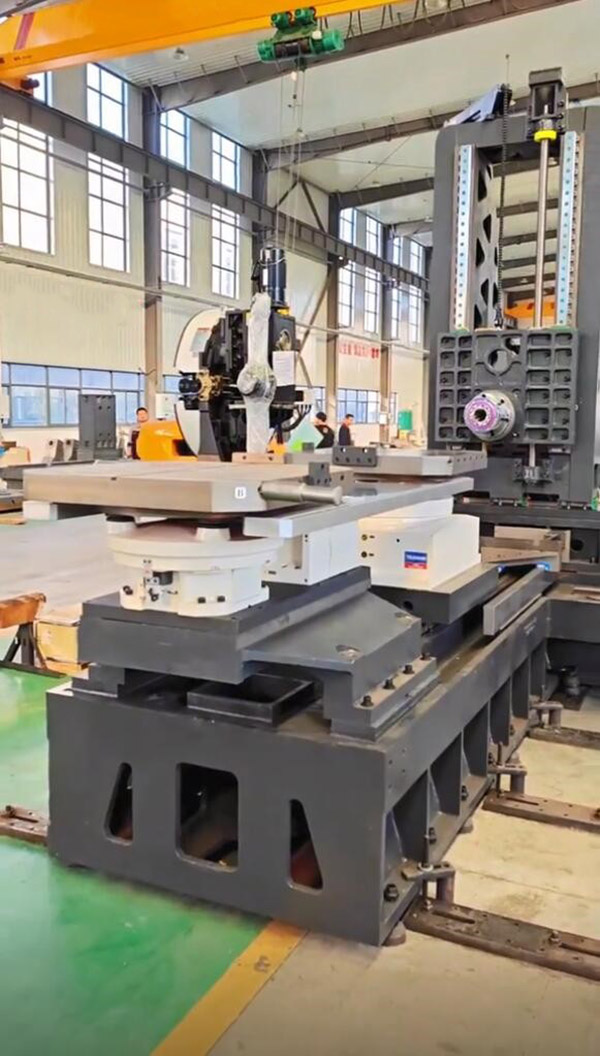

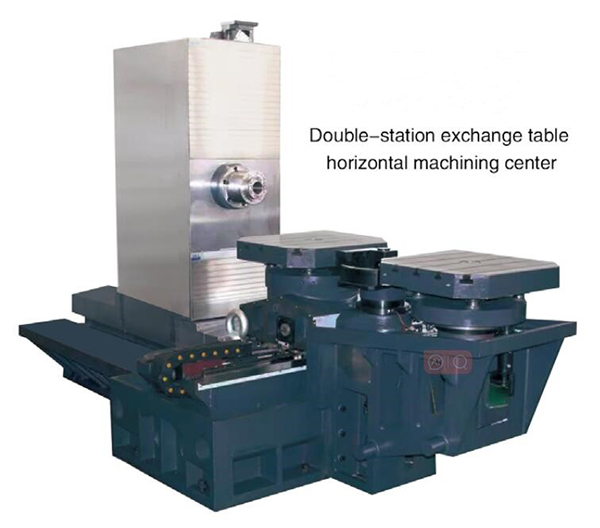

HMD630S/800S Double Table Horizontal Machining Centre

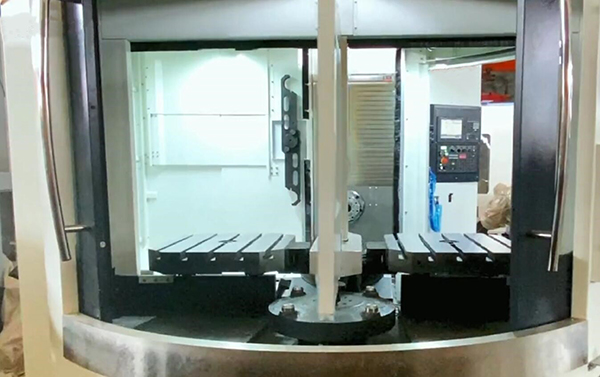

Two Worktables Can Exchanged
Specification
Model (Horizontal Machining Center) | HM630 | HM800 | HM1000 | HR63 | CR1814 | |
Table size (L x W) | mm | 630*700 | 800*800 | 1000*1000 | 1360*700/630*700 | 2000*900 |
Worktable quantity | pcs | 1 | 1 | 1 | 1 | 1 |
Worktable index | ° | 1°*360 | 1°*360 | 1°*360 | 1°*360 | 1°*360 |
Table transmission ratio | 240 | 240 | 240 | 240 | 240 | |
Max.table loading capacity | kg | 950 | 1500 | 1500 | 950 | 1600 |
Table surface type | mm | T-slot | T-slot | T-slot | T-slot | T-slot |
Max workpiece turning dia. | mm | 1250 | 1830 | 1830 | 1000 | 1800 |
X travel (table left and right travel) | mm | 1050 | 1300 | 1600 | 1200 | 1800 |
Y travel (spindle up and down travel) | mm | 750 | 1000 | 1000 | 900 | 1400 |
Z travel (table front and back travel) | mm | 900 | 1000 | 1000 | 700 | 900 |
Distance from spindle center to table surface | mm | 120-870 | 120-1120 | 120-1120 | -90-810(75-975) | 20-1420 |
Distance between spindle nose and worktable center | mm | 130-1030 | 200-1200 | 200-1200 | 165-865 | 200-1100 |
Spindle bore taper | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | |
Spindle speed | r/min | 20-6000 | 20-6000 | 20-6000 | 20-6000 | 20-6000 |
Tool type | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | |
Rivet type | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 |
Note: Parameters can be customized according to customer requirements
If the Parameter you need not in list, pls contact with us
Optional Configuration
• CNC control Siemens, Fanuc, etc
• Spindle speed 8000/10000/12000rpm
• Linear or box hard rail

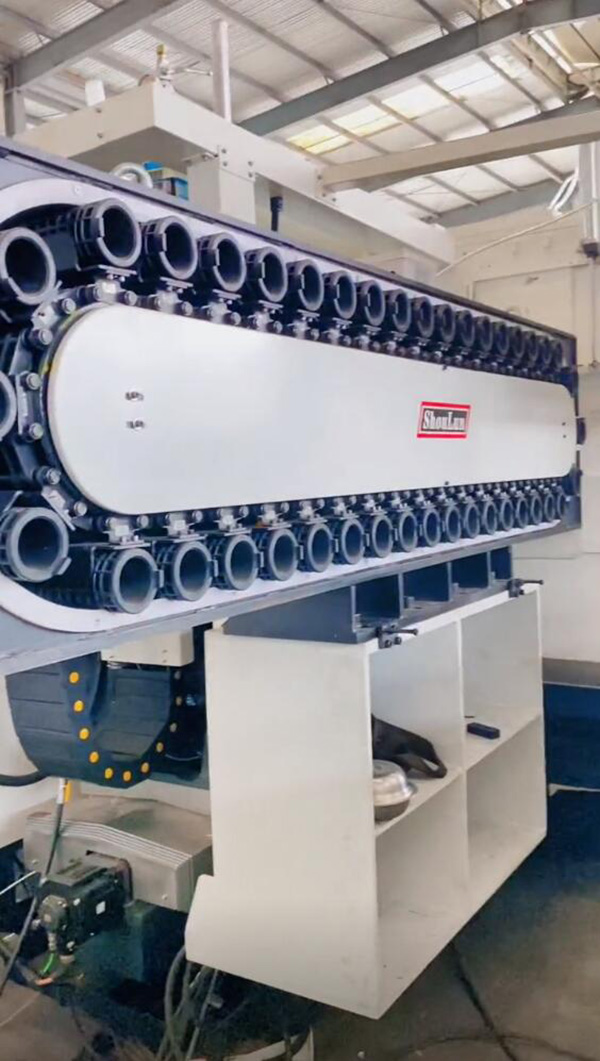

• Hydraulic ATC
• Rotary worktable
• Others
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
