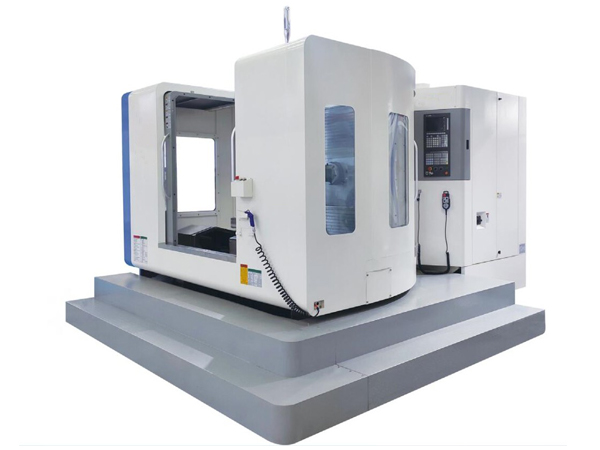

HM800 CNC Horizontal Machine Center Price

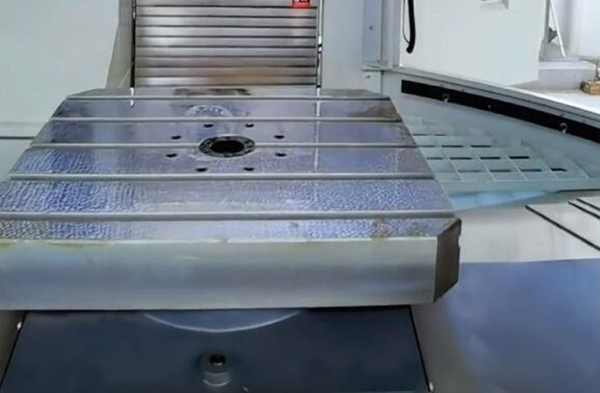

Worktable Trough Hand Scraping to Enlarge Contact Area, Improve Stability.

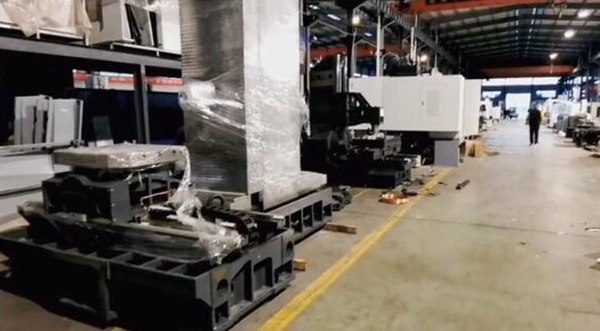

Below Horizontal Machine Center is 800 Model,
This Customer just booked this year, after using several months,
purchased the second 800 model again.

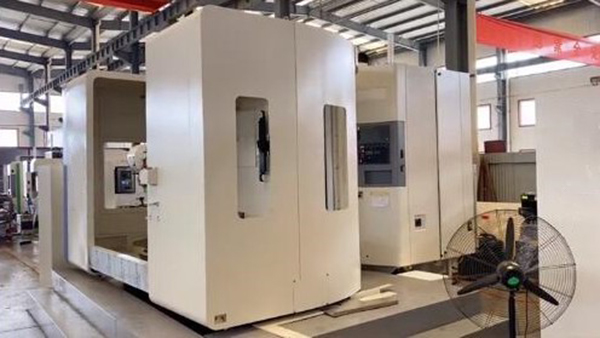

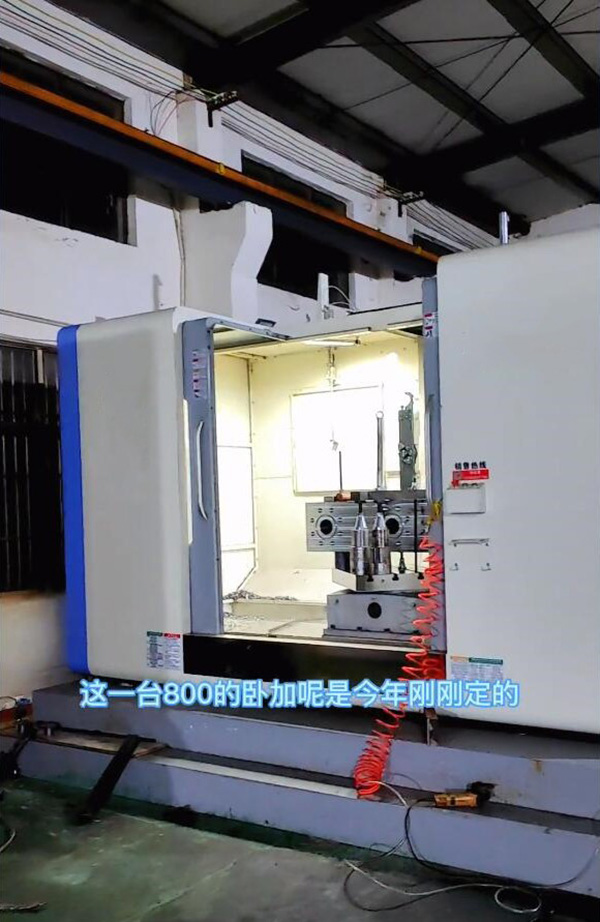

(First 800 model is processing parts in customer’s plant)

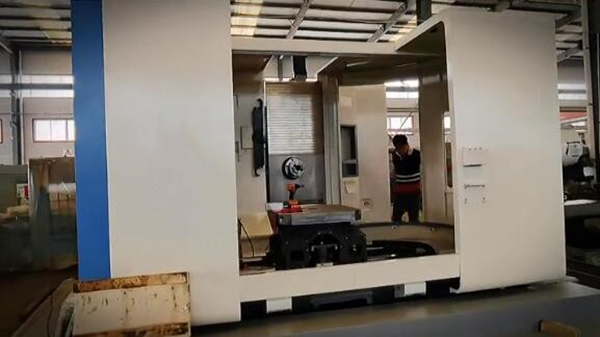

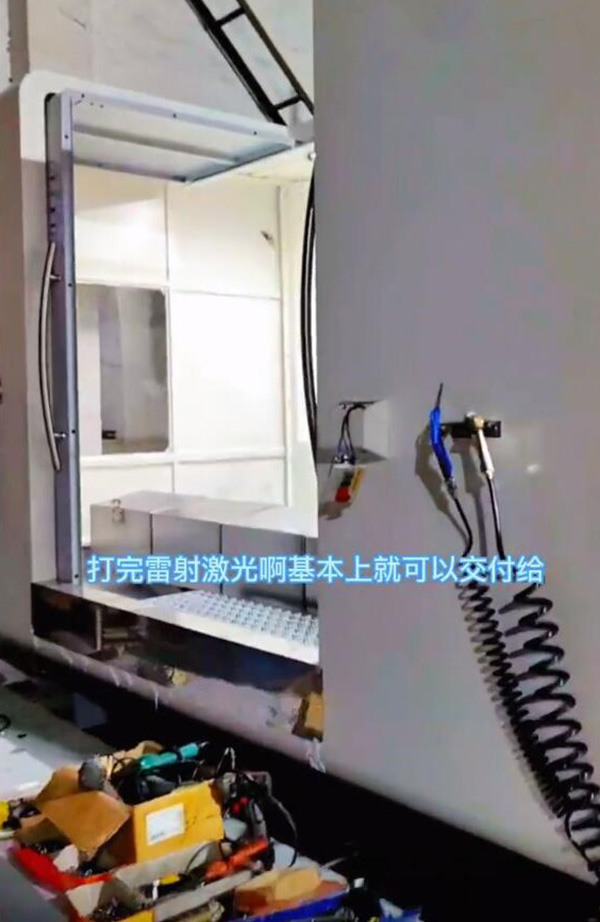

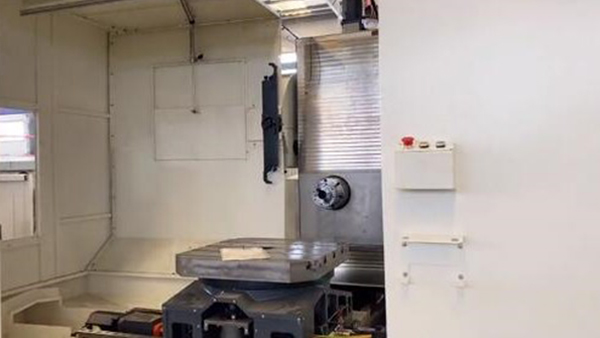

(Second 800 model is in installation, after laser detection, will give customer to use)
(Second 800 model--gear head spindle)

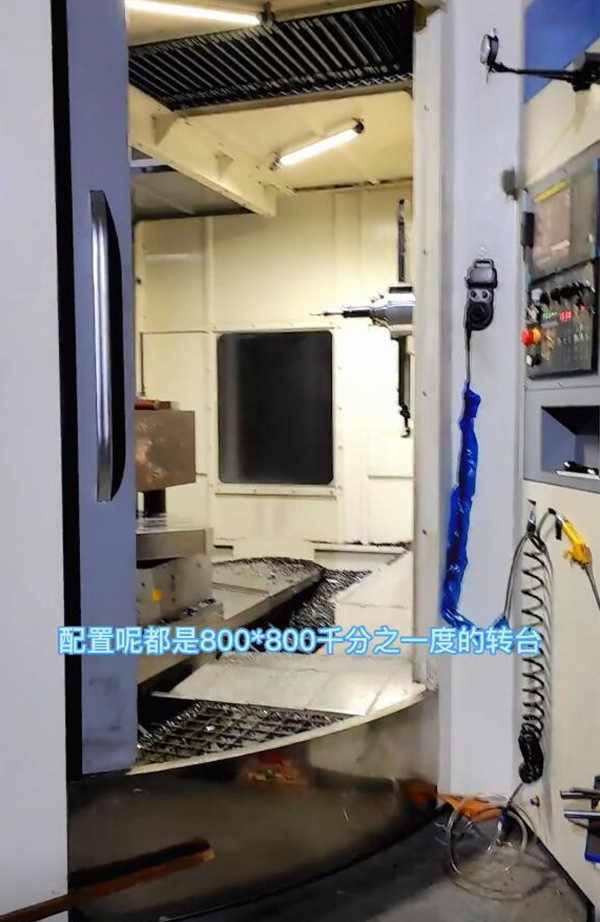

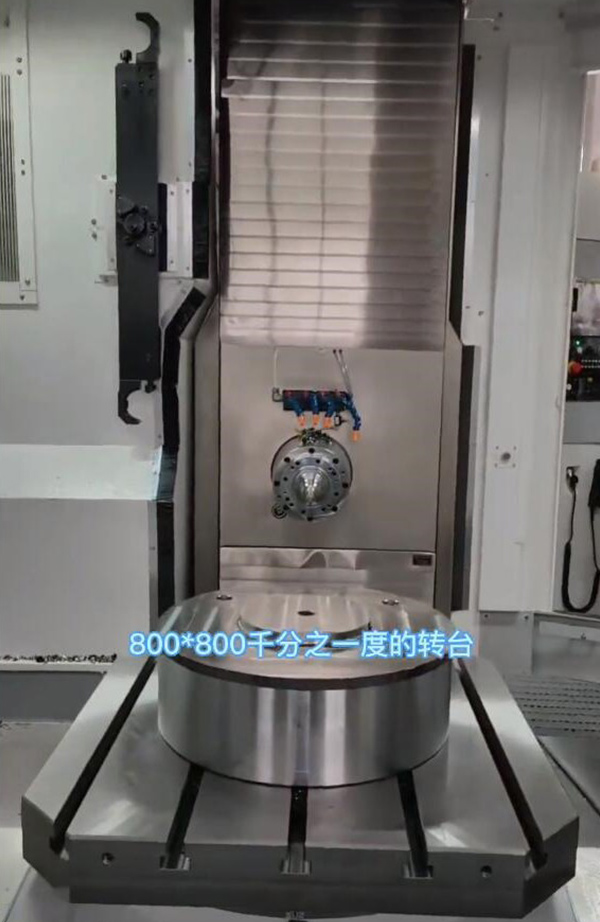

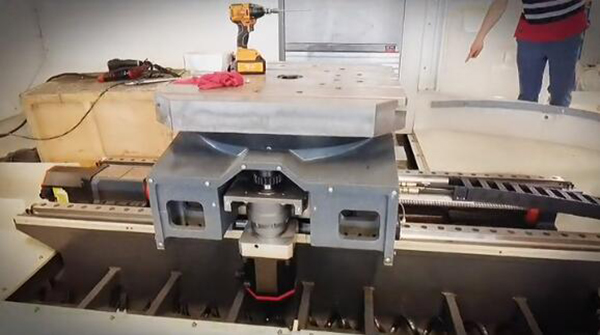

(second 800 model--worktable 800*800, 0.001º )
Specification
Model (Horizontal Machining Center) | HM630 | HM800 | HM1000 | HR63 | CR1814 | |
Table size (L x W) | mm | 630*700 | 800*800 | 1000*1000 | 1360*700/630*700 | 2000*900 |
Worktable quantity | pcs | 1 | 1 | 1 | 1 | 1 |
Worktable index | ° | 1°*360 | 1°*360 | 1°*360 | 1°*360 | 1°*360 |
Table transmission ratio | 240 | 240 | 240 | 240 | 240 | |
Max.table loading capacity | kg | 950 | 1500 | 1500 | 950 | 1600 |
Table surface type | mm | T-slot | T-slot | T-slot | T-slot | T-slot |
Max workpieceturning dia. | mm | 1250 | 1830 | 1830 | 1000 | 1800 |
X travel (table left and right travel) | mm | 1050 | 1300 | 1600 | 1200 | 1800 |
Y travel (spindle up and down travel) | mm | 750 | 1000 | 1000 | 900 | 1400 |
Z travel (table front and back travel) | mm | 900 | 1000 | 1000 | 700 | 900 |
Distance from spindle center to table surface | mm | 120-870 | 120-1120 | 120-1120 | -90-810(75-975) | 20-1420 |
Distance between spindle nose and worktable center | mm | 130-1030 | 200-1200 | 200-1200 | 165-865 | 200-1100 |
Spindle bore taper | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | |
Spindle speed | r/min | 20-6000 | 20-6000 | 20-6000 | 20-6000 | 20-6000 |
Tool type | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | |
Rivet type | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, etc
• Spindle speed 8000/10000/12000rpm
• Linear or box hard rail
• Hydraulic ATC
• Rotary worktable
• Others
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
