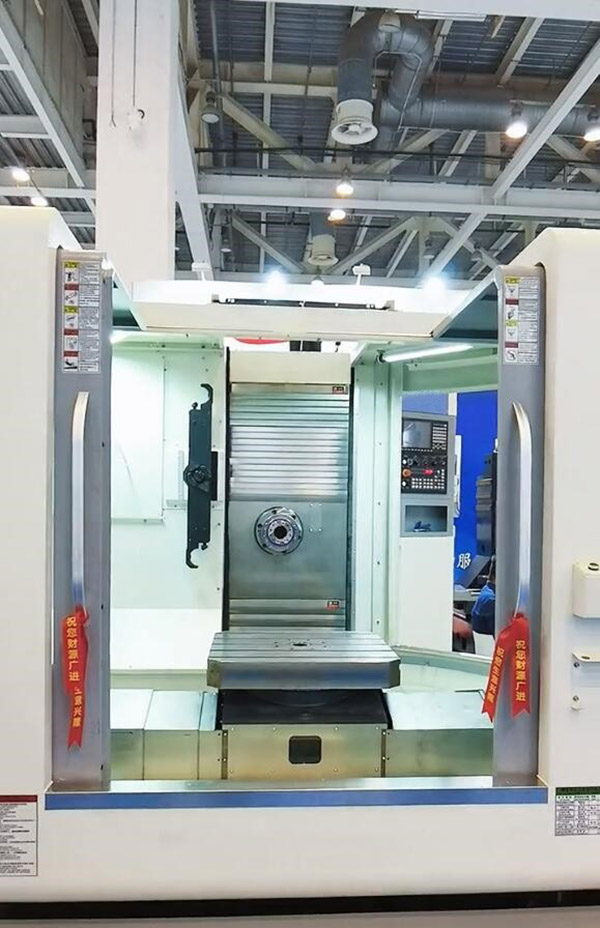

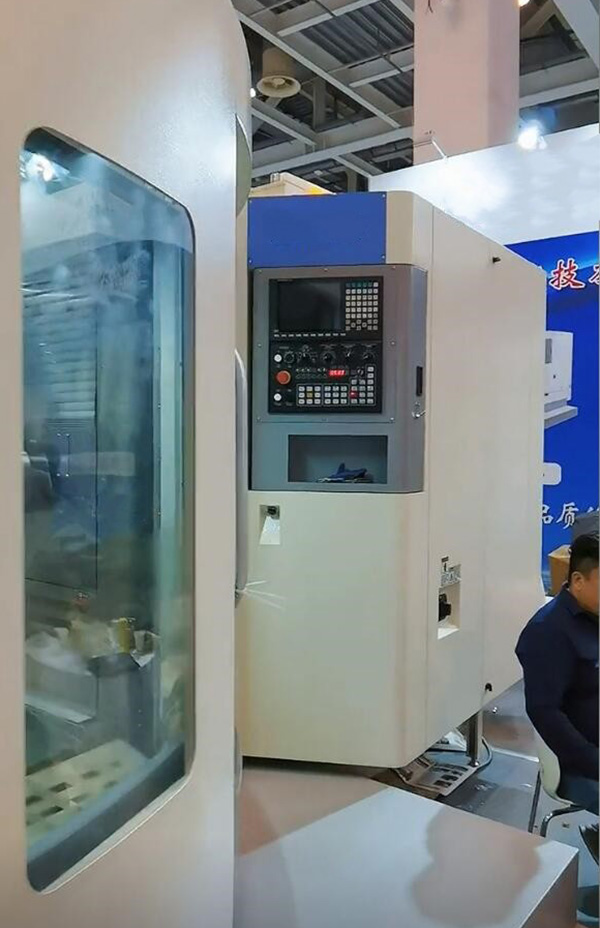

HM630 HMC Machine

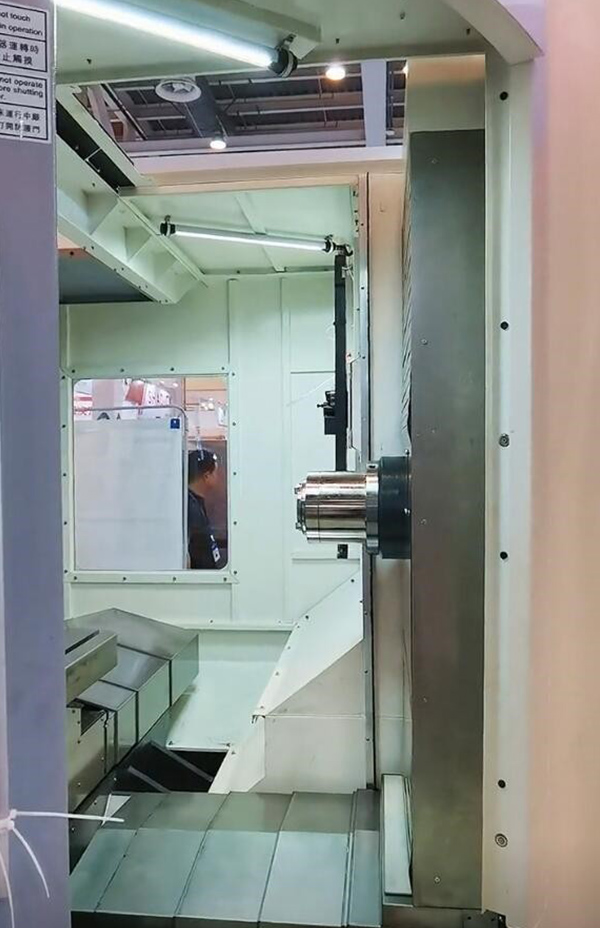

BT50/190 Spindle

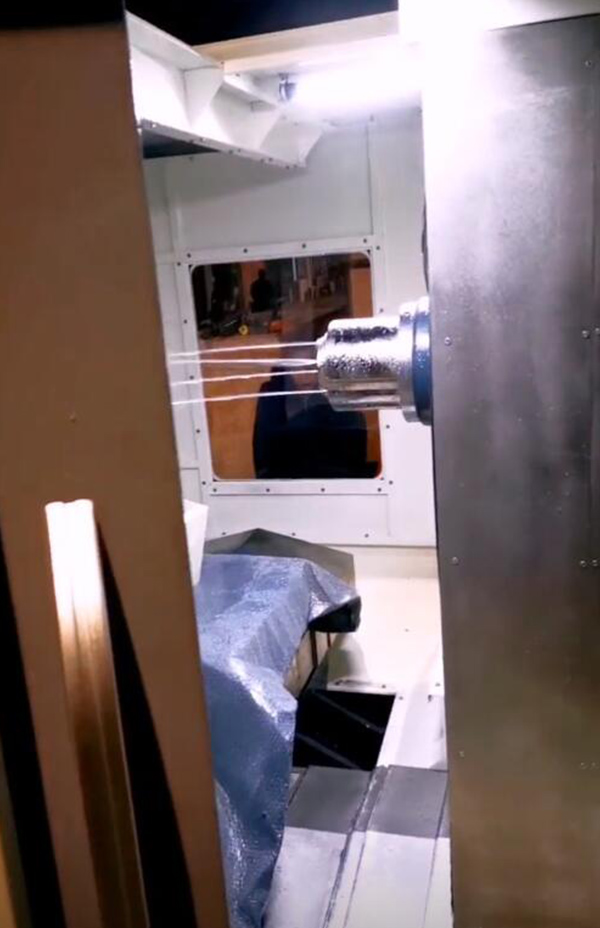

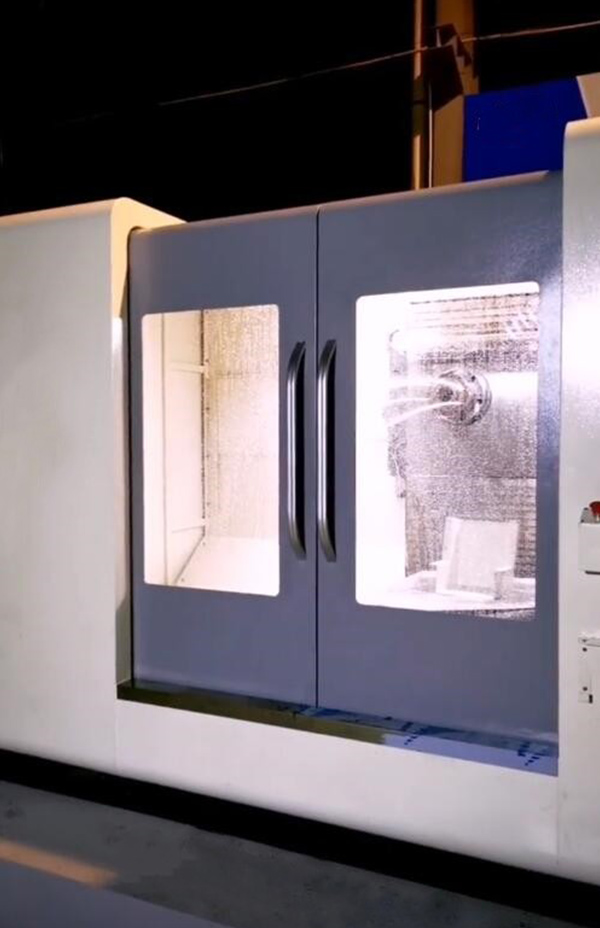

Water Output From Spindle

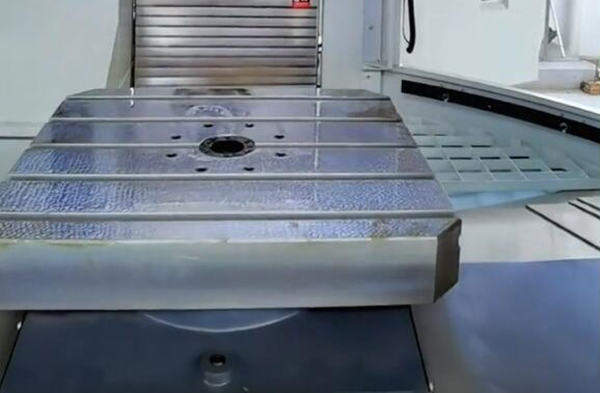

Worktable Trough Hand Scraping to Enlarge Contact Area, Improve Stability.

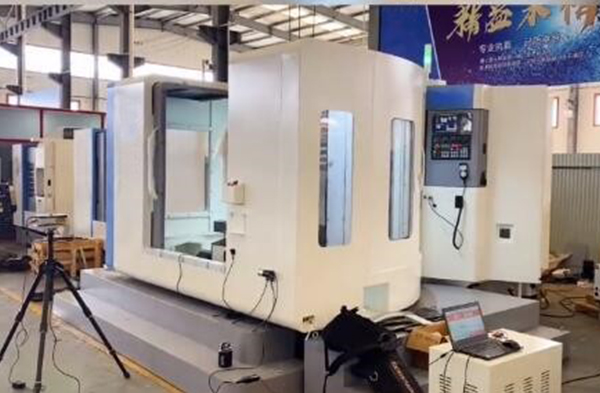

Laser Interferometer Detection for Each Machine Before Delivery.

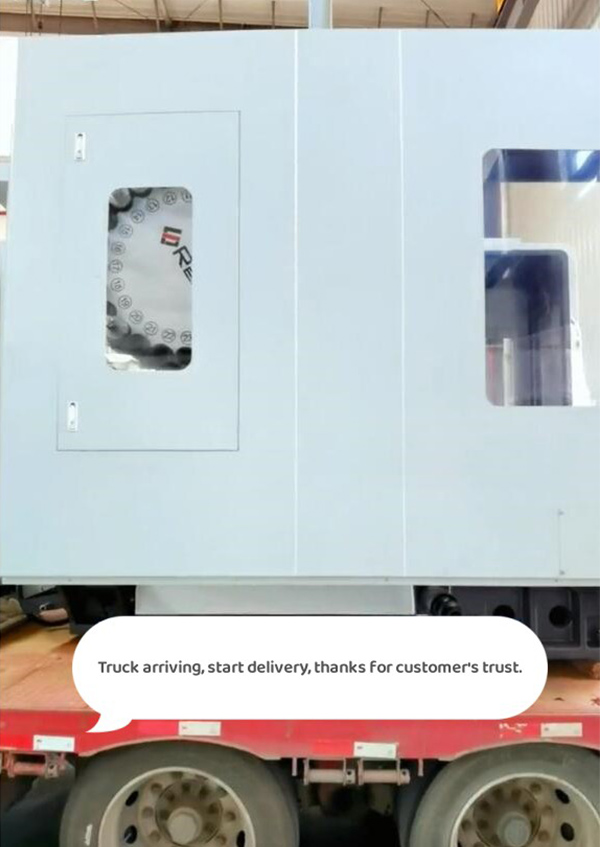

Online Visiting for Delivery

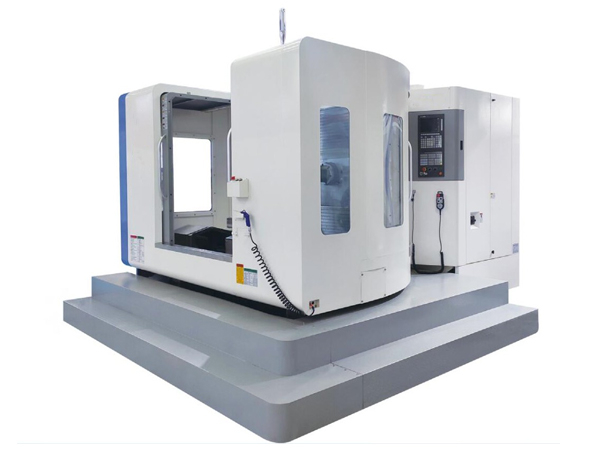

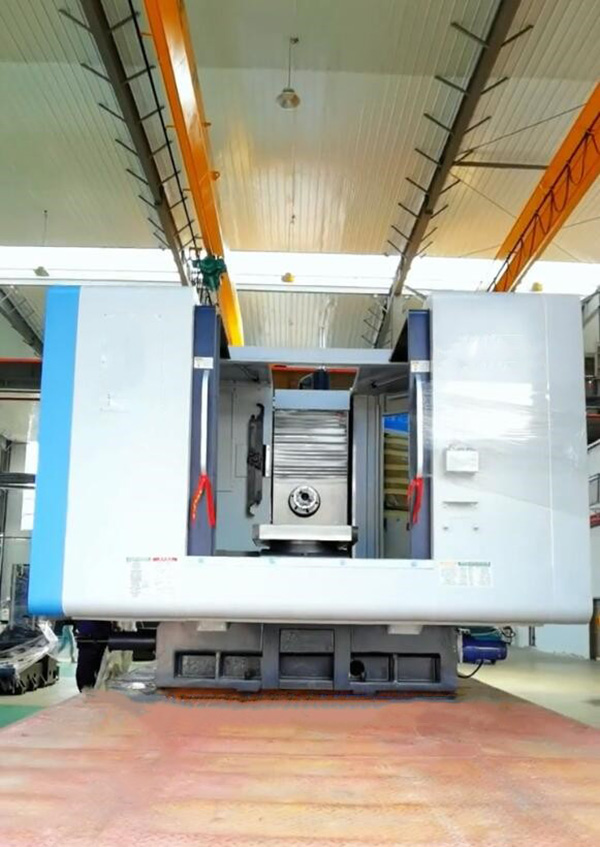

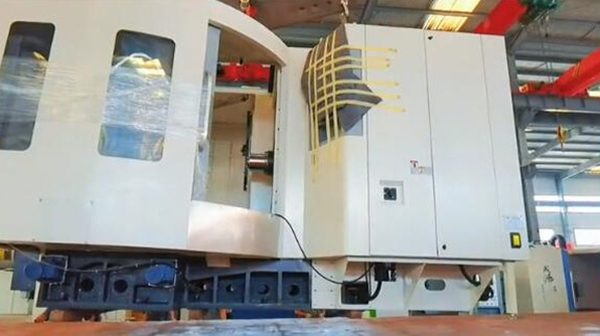

This is 630 Type HMC. 3 axis All Linear Guideways. Preparing Delivery.

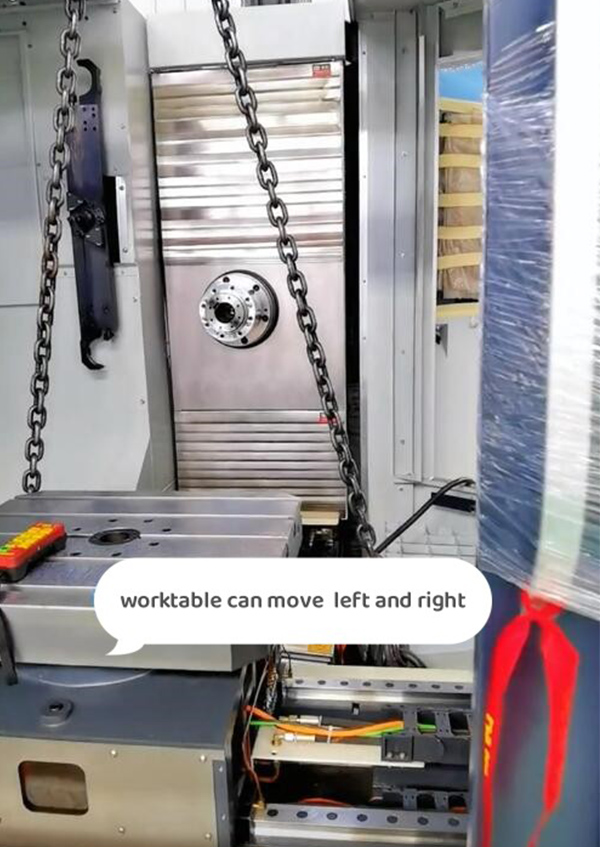

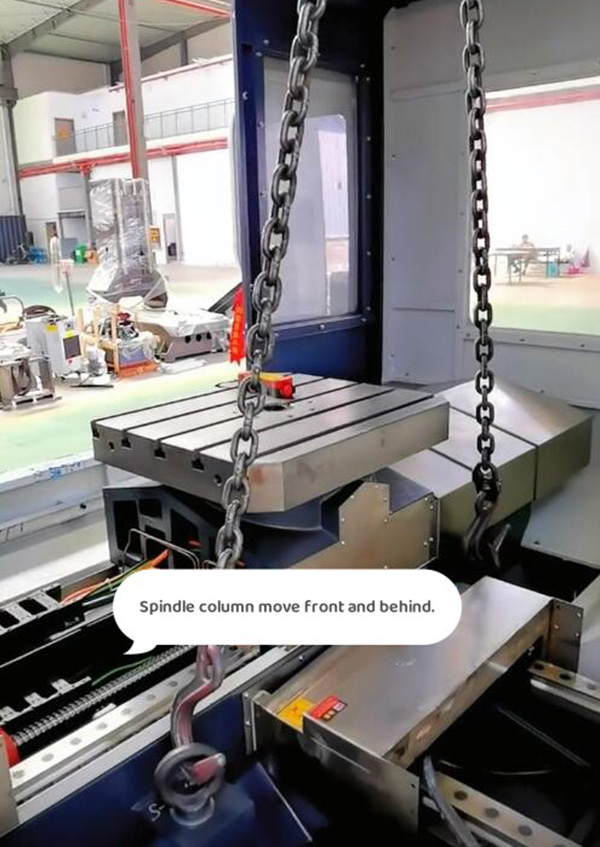

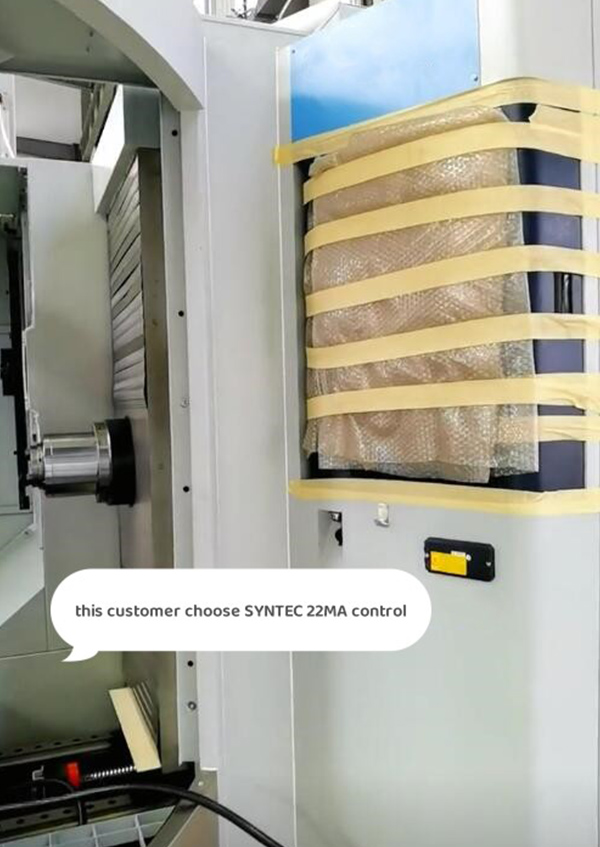

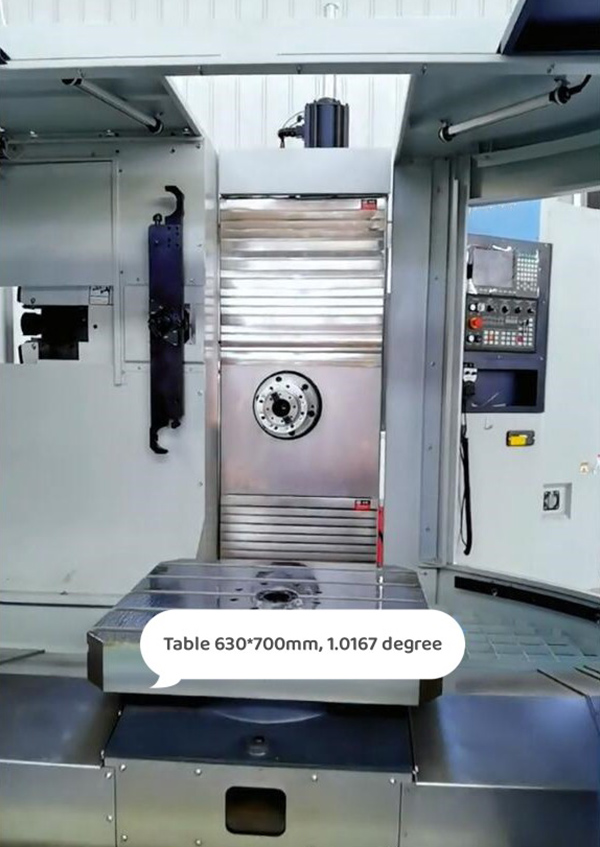

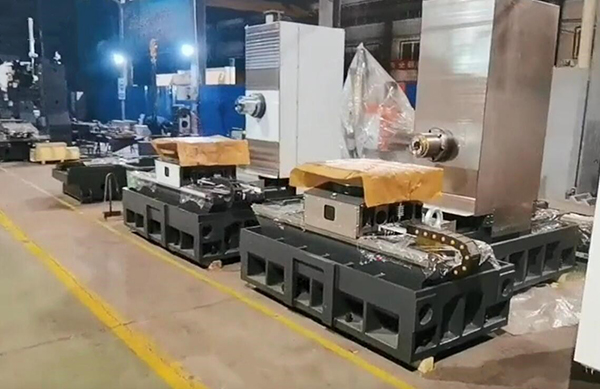

Pls See Inner Structure.

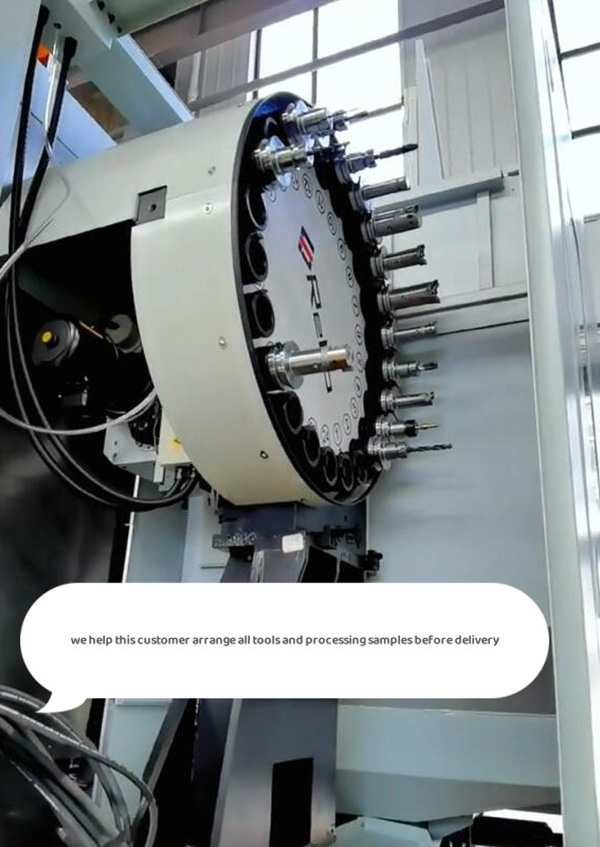

We Help This Customer Arrange All Tools and Processing Samples Before Delivery
Specification
Model (Horizontal Machining Center) | HM630 | HM800 | HM1000 | HR63 | CR1814 | |
Table size (L x W) | mm | 630*700 | 800*800 | 1000*1000 | 1360*700/630*700 | 2000*900 |
Worktable quantity | pcs | 1 | 1 | 1 | 1 | 1 |
Worktable index | ° | 1°*360 | 1°*360 | 1°*360 | 1°*360 | 1°*360 |
Table transmission ratio | 240 | 240 | 240 | 240 | 240 | |
Max.table loading capacity | kg | 950 | 1500 | 1500 | 950 | 1600 |
Table surface type | mm | T-slot | T-slot | T-slot | T-slot | T-slot |
Max workpiece turning dia. | mm | 1250 | 1830 | 1830 | 1000 | 1800 |
X travel (table left and right travel) | mm | 1050 | 1300 | 1600 | 1200 | 1800 |
Y travel (spindle up and down travel) | mm | 750 | 1000 | 1000 | 900 | 1400 |
Z travel (table front and back travel) | mm | 900 | 1000 | 1000 | 700 | 900 |
Distance from spindle center to table surface | mm | 120-870 | 120-1120 | 120-1120 | -90-810(75-975) | 20-1420 |
Distance between spindle nose and worktable center | mm | 130-1030 | 200-1200 | 200-1200 | 165-865 | 200-1100 |
Spindle bore taper | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 | |
Spindle speed | r/min | 20-6000 | 20-6000 | 20-6000 | 20-6000 | 20-6000 |
Tool type | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | MAS 403 BT50 | |
Rivet type | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 | MAS403 P50T-1 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, etc
• Spindle speed 8000/10000/12000rpm
• Linear or box hard rail
• Hydraulic ATC
• Rotary worktable
• Others
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
