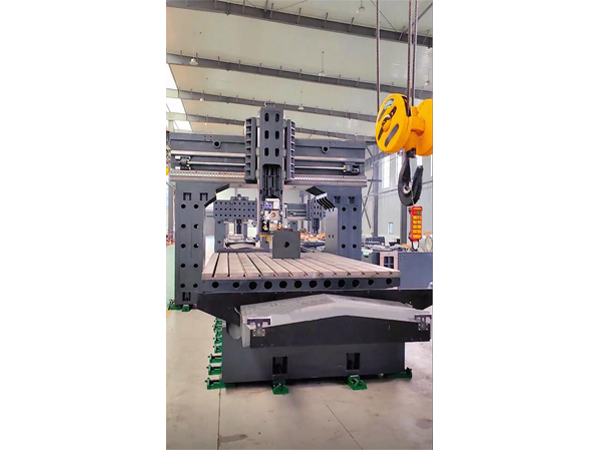

GM4028 Gantry CNC Milling Machine

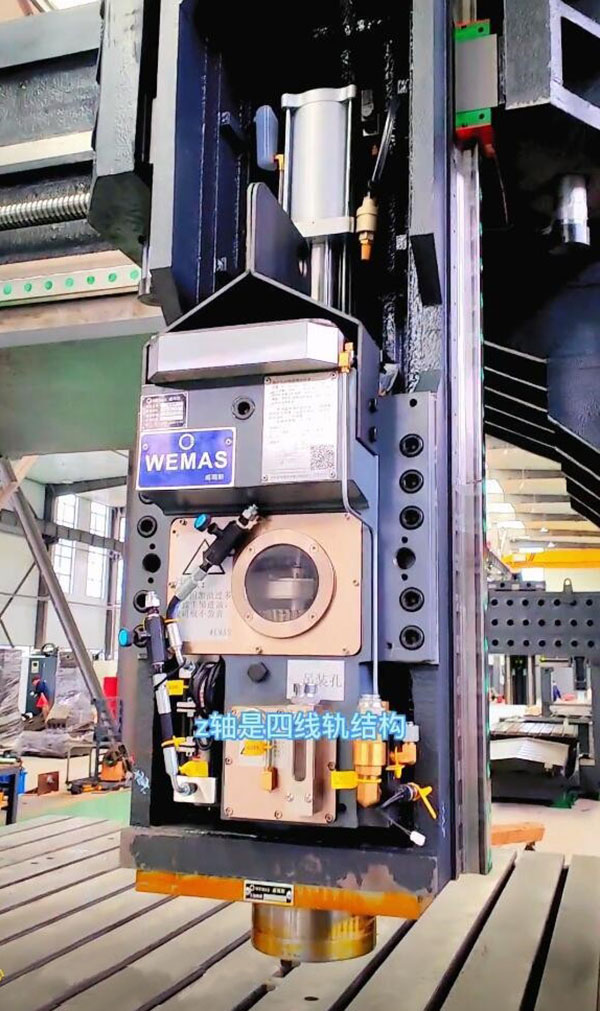

Gear head structure, WEMAS Gear box,
XYZ axis linear guideway

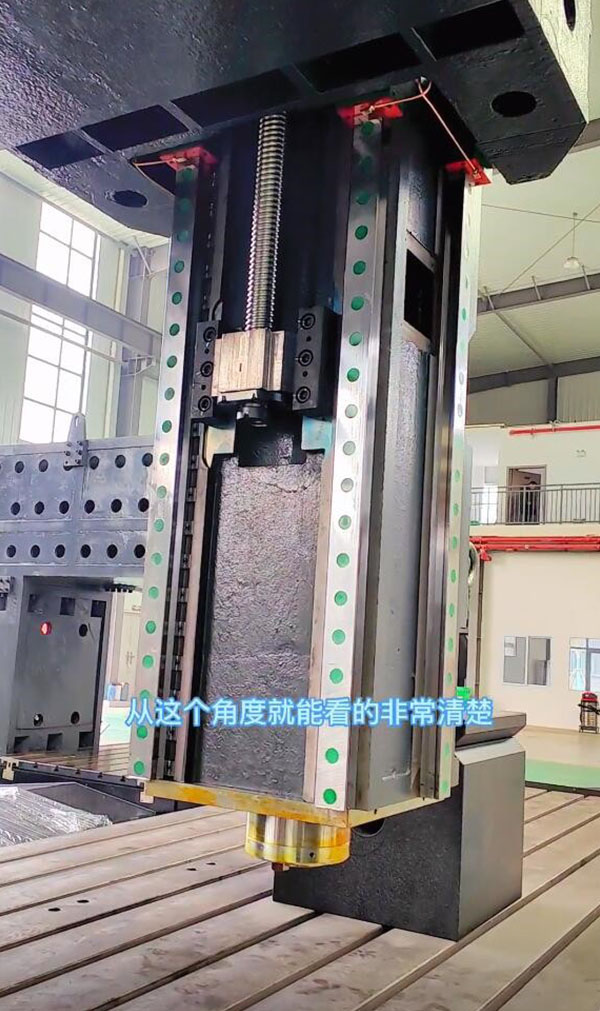

4 roller linear guideway around the spindle head, ensure high rigidity, big cutting capacity.

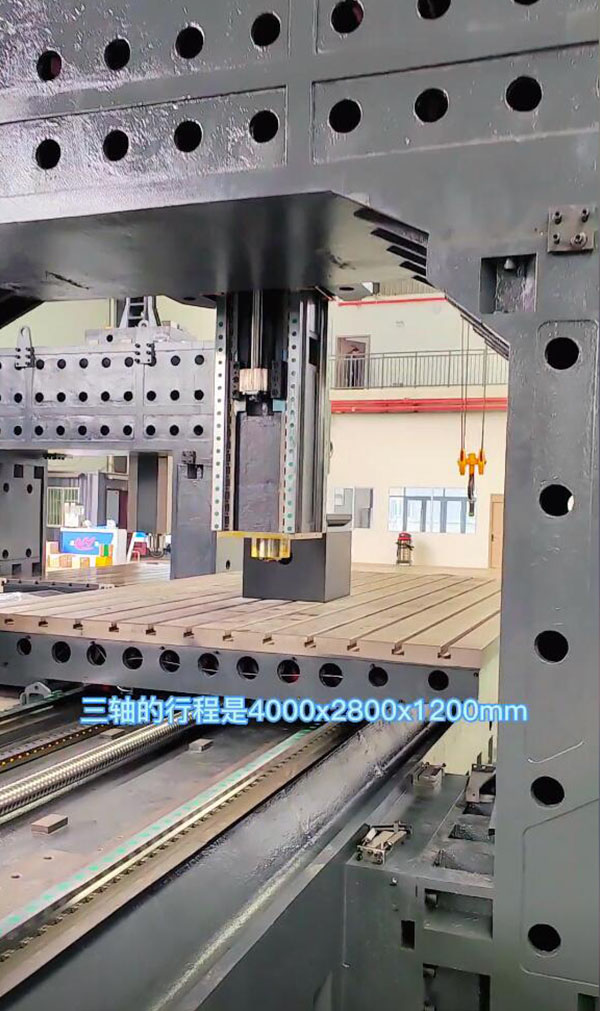

XYZ Travel 4000*2800*1200mm

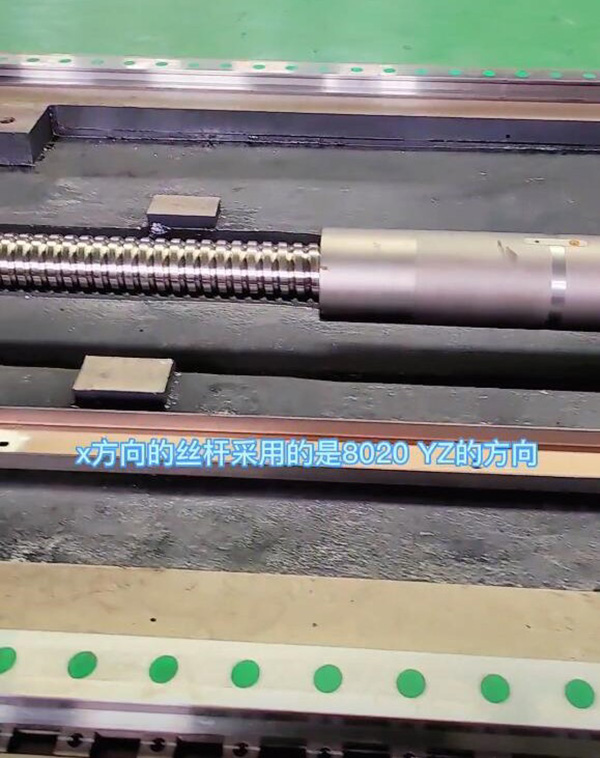

X axis ball screw 8020.

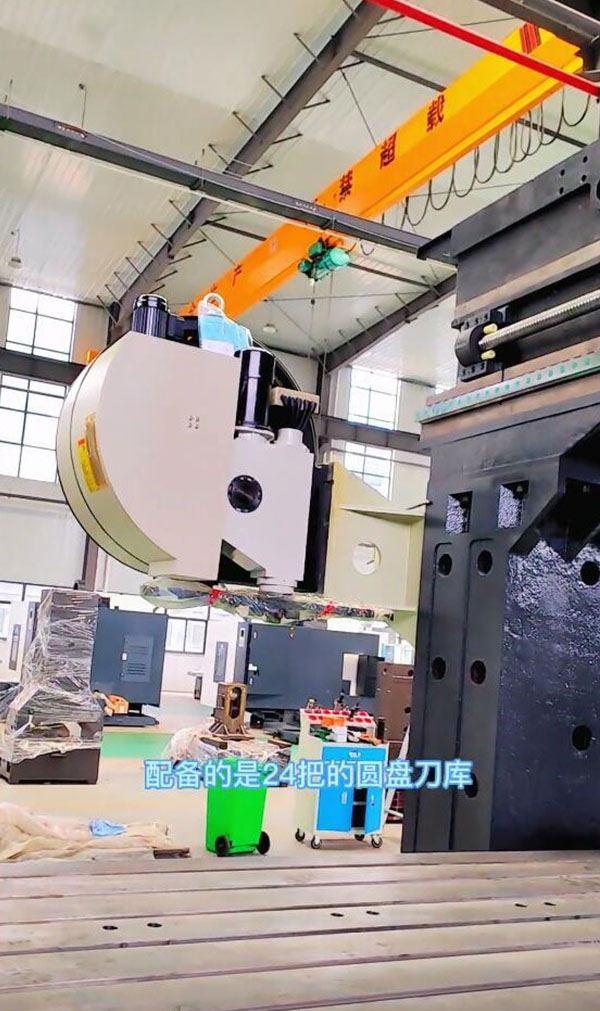

24T tool magazine
Specification
Items | Unit | GM1811 | GM2013 | GM2016 | GM2518 | GM2520 | GM3018 | GM3020 | GM3022 | GM4018 | GM4020 |
X Travel | MM | 1800 | 2000 | 2100 | 2500 | 2500 | 3000 | 3000 | 3000 | 4000 | 4100 |
Y Travel | 1100 | 1300 | 1630 | 1800 | 2000 | 1800 | 2000 | 2200 | 1800 | 2000 | |
Z Travel | 800 | 670 | 700 | 850 | 850 | 850 | 850 | 1050 | 700 | 1000 | |
Distance from spindle nose | MM | 150-950 | 140-810 | 150-850 | 200-1050 | 200-1050 | 200-1050 | 200-1050 | 200-1050 | 150-850 | 200-1200 |
Gantry door width | MM | 1100 | 1300 | 1650 | 1800 | 2000 | 1800 | 2000 | 2200 | 1850 | 2000 |
Worktable size X axis | MM | 1800 | 2000 | 2200 | 2500 | 2500 | 3000 | 3000 | 3000 | 4100 | 4000 |
Worktable size Y axis | MM | 900 | 1000 | 1400 | 1500 | 1700 | 1600 | 1600 | 2000 | 1600 | 1800 |
T-slot | MM | 5-22-165 | 5-18-175 | 7-22-170 | 9-22-185 | 9-22-185 | 9-22-185 | 9-22-185 | 9-22-185 | 5-18-140 | 9-28-185 |
Max Load of table | KG | 4000 | 4000 | 4000 | 6000 | 6000 | 4000 | 8000 | 14000 | 7000 | 14000 |
Spindle speed (belt type) | RPM | 8000 | 8000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
Spindle motor | KW | 15 | 15 | 15/18.5 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 22/26 |
Spindle Taper | BT50-155 | BT50-155 | BT40/50 | BT40/50 | BT50 | BT50 | BT50-190 | BT50-190 | BT50 | BT50-190 | |
3 axis motor | 3 axis direct-coupled | X axis reducer, YZ direct-coupled | |||||||||
Rapid movement of X/Y/Z | M/MIN | 15/15/12 | 15/15/12 | 15/15/12 | 10/10/8 | 10/10/8 | 10/10/8 | 10/10/10 | 10/10/10 | 12/12/12 | 10/10/10 |
Tool Magazine Capacity | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
Overall dimension | MM | 4680*3300*4200 | 6000*3550*4200 | 6800*3800*4350 | 6800*4200*4500 | 6800*4600*4500 | 7500*4600*4500 | 7500*4600*4500 | 7500*4600*4500 | 10650*2850*4500 | 10650*4500*5100 |
Only machine frame weight | KG | 11000 | 12000 | 17000 | 1700 | 23000 | 19000 | 27000 | 32000 | 28000 | 27000 |
Note: Parameters can be customized according to customer requirements
Note: If parameters not in this list, pls contact email.
Optional configuration
• CNC control Siemens, Fanuc, Mitsubishi, Siemens
• XYZ Linear guideway, XY linear and Z box hard way
• Automatic tool changer Disc type / Chain type
• Spindle oil cooling device
• High speed spindle(10000-15000rpm)
• Water outlet from spindle center
• Tool holder in oilway
• Oil mist
• Chain chip conveyor/spiral chip conveyor
• Disc type oil-water separator
• 4th axis
• X/Y/Z axis optical scale
• Automatic tool length measuring
• Manual/Semi-automatic right-angle head
• ZF gearbox
Details Photos:

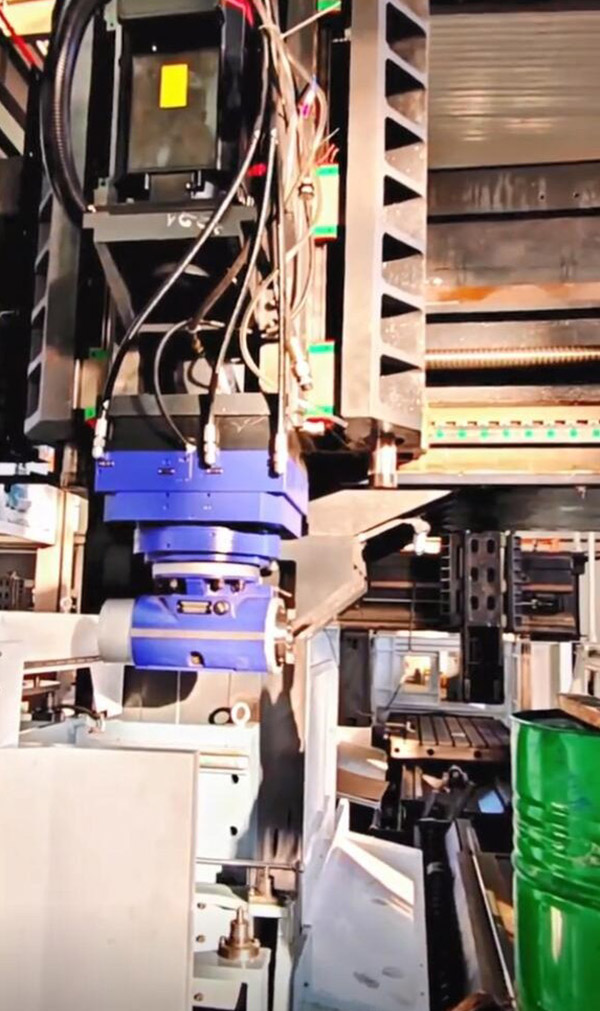

Optional automatic angle head

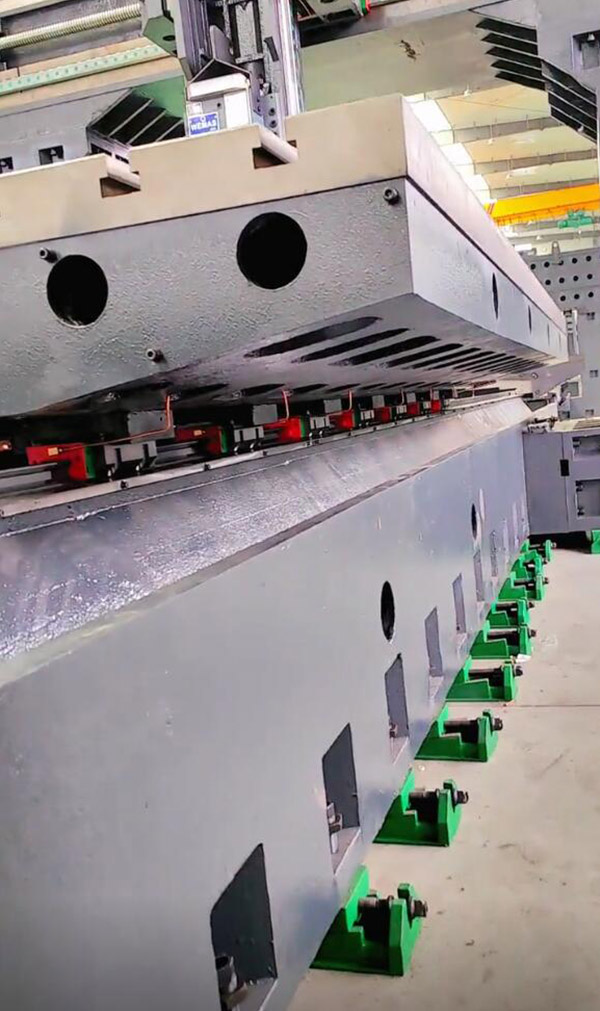

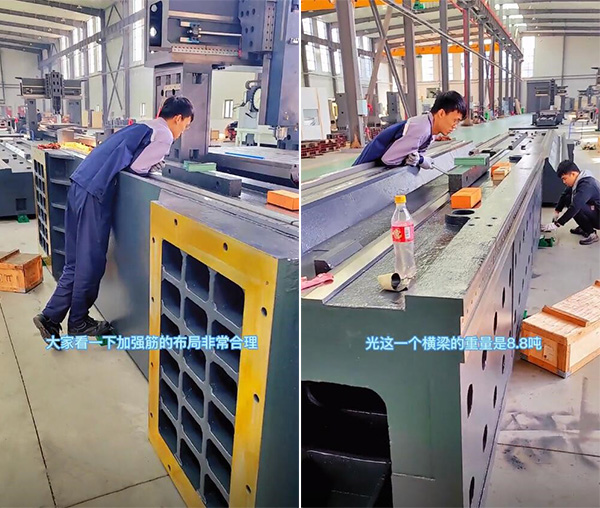

The layout of reinforcement ribs in castings is very reasonable
Only beam weight about 8.8t

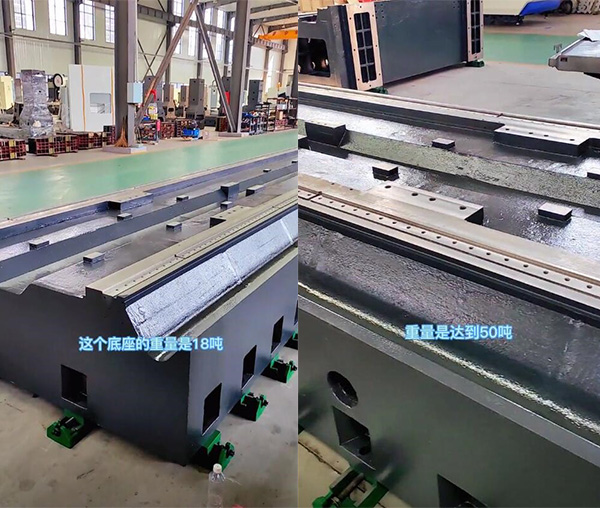

Only base weight about 18t

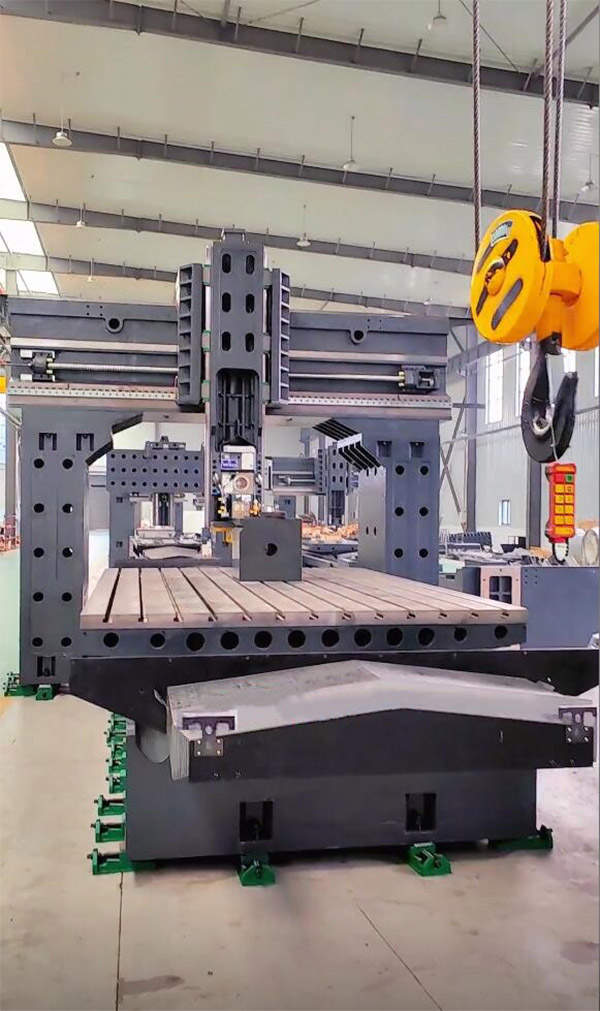

All casting weight about 50t
