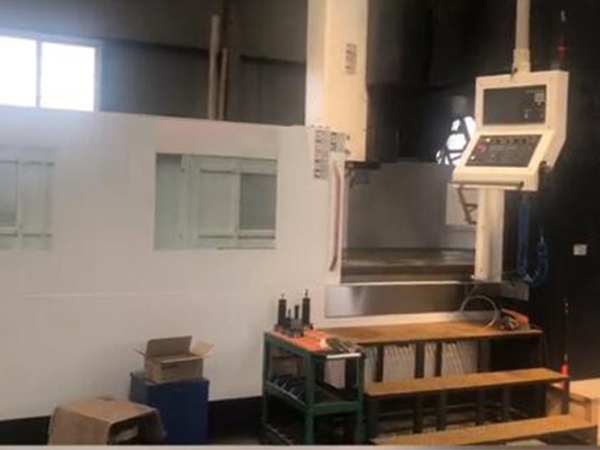

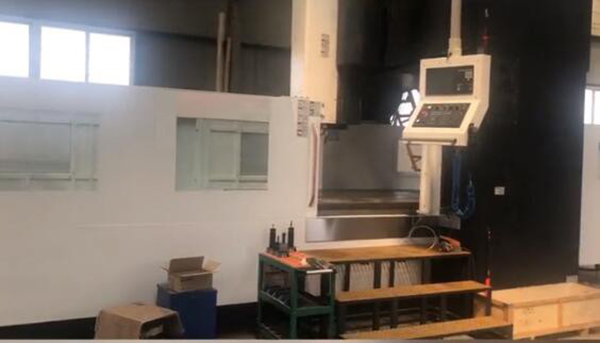

GM3022 Gantry Machine Centers

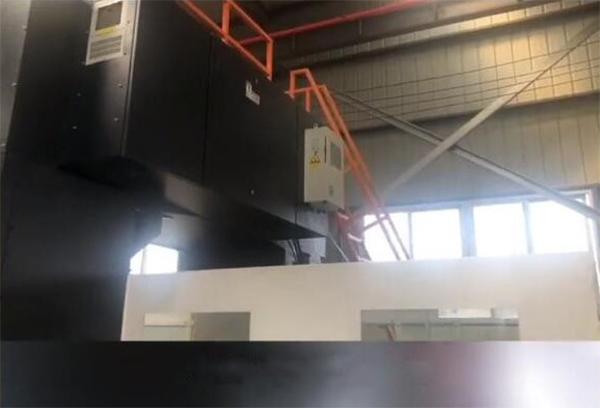

Electrical cabinet ladder
Spindle BT50/190/6000RPM
XYZ axis linear guideway

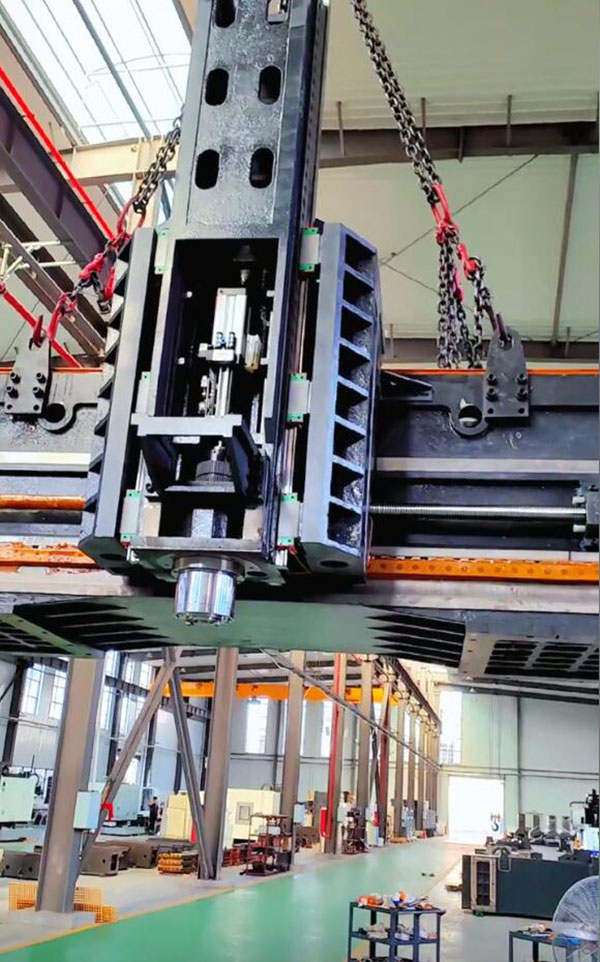

4 linear guideway around the spindle head, ensure high rigidity, big cutting capacity.
Specification
Items | Unit | GM1811 | GM2013 | GM2016 | GM2518 | GM2520 | GM3018 | GM3020 | GM3022 | GM4018 | GM4020 |
X Travel | MM | 1800 | 2000 | 2100 | 2500 | 2500 | 3000 | 3000 | 3000 | 4000 | 4100 |
Y Travel | 1100 | 1300 | 1630 | 1800 | 2000 | 1800 | 2000 | 2200 | 1800 | 2000 | |
Z Travel | 800 | 670 | 700 | 850 | 850 | 850 | 850 | 1050 | 700 | 1000 | |
Distance from spindle nose | MM | 150-950 | 140-810 | 150-850 | 200-1050 | 200-1050 | 200-1050 | 200-1050 | 200-1050 | 150-850 | 200-1200 |
Gantry door width | MM | 1100 | 1300 | 1650 | 1800 | 2000 | 1800 | 2000 | 2200 | 1850 | 2000 |
Worktable size X axis | MM | 1800 | 2000 | 2200 | 2500 | 2500 | 3000 | 3000 | 3000 | 4100 | 4000 |
Worktable size Y axis | MM | 900 | 1000 | 1400 | 1500 | 1700 | 1600 | 1600 | 2000 | 1600 | 1800 |
T-slot | MM | 5-22-165 | 5-18-175 | 7-22-170 | 9-22-185 | 9-22-185 | 9-22-185 | 9-22-185 | 9-22-185 | 5-18-140 | 9-28-185 |
Max Load of table | KG | 4000 | 4000 | 4000 | 6000 | 6000 | 4000 | 8000 | 14000 | 7000 | 14000 |
Spindle speed (belt type) | RPM | 8000 | 8000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
Spindle motor | KW | 15 | 15 | 15/18.5 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 | 22/26 |
Spindle Taper | BT50-155 | BT50-155 | BT40/50 | BT40/50 | BT50 | BT50 | BT50-190 | BT50-190 | BT50 | BT50-190 | |
3 axis motor | 3 axis direct-coupled | X axis reducer, YZ direct-coupled | |||||||||
Rapid movement of X/Y/Z | M/MIN | 15/15/12 | 15/15/12 | 15/15/12 | 10/10/8 | 10/10/8 | 10/10/8 | 10/10/10 | 10/10/10 | 12/12/12 | 10/10/10 |
Tool Magazine Capacity | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
Overall dimension | MM | 4680*3300*4200 | 6000*3550*4200 | 6800*3800*4350 | 6800*4200*4500 | 6800*4600*4500 | 7500*4600*4500 | 7500*4600*4500 | 7500*4600*4500 | 10650*2850*4500 | 10650*4500*5100 |
Only machine frame weight | KG | 11000 | 12000 | 17000 | 1700 | 23000 | 19000 | 27000 | 32000 | 28000 | 27000 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
● CNC control Siemens, Fanuc, Mitsubishi, Siemens
● XYZ Linear guideway, XY linear and Z box hard way
● Automatic tool changer Disc type / Chain type
● Spindle oil cooling device
● High speed spindle(10000-15000rpm)
● Water outlet from spindle center
● Tool holder in oilway
● Oil mist
● Chain chip conveyor/spiral chip conveyor
● Disc type oil-water separator
● 4th axis
● X/Y/Z axis optical scale
● Automatic tool length measuring
● Manual/Semi-automatic right-angle head
● ZF gearbox
Detail photos

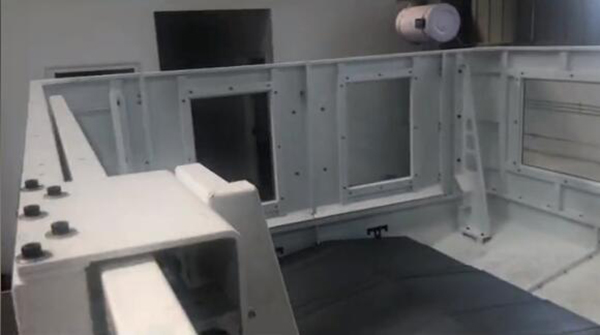

Frame weight 32t
Worktable connection

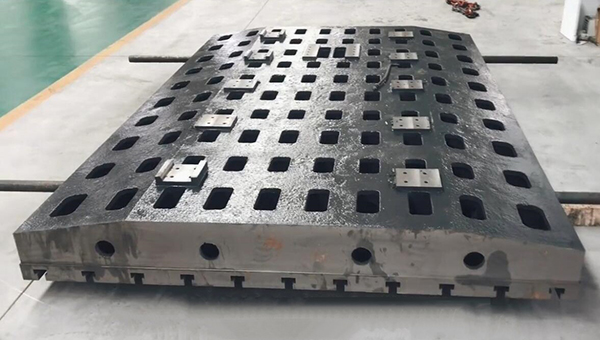

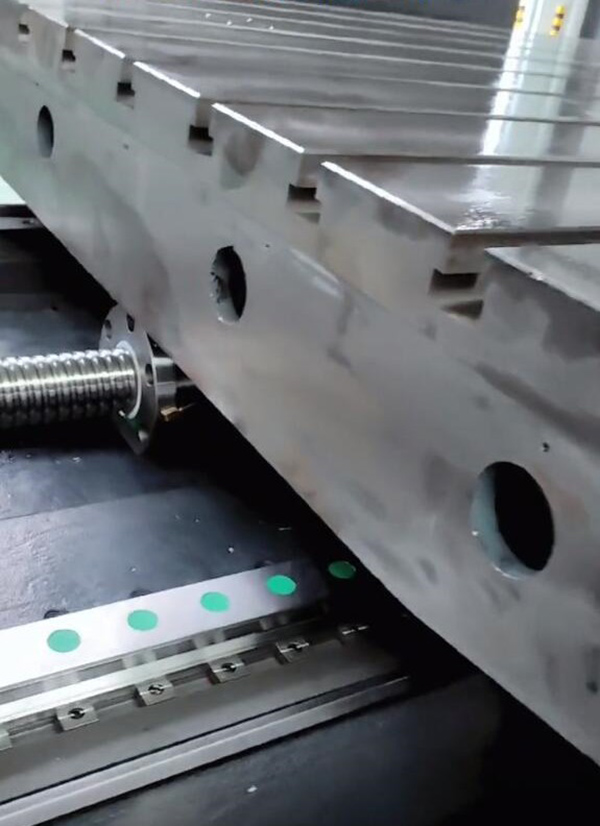

Worktable surface and ball screw.

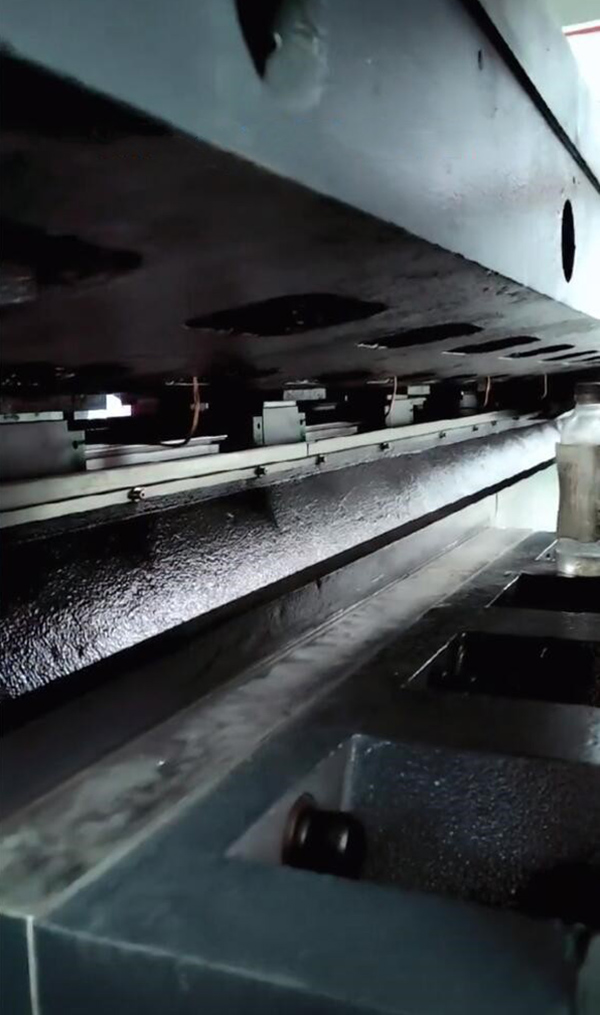

Worktable behind

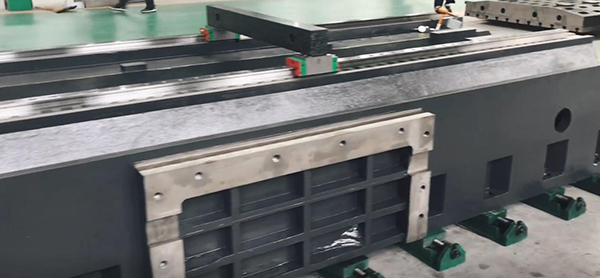

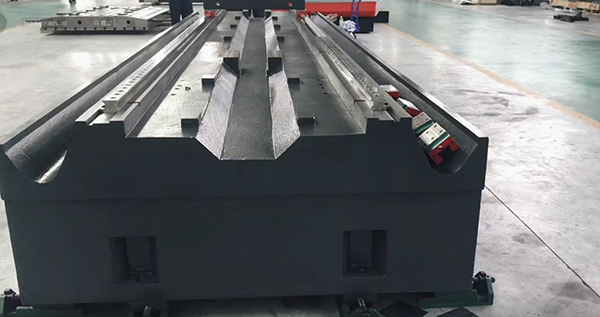

Base, total 10 slide blocks.

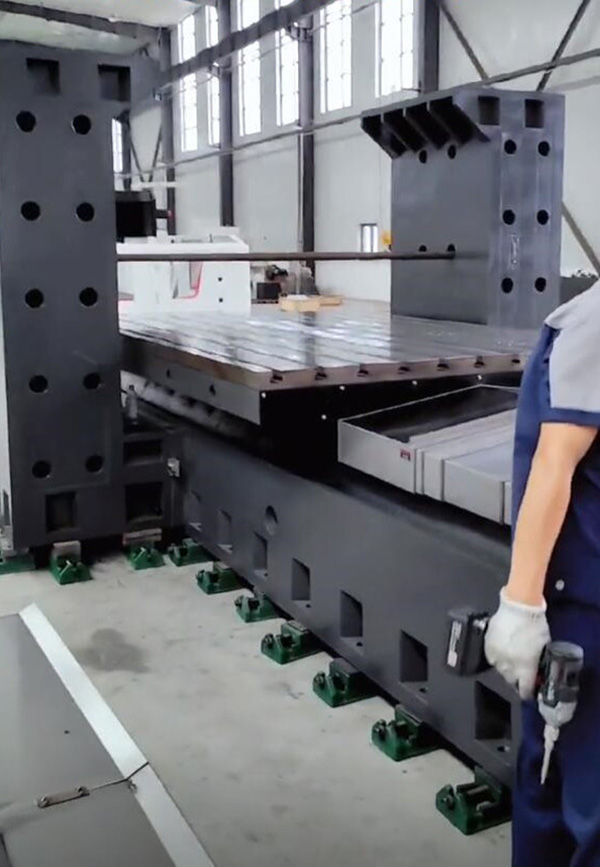

vertical columns and base is contacted by hanging up or entire casting as one piece.
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine.
