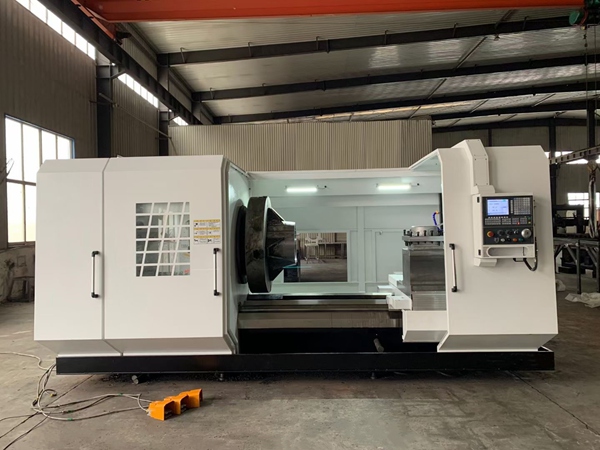

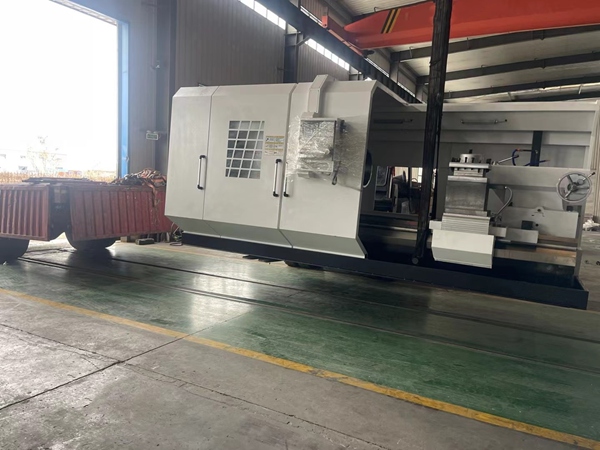

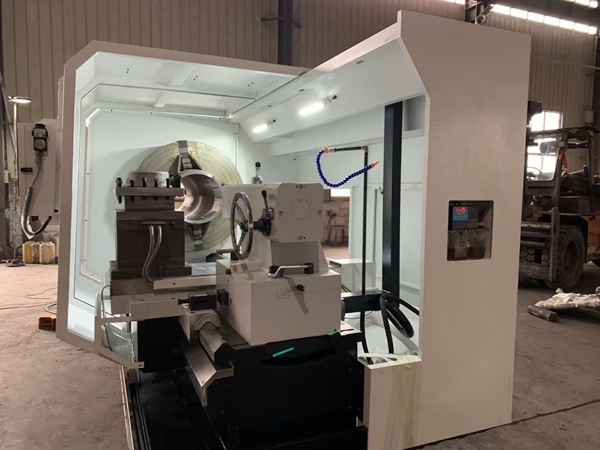

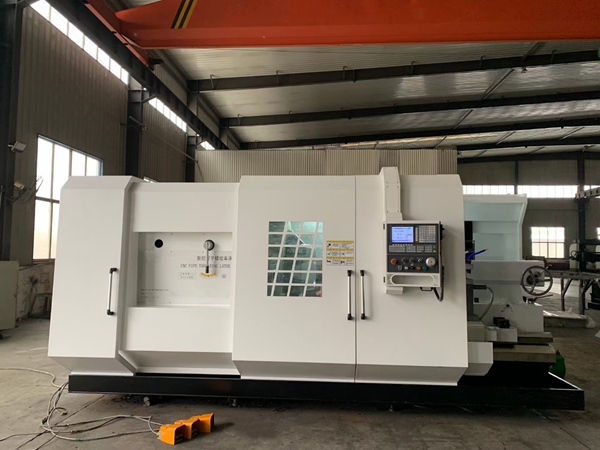

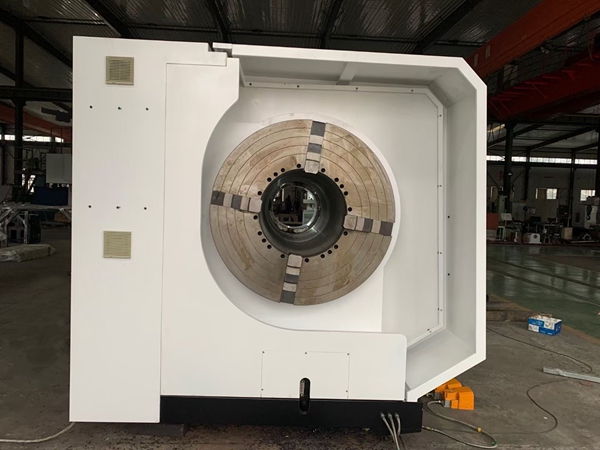

QK1353 Oil Country Pipe Threading Lathe

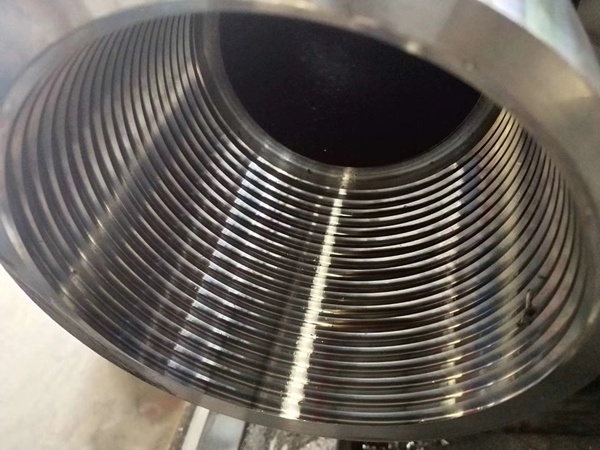

Parts Sample
Specification of QK1353 Oil Country Pipe Threading Lathe Machine
Items | Unit | QK1338 | QK1345 | QK1353 |
Max swing over bed | mm | Φ1000 | Φ1000 | Φ1250 |
Max swing over cross slide | mm | Φ610 | Φ610 | Φ850 |
Max workpiece length | mm | 1500/3000 | 1500/3000 | 1500/3000 |
Processing thread diameter range | mm | Φ190-370 | Φ270-430 | Φ330-520 |
Machine bed width | mm | 755 | 755 | 755 |
Bed load-bearing capacity | T | 6 | 6 | 6 |
Spindle bore | mm | Φ380 | Φ445 | Φ530 |
Spindle speed | r/min | 20-200 | 20-200 | 8-200 |
Spindle speed steps | manual 2 steps | manual 2 steps | manual 2 steps | |

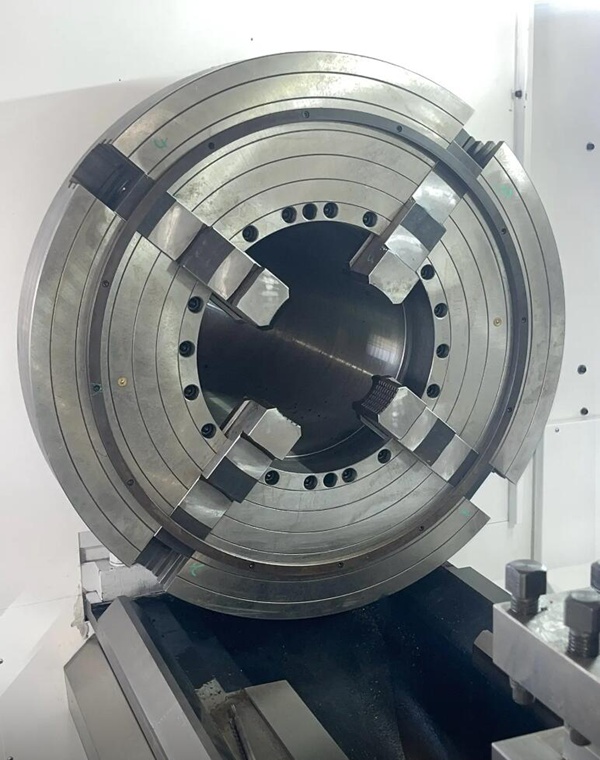

Chuck | mm | Φ850 manual 4 jaw | Φ1000 electric 4 jaw | Φ1250 electric 4 jaw |

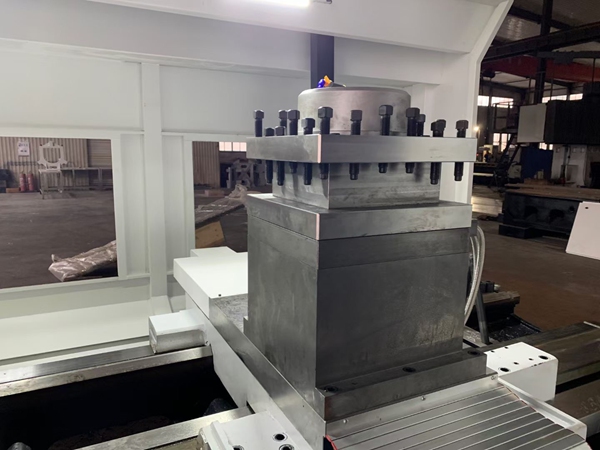

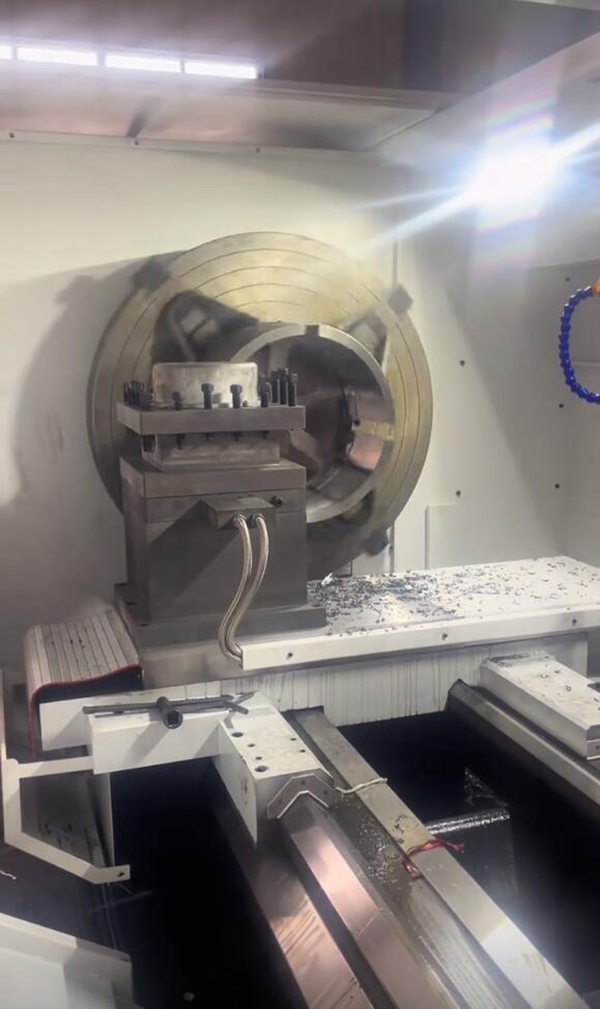

Tool post | 4 position electric tool post | |||
Tool size | mm | 40 | 40 | 40 |
X axis travel | mm | 520 | 520 | 520 |
Z axis travel | mm | 1250/2750 | ||
X rapid moving speed | mm/min | 4000 | 4000 | 4000 |
Z rapid moving speed | mm/min | 4000 | 4000 | 4000 |
Tailstock sleeve travel | mm | 300 | 300 | 300 |
Tailstock sleeve diameter | mm | Φ140 | Φ140 | Φ140 |
Tailstock sleeve taper | mm | MT6 | MT6 | MT6 |
Main motor power | kw | 22 | 22 | 30 |
Width*Height | mm | 2450*2150 | 2450*2150 | 2550*2260 |
Length | mm | 4900-6400 | 4900-6400 | 4900-6400 |
Weight | T | 12/13 | 13/14 | 15/16 |
Note: Swing over bed and Machine bed length can be customized according to customer requirements | ||||
Standard Configuration:
• Double 3 jaw chuck
• 4 station electric tool post
• Manual tailstock
• Automatic lubrication system
• Cooling system
• Semi-closed machine cover
Optional Configuration:
• Fanuc, Siemens, GSK CNC control
• Pneumatic chuck
• Hydraulic chuck
• Horizontal turret
• Power turret
• Hydraulic tailstock
• Full machine cover
• Back support frame
• Automatic feeding device
• Fixed ruler
