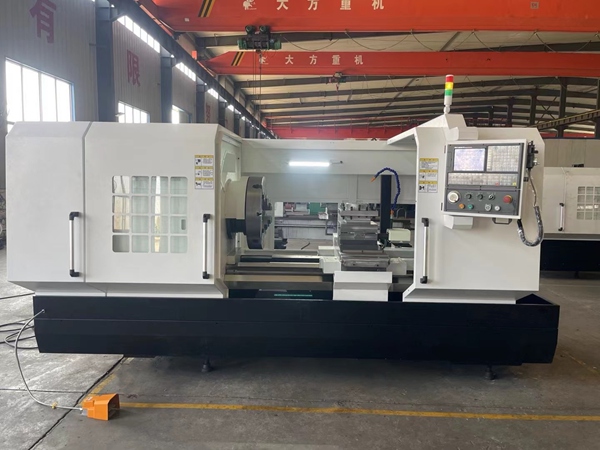

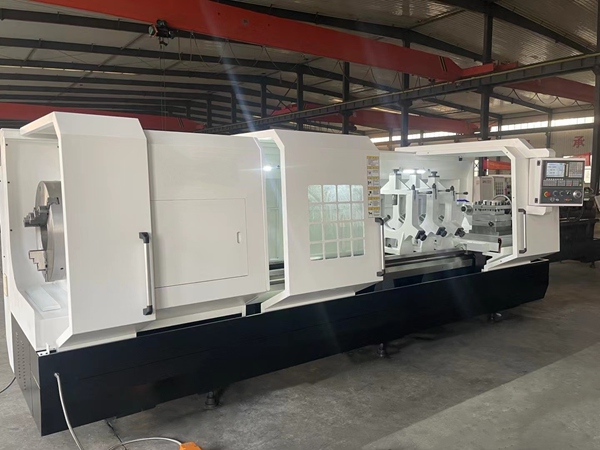

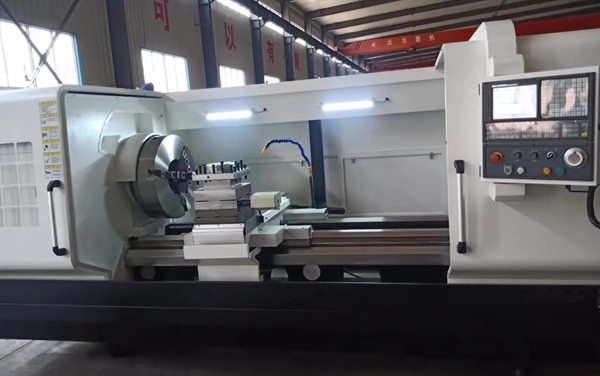

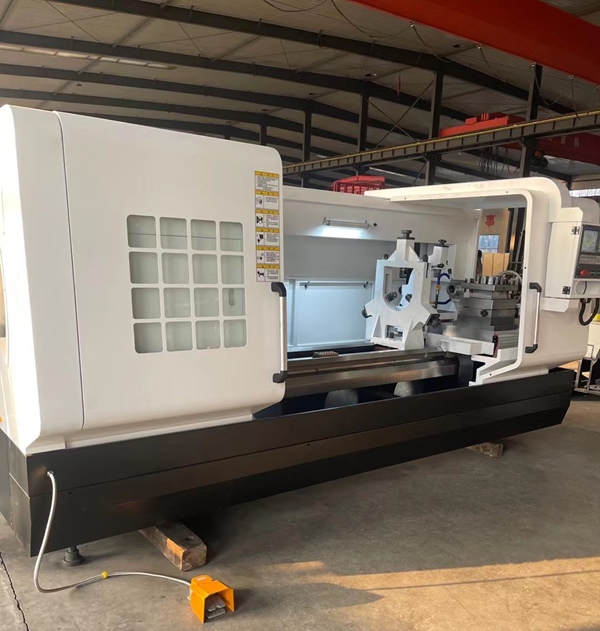

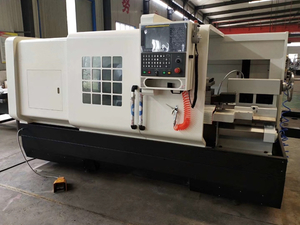

QK1325 Drill Pipe Thread Lathe

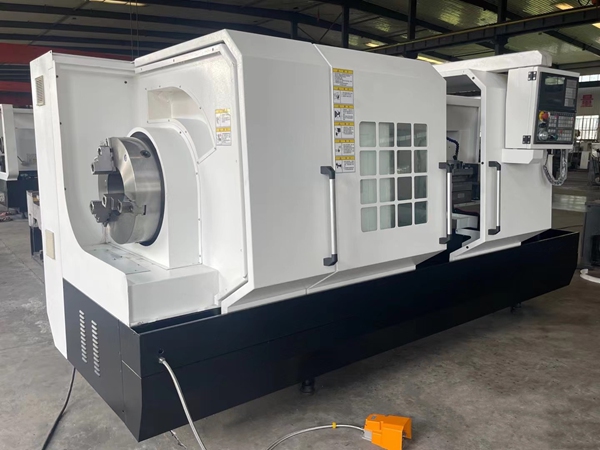

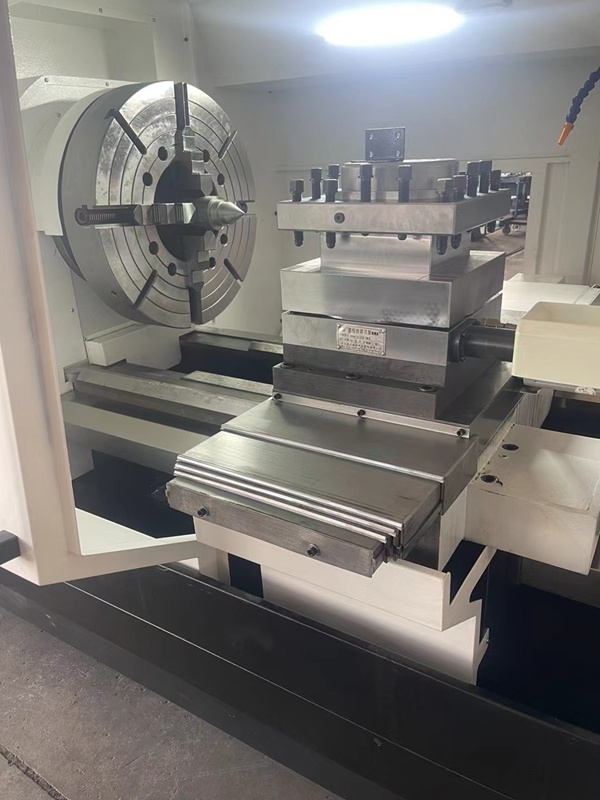

You Can Choose 3 Jaw Chuck or 4 Jaw Chuck

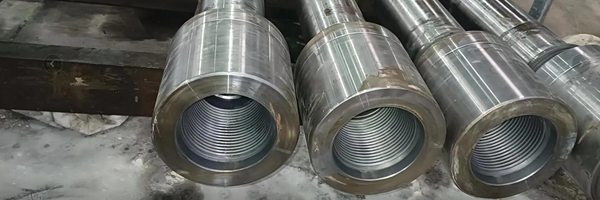

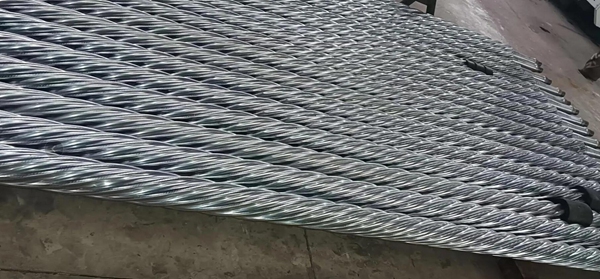

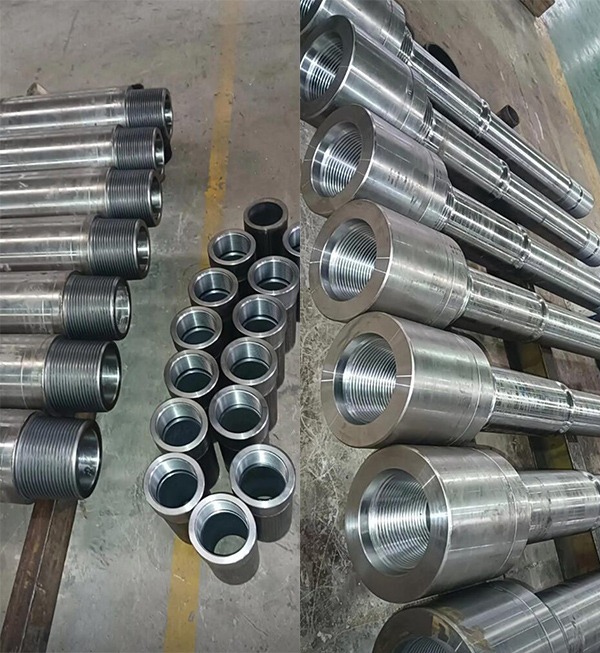

Parts Sample
Specification of QK1325 Drill Pipe Thread Lathe Machine
Items | Unit | QK1325 | QK1328A | QK1332A |
Max swing over bed | mm | Φ820 | Φ1000 | Φ1000 |
Max swing over cross slide | mm | Φ500 | Φ650 | Φ650 |
Max workpiece length | mm | 1500-3000 | ||
Processing thread diameter range | mm | Φ60-250 | Φ130-275 | Φ160-315 |
Machine bed width | mm | 600 | 650 | 650 |
Bed load-bearing capacity | T | 3 | 4 | 4 |
Spindle bore | mm | Φ255 | Φ280 | Φ320 |
Spindle speed | r/min | 28-500 | 20-380 | 20-380 |
Spindle speed steps | manual 3 teps | manual 2 teps | manual 2 teps | |
Chuck | mm | Φ630 manual 4 jaw | Φ800 manual 4 jaw | Φ800 manual 4 jaw |
Tool post | 4 position electric tool post | |||
Tool size | mm | 32 | 32 | 32 |
X axis travel | mm | 420 | 420 | 520 |
Z axis travel | mm | 1250-5750 | ||
X rapid moving speed | mm/min | 4000 | 4000 | 4000 |
Z rapid moving speed | mm/min | 6000 | 4000 | 4000 |
Tailstock sleeve travel | mm | 250 | 250 | 250 |
Tailstock sleeve diameter | mm | Φ120 | Φ120 | Φ120 |
Tailstock sleeve taper | mm | MT6 | MT6 | MT6 |
Main motor power | kw | 15 | 15 | 15 |
Width*Height | mm | 1800*1810 | 2050*2000 | 2100*2050 |
Length | mm | 3800-5300 | 4500-6000 | 4500-6000 |
Weight | T | 6-7.2 | 6.3-7.4 | 6.4-7.5 |
Note: Swing over bed and Machine bed length can be customized according to customer requirements | ||||
Standard Configuration:

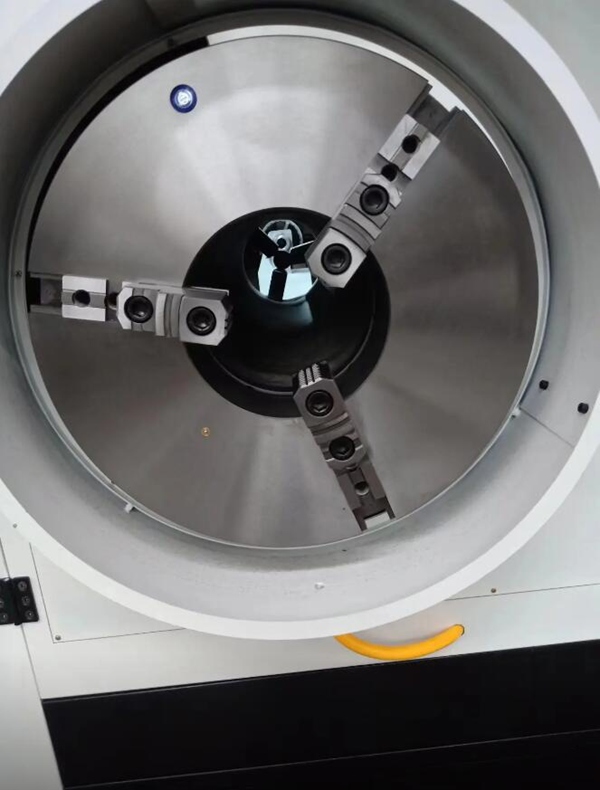

• Double 3 jaw chuck
• 4 station electric tool post

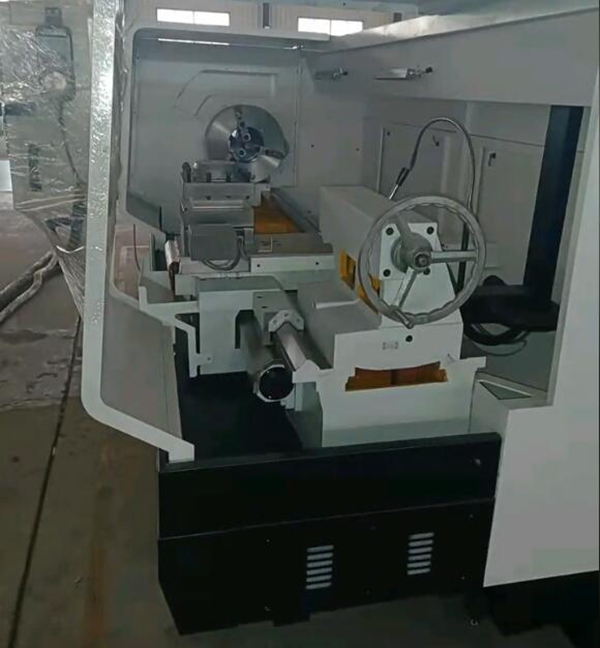

• Manual tailstock
• Automatic lubrication system
• Cooling system
• Semi-closed machine cover
Optional Configuration:
• Fanuc, Siemens, GSK CNC control
• Pneumatic chuck
• Hydraulic chuck
• Horizontal turret
• Power turret
• Hydraulic tailstock
• Full machine cover

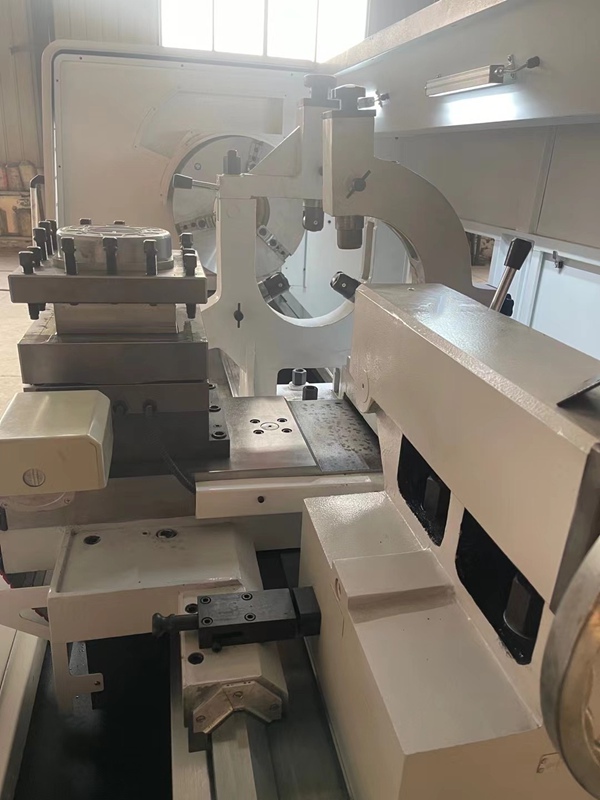

• Back support frame
• Automatic feeding device
• Fixed ruler
