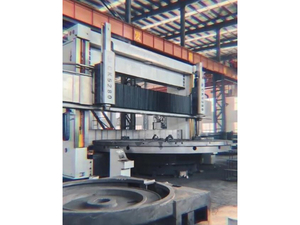

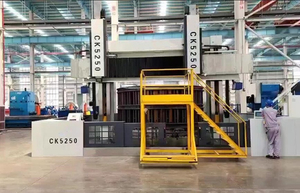

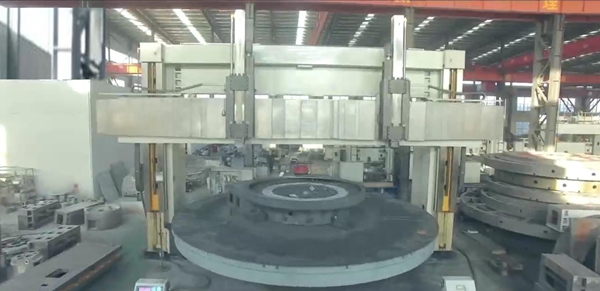

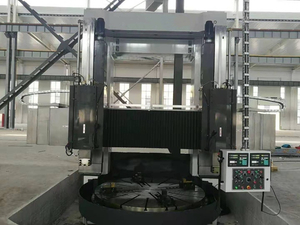

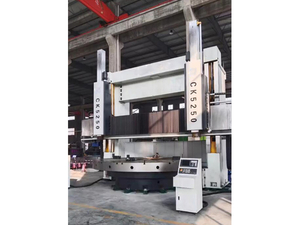

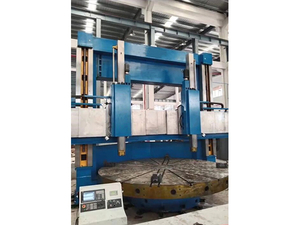

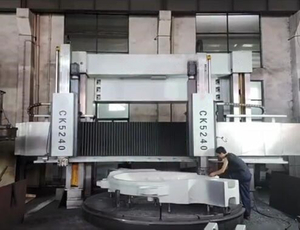

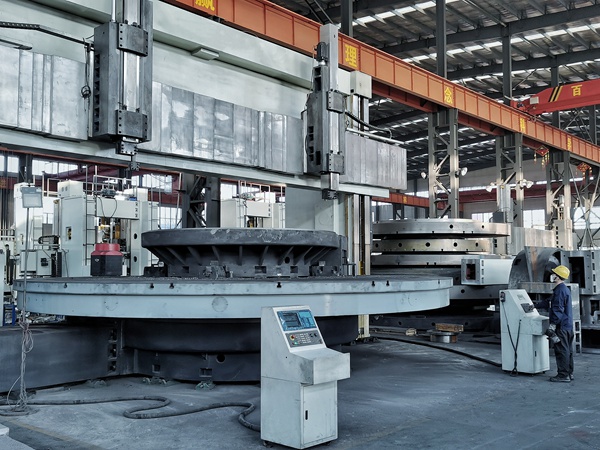

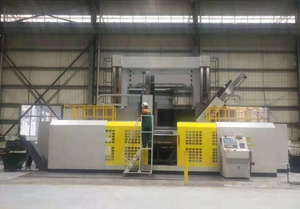

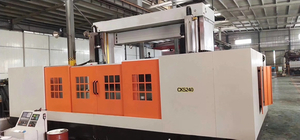

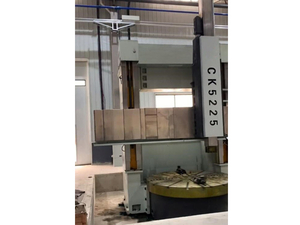

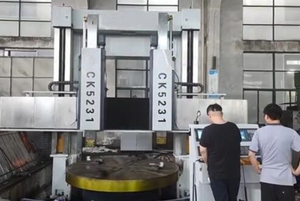

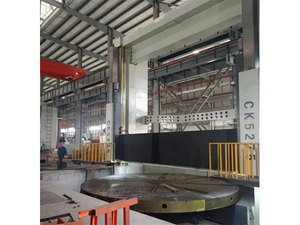

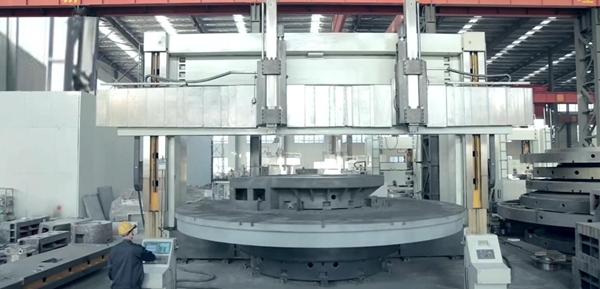

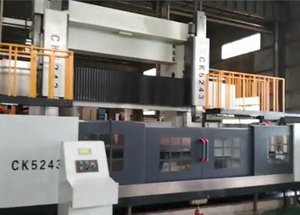

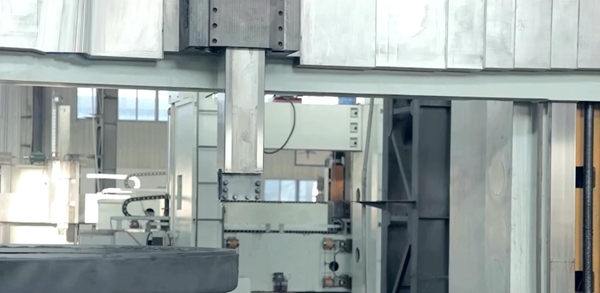

CK5285 Chinese Vertical Lathe Machine Tool

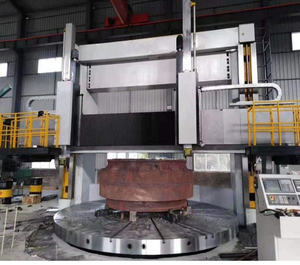

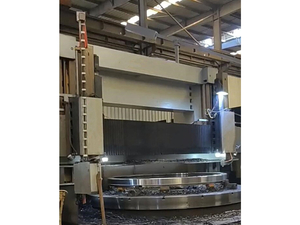

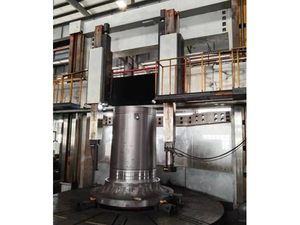

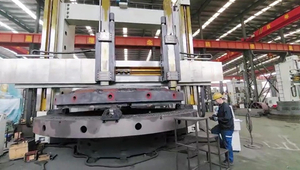

Workpiece Processing
CK5285 Specification
Items | Unit | CK5225 | CK5231 | CK5240 | CK5250 | CK5263 | CK5280 | CK5290 | CK52100 |
Max turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 9000 | 10000 |
table diameter | mm | 2250 | 2830 | 3200/3600 | 4500 | 4500/5700 | 7200 | 8000 | 8500 (3 open type) |
Max workpiece height | mm | 1600/2000/2500 | 2000/2500 | 1600/2000/3150 | 2500/3150 | 3200 | 3150/4000 | 3150/4000 | 4000 |
Max workpiece weight | t | 10/20 | 10/20 | 20/32 | 65 | 65/80 | 80/120 | 100/120 | 200 |
Max worktable torque | KN.m | 63 | 63 | 80 | 100 | 100 | 500 | 500 | 600 |
worktable speed series | 4 stepless/16 steps | 4 stepless/16 steps | 4 stepless/16 steps | 4 stepless/2 stepless | 2 stepless | 2 stepless | 2 stepless | 2 stepless | |
worktable speed range | r/min | 2-63 | 2-63 | 2-63 | 0.4-40 | 0.4-32 | 0.4-20 | 0.4-20 | 1-20 |
cutting force of vertical tool post | KN | 32 | 35 | 40 | 50 | left50, | left80, | left80, | left80, |
feeding range of vertical tool post | mm/min | stepless | stepless | stepless | 0.2-145 | 0.1-500 | 0.1-500 | 0.1-500 | stepless |
horizontal travel of vertical tool post | mm | -20-1400 | -20-1840 | -20-2150 | -20-2760 | -20-3415 | -20-4400 | -20-4700 | -50-5200 |
ram travel of vertical tool post | mm | 1000/1250 | 1000/1250 | 1000/1250 | 1250/1600 | 1600/2000 | 1600/2000 | 1600/2000 | 2100 |
rapid movement speed of tool post | mm/min | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
cross-section dimension of ram(W*H) | mm | 240*240 | 240*240 | 240*240 | 240*240 | 280*280 | 280*280 | 280*280 | 320*320 |
tool rod cross-section dimension | mm | 40*50 | 40*50 | 40*50 | 50*50 | 50*50 | 60*60 | 60*60 | 60*60 |
main motor power | KW | 55 | 55 | 75 | 90 | 90 | 132 | 132 | 160 |
overall dimension of machine | mm | 5400*4700* | 6050x4400 | 6900*5100* | 10000*7000* | 12500*7500* | 14000*13000*9100 | 16000*13000*9100 | 16000*13000*10000 |
machine weight (approximately) | t | 32/34/38 | 36/40 | 48/50/52 | 81/84 | 120 | 180 | 200 | 400 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, GSK980tdi
• 2 tool posts are CNC
• Servo main motor
• 4 position/6 position
• Tool cooling (water tube)
• Add height
• Schneider electric
• Taiwan HIWIN ball screws
• Some other requirement from customer
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine
