CK5235 CNC Vertical Lathe

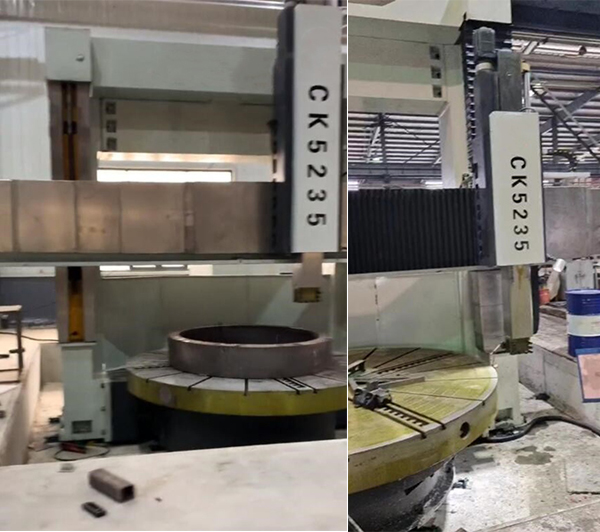

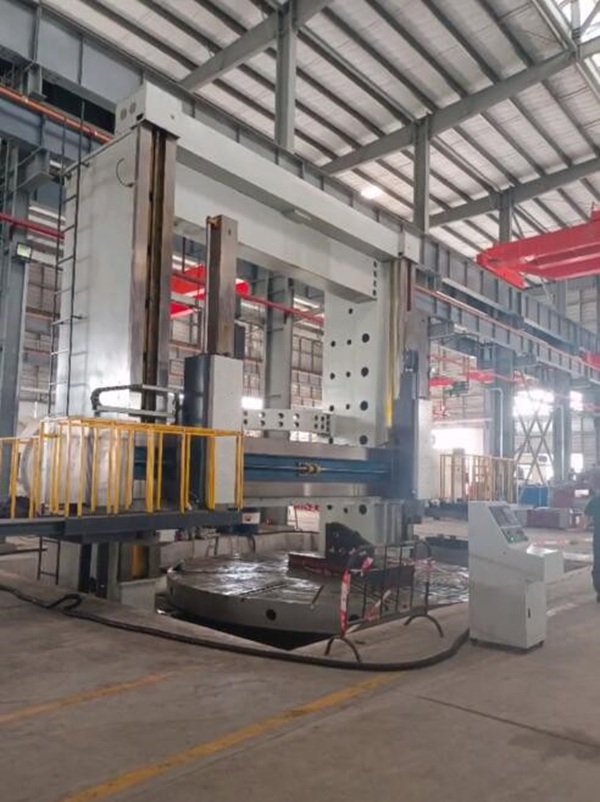

Above picture is with single tool post according to customer’s requirement.
Beam protection can be steel or black cover.
Ball screws of vertical column can be protected with steel. (up: black, down: steel. Or all steel)

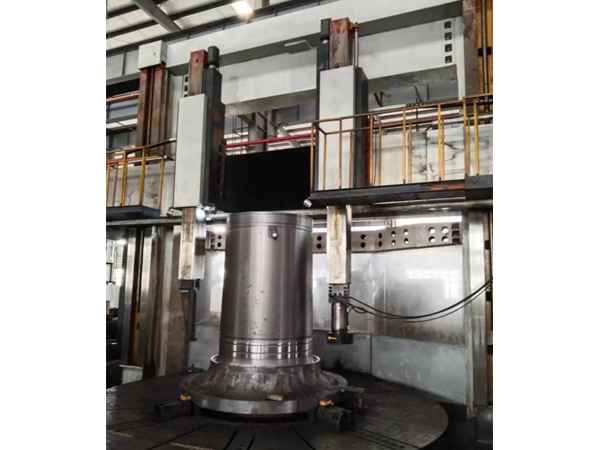

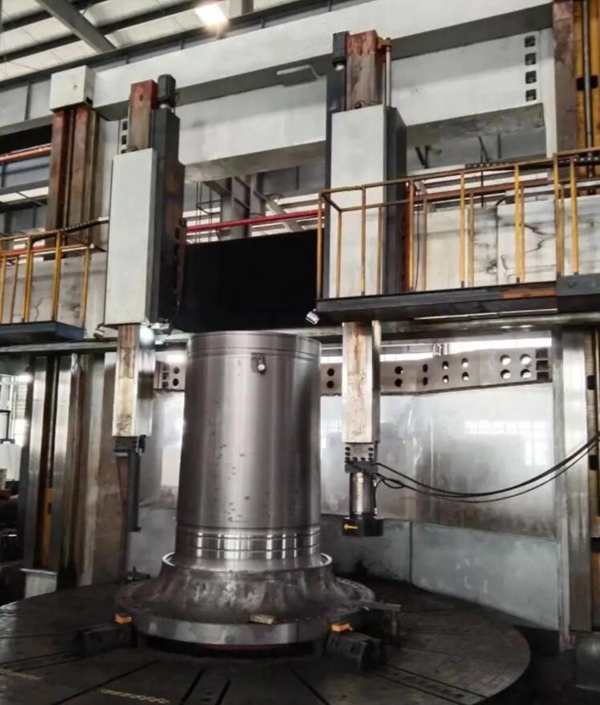

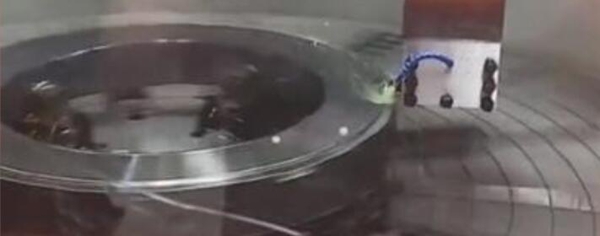

Workpiece Processing
CK5231 Vertical Lathe Specification
Items | Unit | CK5225 | CK5231 | CK5240 | CK5250 | CK5263 | CK5280 | CK5290 | CK52100 |
Max turning diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 9000 | 10000 |
table diameter | mm | 2250 | 2830 | 3200/3600 | 4500 | 4500/5700 | 7200 | 8000 | 8500 (3 open type) |
Max workpiece height | mm | 1600/2000/2500 | 2000/2500 | 1600/2000/3150 | 2500/3150 | 3200 | 3150/4000 | 3150/4000 | 4000 |
Max workpiece weight | t | 10/20 | 10/20 | 20/32 | 65 | 65/80 | 80/120 | 100/120 | 200 |
Max worktable torque | KN.m | 63 | 63 | 80 | 100 | 100 | 500 | 500 | 600 |
worktable speed series | 4 stepless/16 steps | 4 stepless/16 steps | 4 stepless/16 steps | 4 stepless/2 stepless | 2 stepless | 2 stepless | 2 stepless | 2 stepless | |
worktable speed range | r/min | 2-63 | 2-63 | 2-63 | 0.4-40 | 0.4-32 | 0.4-20 | 0.4-20 | 1-20 |
cutting force of vertical tool post | KN | 32 | 35 | 40 | 50 | left50, | left80, | left80, | left80, |
feeding range of vertical tool post | mm/min | stepless | stepless | stepless | 0.2-145 | 0.1-500 | 0.1-500 | 0.1-500 | stepless |
horizontal travel of vertical tool post | mm | -20-1400 | -20-1840 | -20-2150 | -20-2760 | -20-3415 | -20-4400 | -20-4700 | -50-5200 |
ram travel of vertical tool post | mm | 1000/1250 | 1000/1250 | 1000/1250 | 1250/1600 | 1600/2000 | 1600/2000 | 1600/2000 | 2100 |
rapid movement speed of tool post | mm/min | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
cross-section dimension of ram(W*H) | mm | 240*240 | 240*240 | 240*240 | 240*240 | 280*280 | 280*280 | 280*280 | 320*320 |
tool rod cross-section dimension | mm | 40*50 | 40*50 | 40*50 | 50*50 | 50*50 | 60*60 | 60*60 | 60*60 |
main motor power | KW | 55 | 55 | 75 | 90 | 90 | 132 | 132 | 160 |
overall dimension of machine | mm | 5400*4700* | 6050x4400 | 6900*5100* | 10000*7000* | 12500*7500* | 14000*13000*9100 | 16000*13000*9100 | 16000*13000*10000 |
machine weight (approximately) | t | 32/34/38 | 36/40 | 48/50/52 | 81/84 | 120 | 180 | 200 | 400 |
Note: Parameters can be customized according to customer requirements
Optional Configuration
• CNC control Siemens, Fanuc, GSK980tdi
• 2 tool posts are CNC
• Servo main motor
• 4 position/6 position
• Tool cooling (water tube)
• Add height
• Schneider electric
• Taiwan HIWIN ball screws
• Some other requirement from customer
FAQ
1. Can the parameters be changed：
——YES. We can changed some parameters according to customer need.
2. Payment methods：
——T/T, L/C
3. After-sale service：
(1) Free technical service provided via telephone/email/video/video call.
(2) Lifelong service.
(3) Installation abroad for big machine
