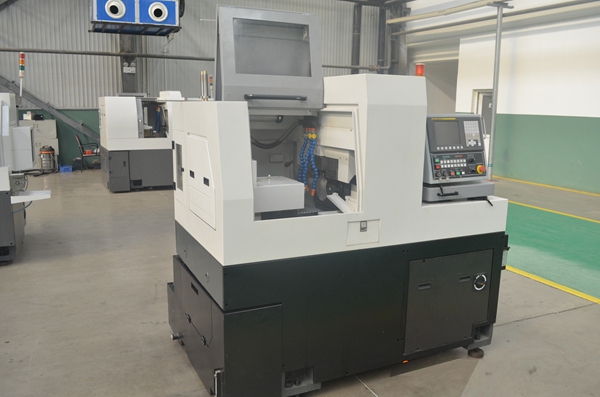

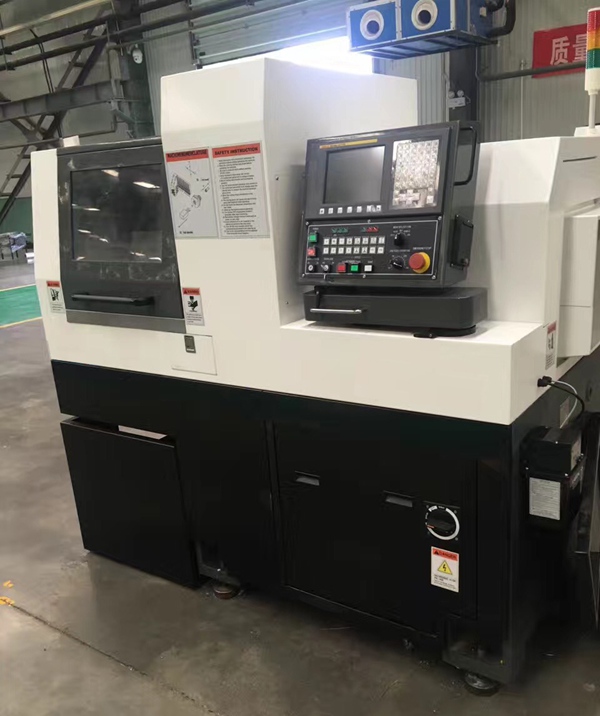

Y-R164 Four Axis Swiss Type CNC Automatic Lathe

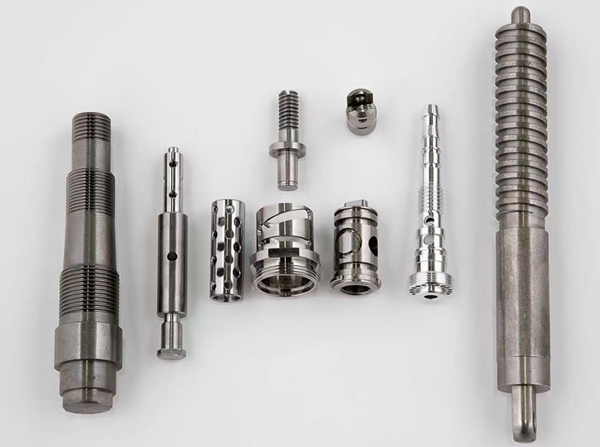

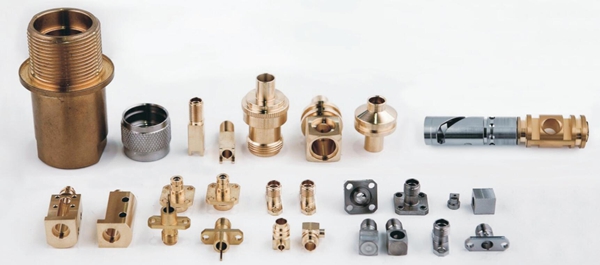

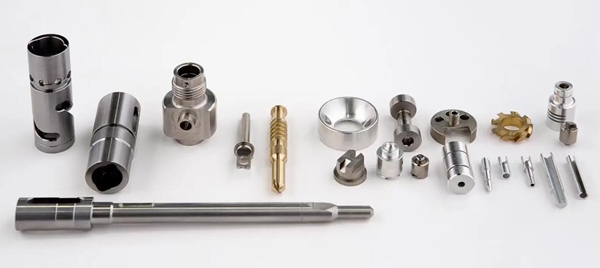

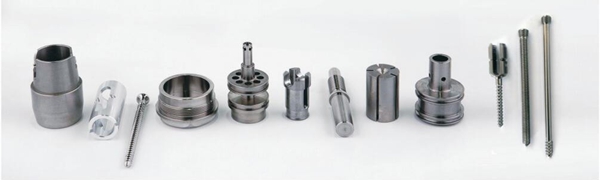

Parts Samples Made By Swiss Type CNC Lathe
Specification of Y-R164 Four Axis Swiss Type CNC Automatic Lathe

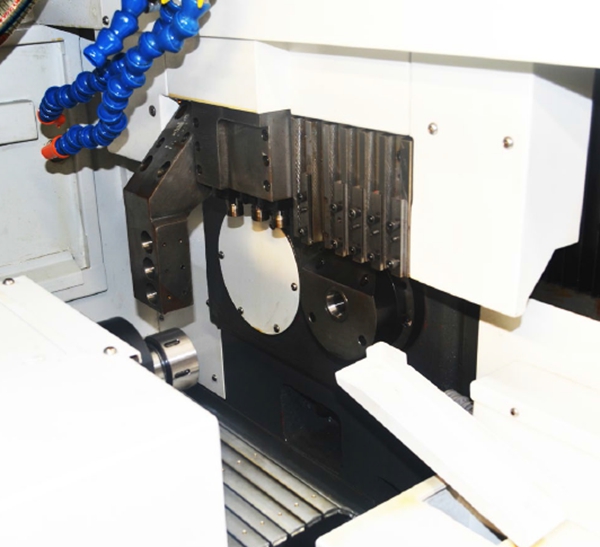

Items | Unit | Y-R164 | Y-M203 | |
System | SYNTEC22TB | SYNTEC22TB | ||
Max Speed of Main Spindle/ Sub Spindle | Main 8000 min-1 | Main 8000 min-1 | ||
Processing capacity | Max Turning Diameter | mm | Φ16 | Φ20 |
Main Spindle Travel | mm | 150 | 230 | |
Rapid Traverse Rate | m/min | 24 | 24 | |
Tools | Outer dia. Tools Holders | ea | 6×[□12×12] | 6×[□12×12] |
Inner dia. Tools Holders | ea | 3× [Φ25-ER16] | 5× [Φ25-ER16] | |
Cross Driven Tools Holders (integration) | ea | 3× [ER16] | 4× [ER16] | |
Motors | Main Spindle Motor | kw | 3.9 | 3.9 |
Sub Spindle Motor | kw | 0.75 | ||
Cross Driven Tools Motor | kw | 0.75 | 0.75 | |
Drive Motor | kw | 0.75 | 0.75 | |
Coolant Motor | kw | 0.25 | 0.4 | |
Other | Coolant Tank Capacity | L | 180 | 180 |
Lubrication Tank Capacity | L | 1.8 | 1.8 | |
Central Height | mm | 1050 | 1000 | |
Weight | kg | 3000 | 2800 | |
Size (L*W*H) | mm | 1985*1321*1692 | 2135*1366*1670 | |
CNC Control | Controllable Axis/Simultaneous Axis | 5 axis/4 axis | 4 axis/4 axis | |
LCD | LCD8.4" | LCD8.4" | ||
System Standard Parameters | Standard | Standard | ||
Rigid Tapping | Standard | Standard | ||
Helical Interpolation | Standard | Standard | ||
Note: Parameters can be customized according to customer requirements
203/164 Standard Units:
• Floodlight
• Transformer
• Main Spindle C axis + Brake
• C Axis Resolution:0.001°
• Sub Spindle M Code Air Blow (164)
• Product Output Device
• Centralized Lubrication System
• Synchronous Rotary Guide Bush Device
• Sub Spindle Workpiece Ejection Device (164)
• Cooling Box
203/164 Optional Units:
• Bar Feeder
• Chip Conveyor
• High Pressure Pump
• Oil Mist Collector/Cleaner
• End Face Driven Tool Holder
• 4 Cross Tool Holder (164)
• Cut-off Detector
• 4 or 5 Inner Tool Holders (164)
• Voltage Regulator
• If need other optional unit not in above list, pls contact us

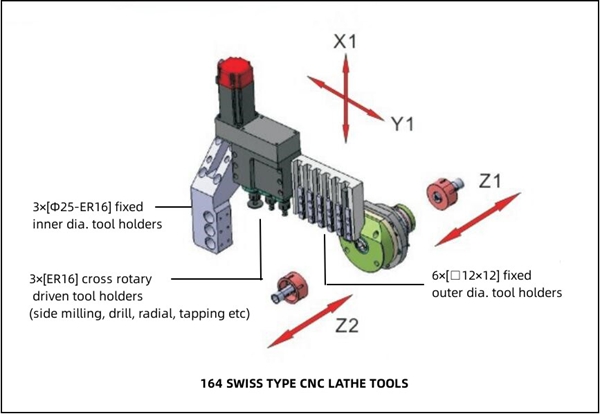

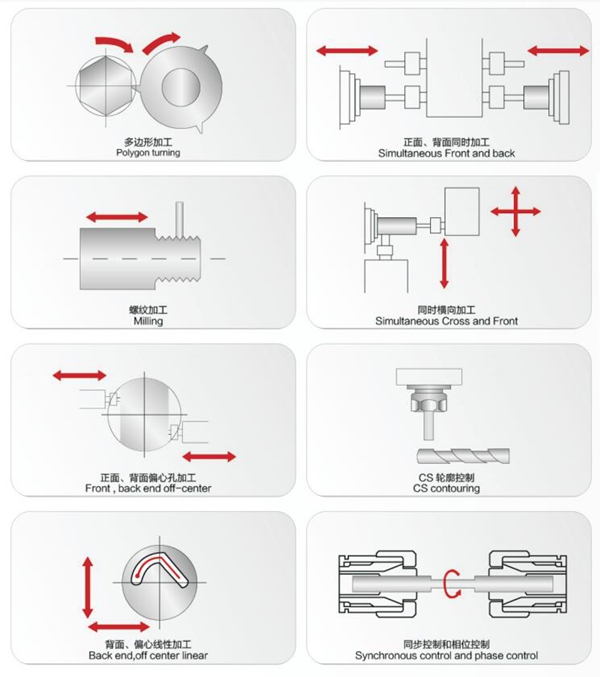

Swiss Lathe Functions (164)
