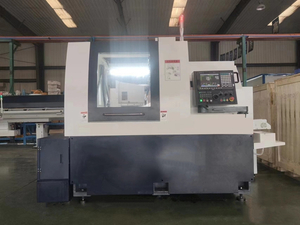

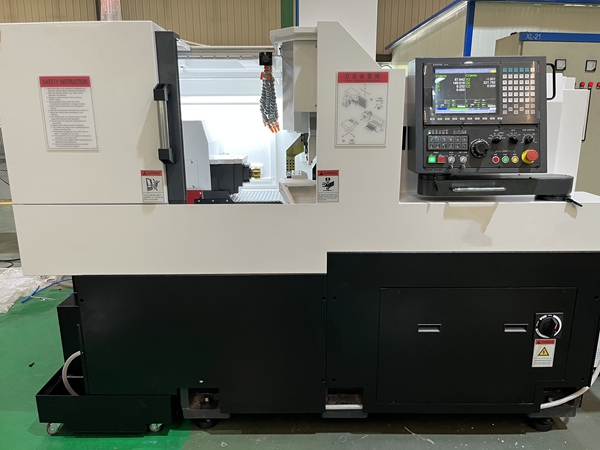

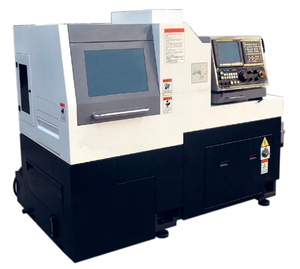

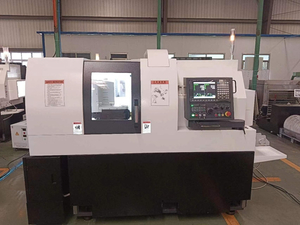

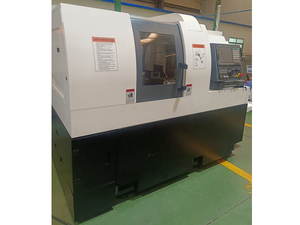

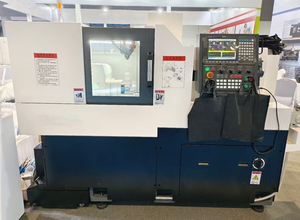

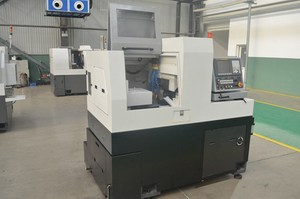

Y-M205 Five Axis Swiss Type CNC Lathe

Y-M205 Five Axis Swiss Type CNC Lathe

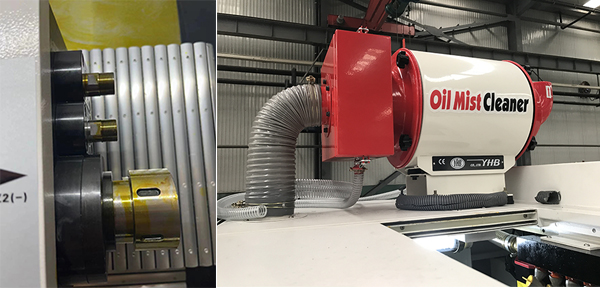

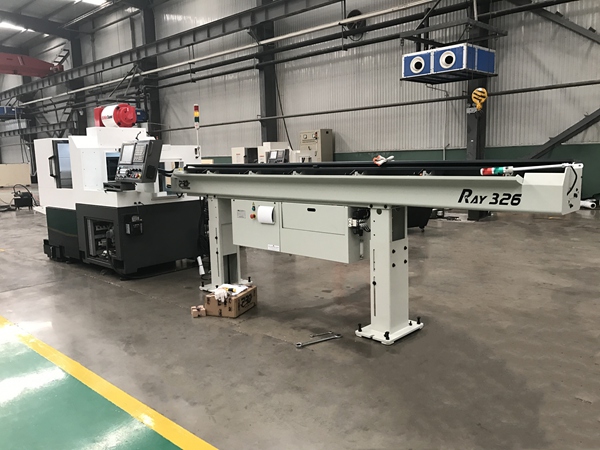

Taiwan Pro Ray326 bar feeder, Fanuc control, Oil Mist Cleaner

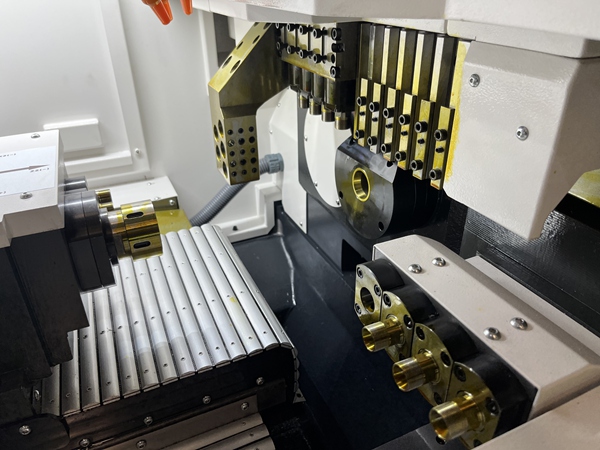

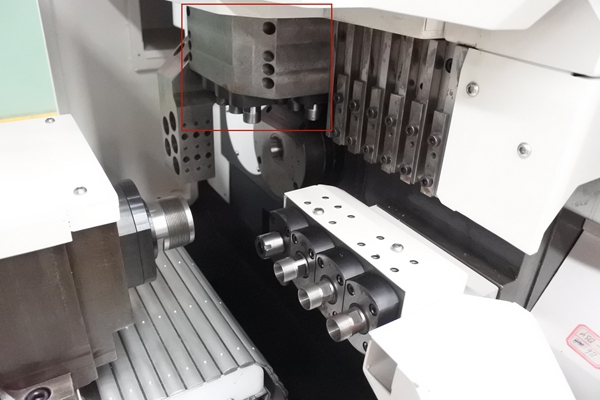

Two Eccentric Rotary Tool Holders

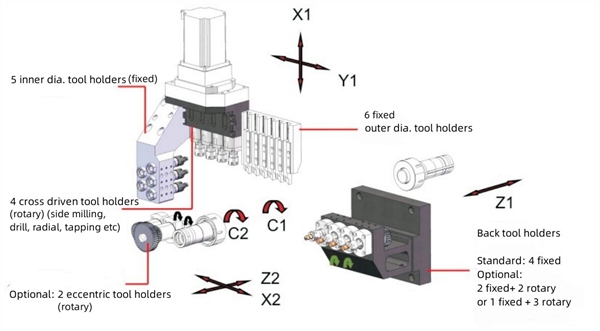

Tool Layout Similar to Japan CITIZEN

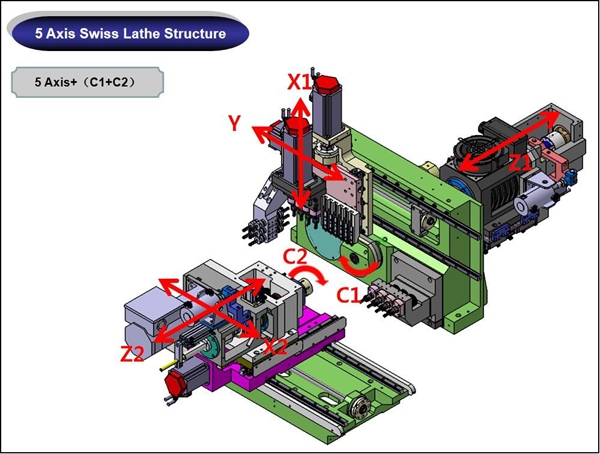

C1 Main Spindle, C2 Sub Spindle

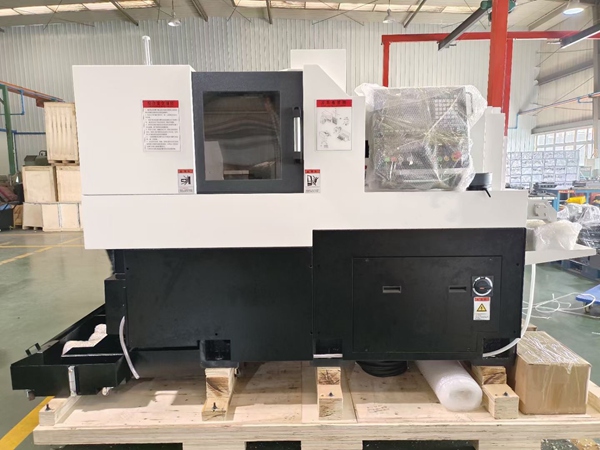

Structure Steady, More Weight Than Others

High Efficiency

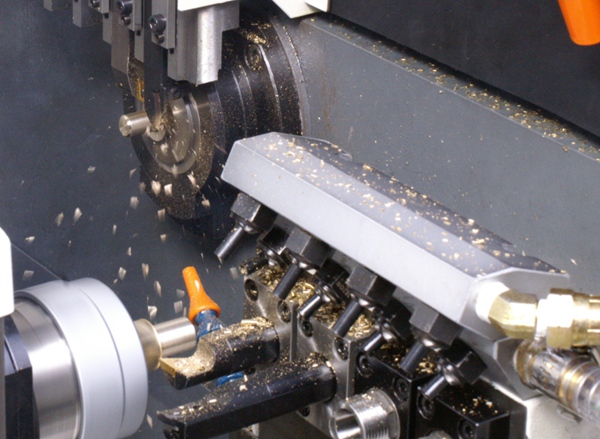

(Main Spindle Processing One Side,

Sub-Spindle Processing The Other Side Simultaneously)

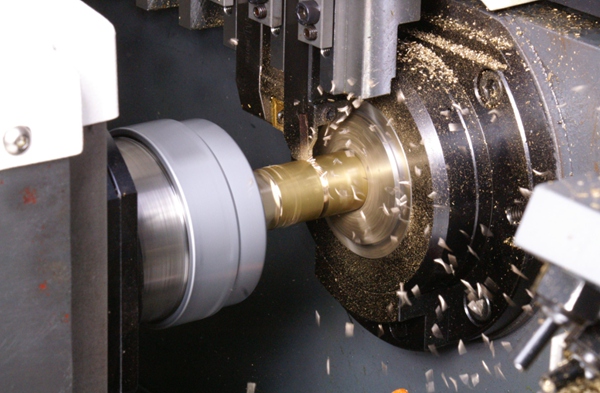

Main Spindle and Sub-Spindle Cutting Off Parts Sample Together

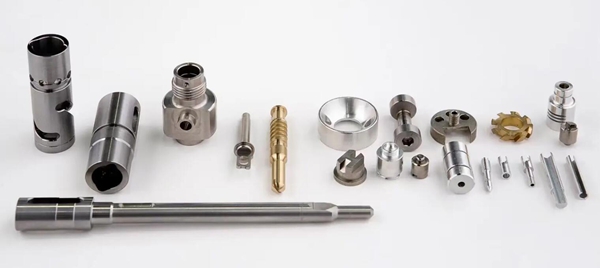

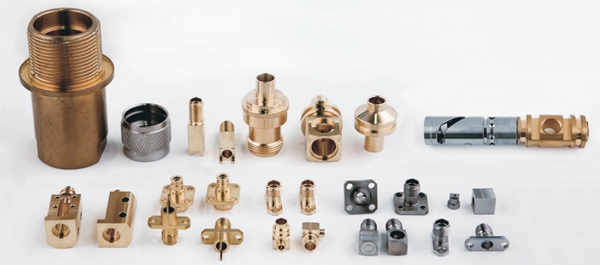

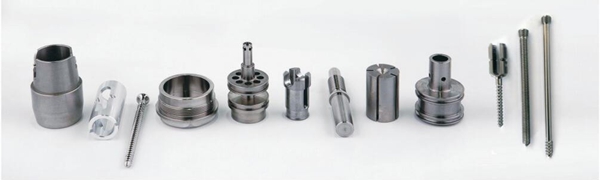

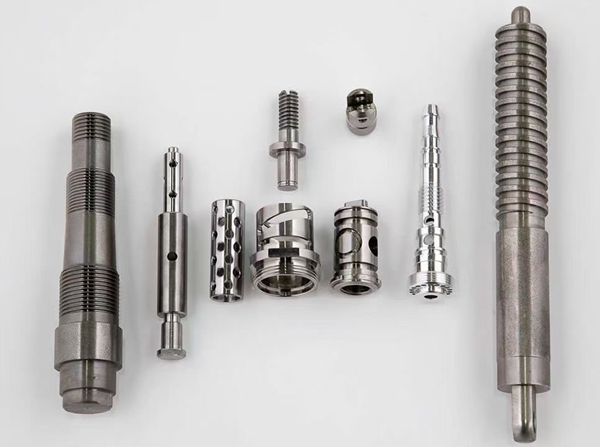

Parts Samples Made By Swiss Type CNC Lathe

Specification of Y-M205 Five Axis Swiss Type CNC Lathe

Items		Unit	Y-M205 Swiss Lathe		Y-M265 Swiss Lathe
	System		Fanuc 0i TF-PLUS	SYNTEC220TB	Fanuc 0i TF-PLUS	SYNTEC220TB
	Max Speed of Main Spindle/ Sub Spindle		Main 10000 min-1 Sub 8000 min-1	Main 8000 min-1 Sub 8000 min-1	Main 10000 min-1 Sub 8000 min-1	Main 8000 min-1 Sub 8000 min-1
Processing capacity	Max Turning Diameter	mm	Φ20		Φ26
	Main Spindle Travel	mm	230		230
	Front/back Drilling Diameter	mm	Φ10		Φ10
	Front/back Max Tapping		Front M8/Back M6		Front M8/Back M6
	Cross Driven Tools	rpm	5000		5000
	Cross Driven Drilling Diameter/Tapping	mm	Φ10/M8(Copper)		Φ10/M8(Copper)
	Rapid Traverse Rate	m/min	32 (X1:24m/min)		32 (X1:24m/min)
Tools	Outer dia. Tools Holders	ea	6 ×[□12×12]		1 ×[□16×16] + 5 ×[□12×12]
	Inner dia. Tools Holders	ea	5× [Φ25-ER16]		5× [Φ25-ER16]
	Cross Driven Tools Holders	ea	4× [ER16]		4× [ER16]
	Back Tools Holders	ea	4× [ER16] fixed		4× [ER16] fixed
Motors	Main Spindle Motor	kw	2.2/3.7	3.9	2.2/3.7	3.9
	Sub Spindle Motor	kw	1.5/2.2	3.9	1.5/2.2	3.9
	Cross Driven Tools Motor	kw	1	0.75	1	0.75
	Drive Motor	kw	X1:0.75, other 0.5	0.75	X1:0.75, other 0.5	0.75
	Coolant Motor	kw	0.4		0.4
Other	Coolant Tank Capacity	L	180		180
	Lubrication Tank Capacity	L	1.8		1.8
	Central Height	mm	1000		1000
	Weight	kg	3600		3600
	Size (L*W*H)	mm	2570*1520*1710		2570*1520*1710
CNC Control	Controllable Axis/Simultaneous Axis		7 axis/4 axis		7 axis/4 axis
	LCD		LCD10.4"		LCD10.4"
	System Standard Parameters		Standard		Standard
	Rigid Tapping		Standard		Standard
	Hand Wheel		Standard		Standard
	Synchronous/ Hybrid Control		Standard		Standard
	Helical Interpolation		Standard		Standard

Note: Parameters can be customized according to customer requirements

Standard Units:

• Hand Wheel

• Floodlight

• Transformer

• Three Color Light

• Main/Sub Axis C axis + Brake

• Sub Spindle M Code Air Blow

• C Axis Resolution:0.001°

• Product Output Device

• Centralized Lubrication System

• Synchronous Rotary Guide Bush Device

• Sub Spindle Workpiece Ejection Device

• Cooling Box

Optional Units:

• Bar Feeder

• Chip Conveyor

• High Pressure Pump

• Oil Mist Collector/Cleaner

• Pick Up Long Workpiece Device

• End Face Driven Tool Holder (3 rotary+1 fixed)

• Adjustable Angle Power Holder

• Back End Saw Blade Holder

• Back End Side Milling Tool Holder

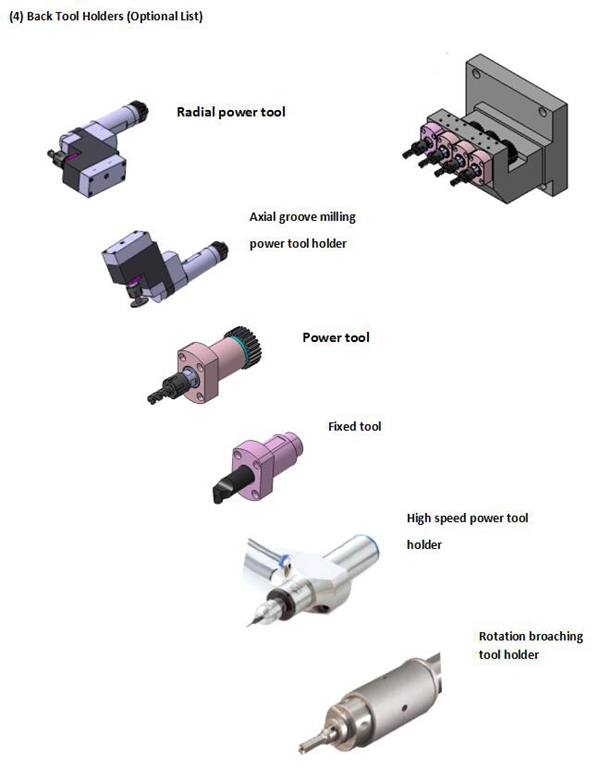

• Back Tool Holder 2 Axis(rotary)+2 Axis(Fixed)

• Voltage Regulator

• If need other optional unit not in above list, pls contact us.

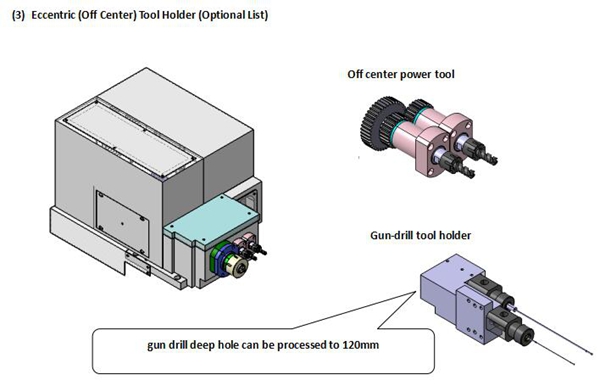

Some Relevant Optional Photos:

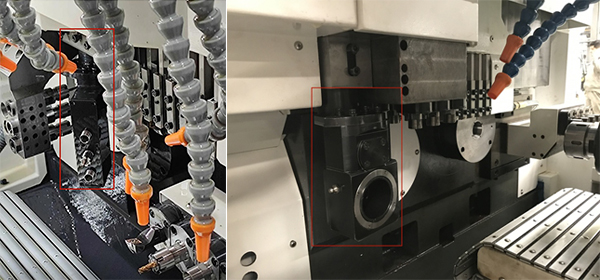

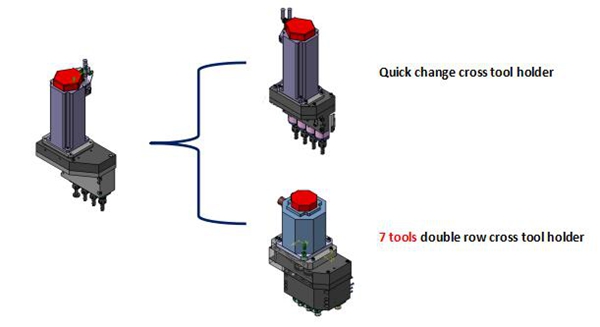

(1) Cross Driven Tool can equipped with quick change type and double row (Optional)

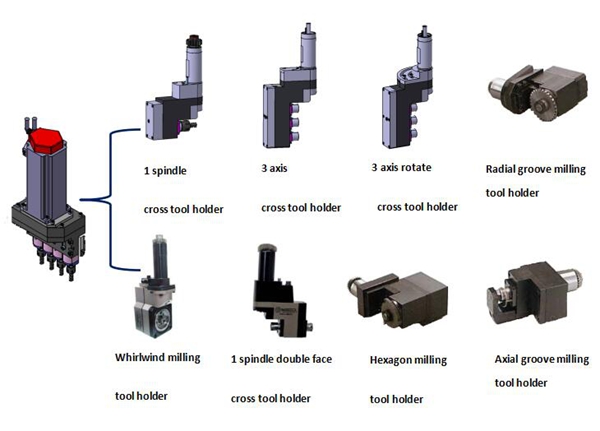

(2) Cross Driven Rotation Tool Holder (Optional List)

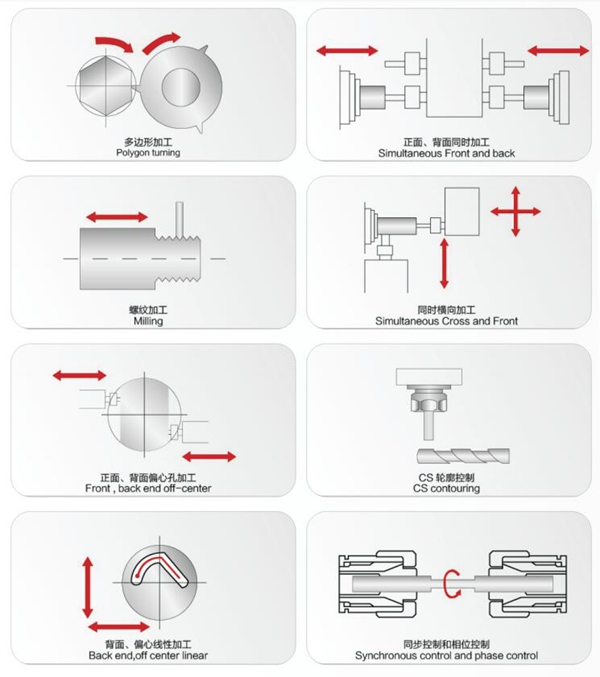

Swiss Lathe Functions

FAQ

1. Can the parameters be changed：

——YES. We can changed some parameters according to customer need.

2. Payment methods：

——T/T, L/C

3. After-sale service：

(1) Free technical service provided via telephone/email/video/video call.

(2) Lifelong service.

(3) Installation abroad for big machine.
