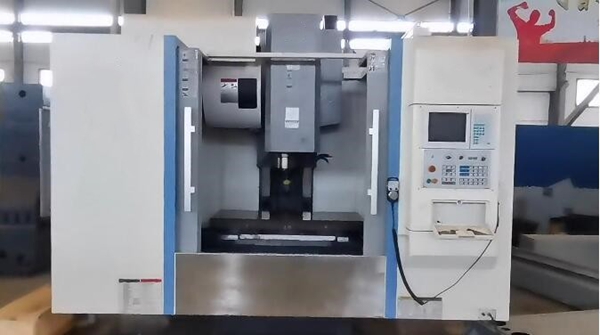

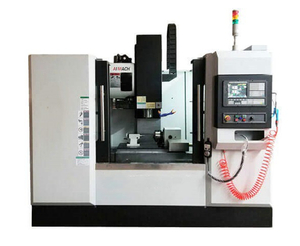

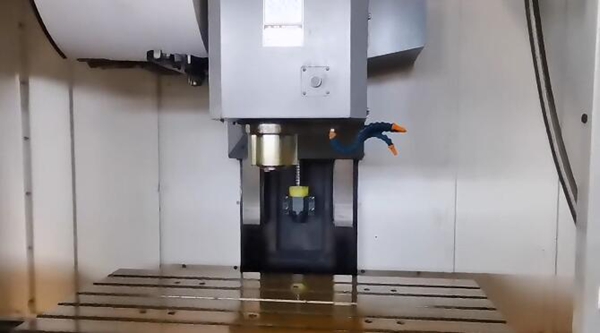

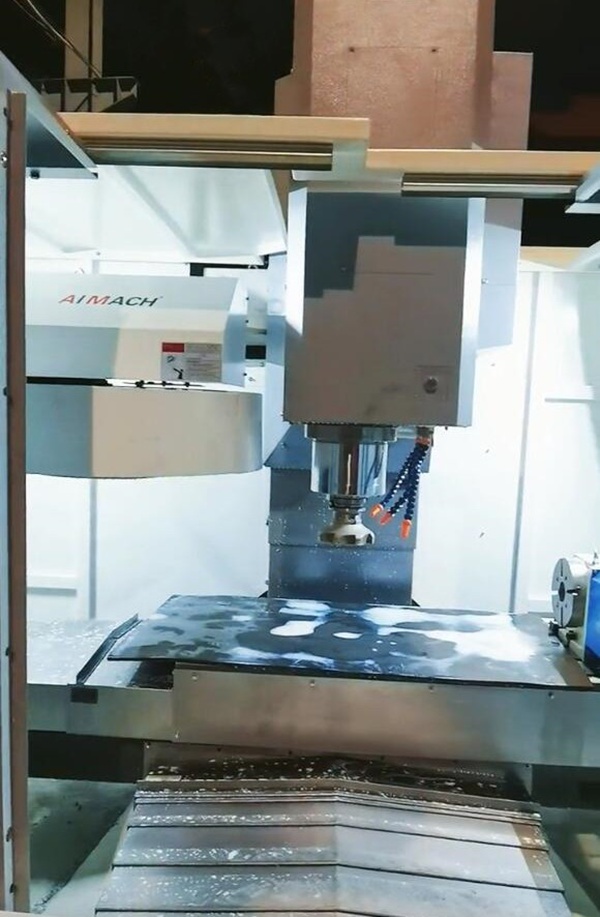

VM1060LH CNC Vertical Machining Center (3 Axis Hard Rail)
Disc Tool Magazine
Carrousel Tool Magazine

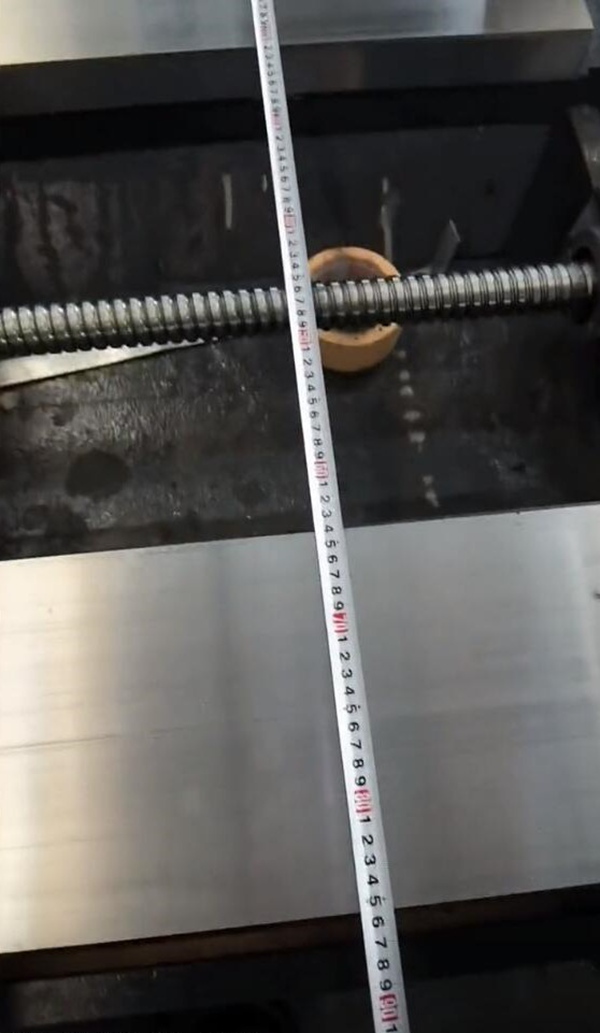

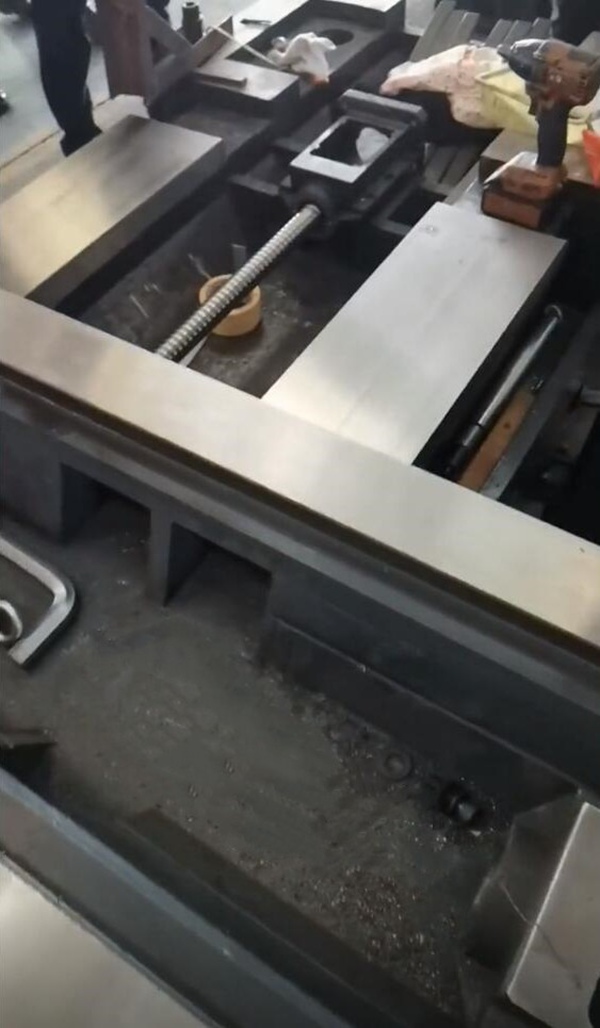

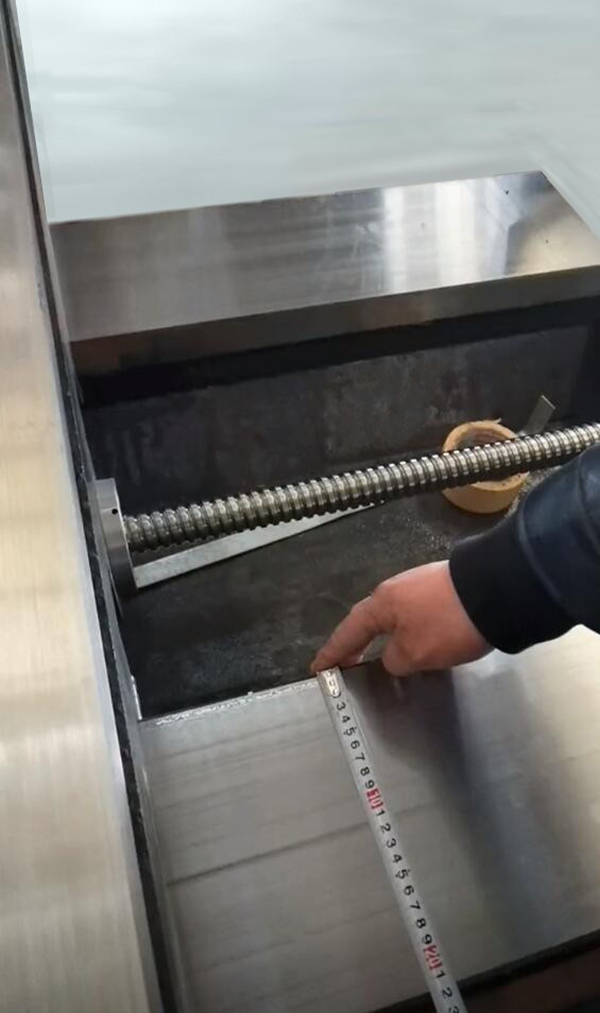

X/Y/Z 3 AXIS Hard Guide Way, Guide Width Very Wide, High Rigidity
Specification
Item (Vertical Machine Center with HARD rail) | Unit | VM640H | VM1050EH | VM850H | VM850LH | VM855LH | VM1060LH |
Table size (L × W) | mm | 800*300 | 1250*360 | 1000*500 | 1000*500 | 1000*550 | 1200*600 |
Max table load | kg | 300 | 500 | 800 | 500 | 600 | 1000 |
T-slots No./width/pitch | mm | 3/18/90 | 3/18/80 | 5/18/90 | 5/18/90 | 5/18/100 | 18*5 |
X/Y/Z axis travel | mm | 600*330*400 | 1000*440*500 | 800*500*550 | 800*500*500 | 800*550*600 | 1000*600*630 |
Distance from spindle nose to worktable | mm | 100-500 | 100-600 | 105-655 | 120-620 | 60-660 | 120-745 |
Distance from spindle center to column guide rail surface | mm | 380 | 460 | 550 | 550 | 550 | 675 |
X/Y/Z axis Rapid movement speed | m/min | 10/10/10 (KND CNC) | 10/10/8 (KND CNC) | 18/18/15 (KND CNC) | 24/24/15 (KND CNC) | 24/24/15 (KND CNC) | 24/24/24 |
Cutting feed speed | mm/min | 1-6000 | 1-6000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
Spindle taper & Tool magazine ATC | tools | BT40/12T Carrousel/DIC | BT40/16T Carrousel/DIC | BT40/24T | BT40/24T | BT40/24T | BT40/24T Carrousel/DIC |
Tool max. dia/length | mm | Φ78/150 | Φ78/300 | Φ78/300 | Φ78/300 | Φ78/300 | Φ175/350 (Φ80/250 No imminent tool) |
Tool exchange mode | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | |
Average tool exchange time | sec | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 4/1.8 |
Positioning accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | ±0.01/±0.008/±0.008 |
Repeated positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | ±0.005/±0.004/±0.004 |
Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 8000 | 10000 |
Spindle specification and installation dia. | BT40/Φ120 | BT40/Φ120 | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | BT40 | |
Spindle driving type | belt | belt | belt | belt | belt | belt | belt |
Spindle motor power | kw | 3.7 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5/11 |
Air source need | kg/cm2 | ≧6 | ≧6 | ≧6 | ≧6 | ≧6 | ≧6 |
Air sourse flow | m3/min | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 |
Machine weight | T | 2.6 | 4.1 | 5.5 | 5.5 | 5.8 | 7.2 |
Machine dimensions (L × W × H) | mm | 1900*1400*2100 | 3000*2100*2600 | 2780*2350*2700 | 2600*2300*2600 | 2850*2350*2700 | 2780*2450*2700 |
Item (Vertical Machine Center with HARD rail) | Unit | VM1165H | VM1270LH | VM1370H | VM1580H | VM1690H | VM1890H |
Table size (L × W) | mm | 1200*600 | 1300*700 | 1300*700 | 1700*800 | 1800*900 | 2000*900 |
Max table load | kg | 1000 | 1200 | 1200 | 1500 | 1600 | 1600 |
T-slots No./width/pitch | mm | 5/18/100 | 5/18/122 | 5/18/152 | 5/22/135 | 5/22/165 | 5/22/165 |
X/Y/Z axis travel | mm | 1100*650*650 | 1200*700*600 | 1300*700*700 | 1500*800*700 | 1600*900*700 | 1800*900*800 |
Distance from spindle nose to worktable | mm | 120-770 | 120-820 | 150-800 | 170-870 | 160-840 | 160-840 |
Distance from spindle center to column guide rail surface | mm | 635 | 785 | 785 | 810 | 950 | 950 |
X/Y/Z axis Rapid movement speed | m/min | 18/18/15 (KND CNC) | 24/24/12(KND CNC) | 10/10/12(KND CNC) | 10/10/12(KND CNC) | 14/14/14(KND CNC) | 14/14/14(KND CNC) |
Cutting feed speed | mm/min | 1-10000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
Spindle taper & Tool magazine ATC | tools | 24 | 24 | 24 | 24 | 24 | 24 |
Tool max. dia/length | mm | Φ78/300 | Φ78/300 | Φ78/300 | Φ112/350 | Φ112/350 | Φ112/350 |
Tool exchange mode | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | |
Average tool exchange time | sec | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic | 7s carrousel/2.5s dic |
Positioning accuracy | mm | 0.01 | 0.008 | 0.008 | 0.01 | 0.01 | 0.01 |
Repeated positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 |
Spindle speed | rpm | 8000 | 8000 | 8000 | 6000 | 6000 | 6000 |
Spindle specification and installation dia. | BT40/Φ150 | BT40/BT50 | BT40/BT50 | BT50 | BT50 | BT50 | |
Spindle driving type | belt | belt | belt | belt | belt | belt | belt |
Spindle motor power | kw | 11 | 11/15 | 15/18.5 | 18.5/22 | 18.5/22 | 22/26 |
Air source need | kg/cm2 | ≧6 | ≧6 | ≧6 | ≧6 | ≧6 | ≧6 |
Air sourse flow | m3/min | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 | ≧0.3 |
Machine weight | T | 7.8 | 9.5 | 10 | 13 | 14 | 15 |
Machine dimensions (L × W × H) | mm | 3680*2500*2700 | 3680*2500*2960 | 3870*3165*2920 | 4260*3360*3120 | 4360*3460*3220 | 4460*3360*3220 |
Note: Parameters can be customized according to customer requirements
Note: If the specification not in list, pls email.
Optional Configuration
• CNC control Siemens, Fanuc, Mitsubishi, Siemens
• XYZ Linear guideway, XZ linear and Z box hard way, XYZ box hard way
• Automatic tool changer Disc type / Carrousel type
• 4th axis
• 5th axis
• High speed spindle(10000-15000rpm)
• Spindle oil cooler
• Water output from spindle
• Toolholder in oil way
• Oil mist
• Chain chip conveyor/ Spiral chip conveyor
• Disc type oil water separator
• Electric cabinet air conditioning
• Tool setting gauge
• X/Y/Z axis optical scale
• Centre
• Increase Z axis height
• Automatic tool length measuring device
• Laser tool test
• Workpiece measurement
• Others customer need
