CK5120 CNC Single Column Vertical VTL Lathe

Product Description

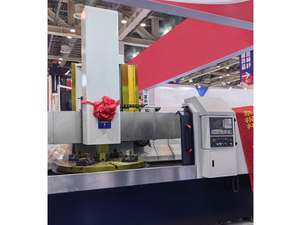

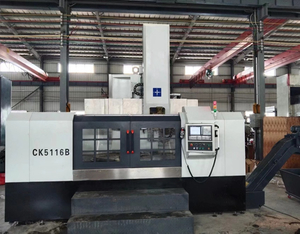

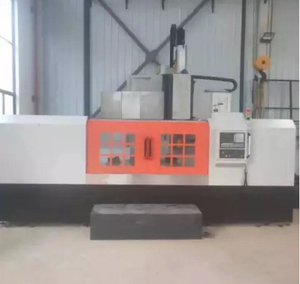

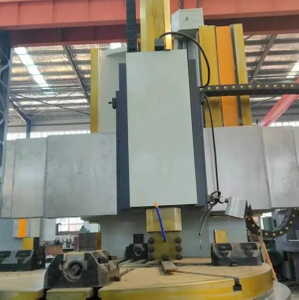

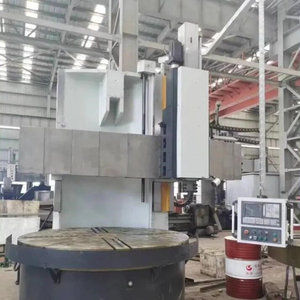

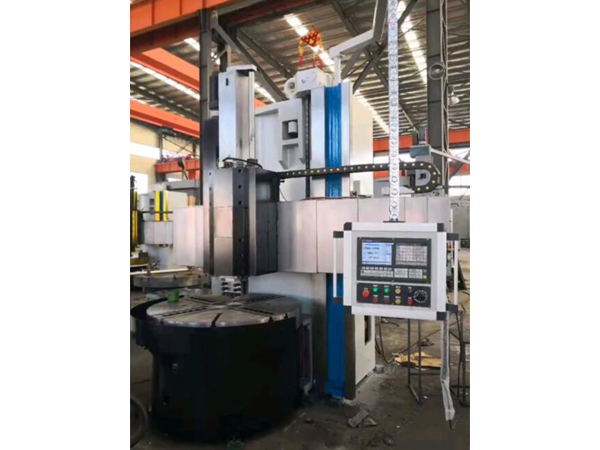

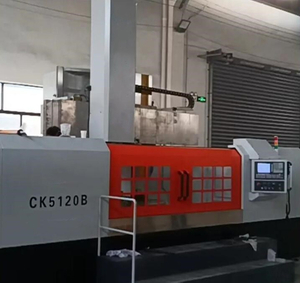

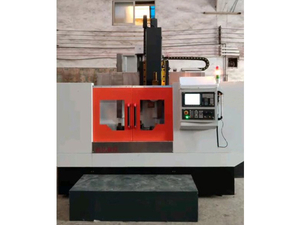

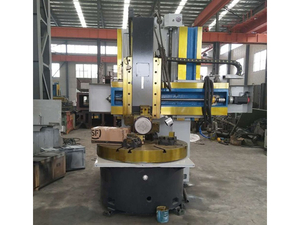

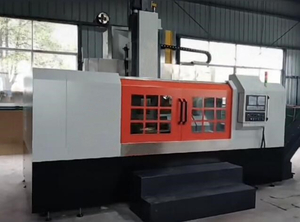

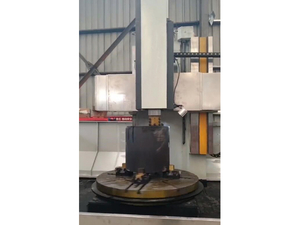

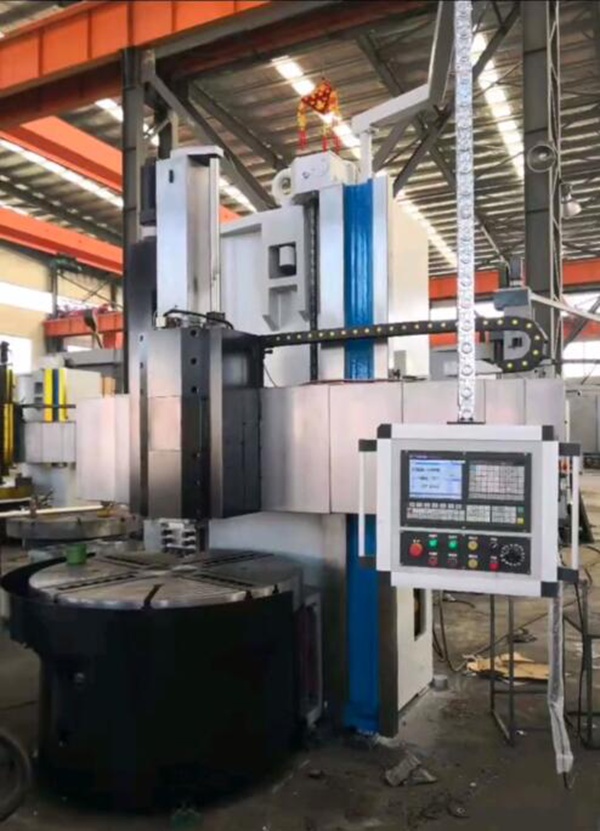

CK5120 VTL Lathe

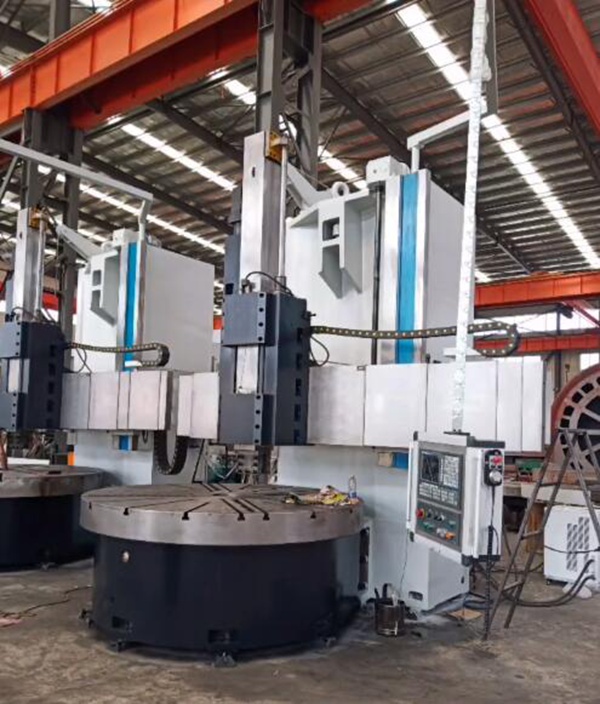

A25 A26

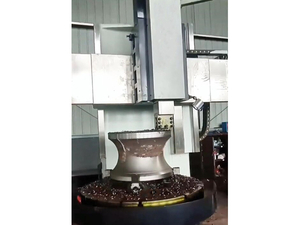

Workpiece Processing

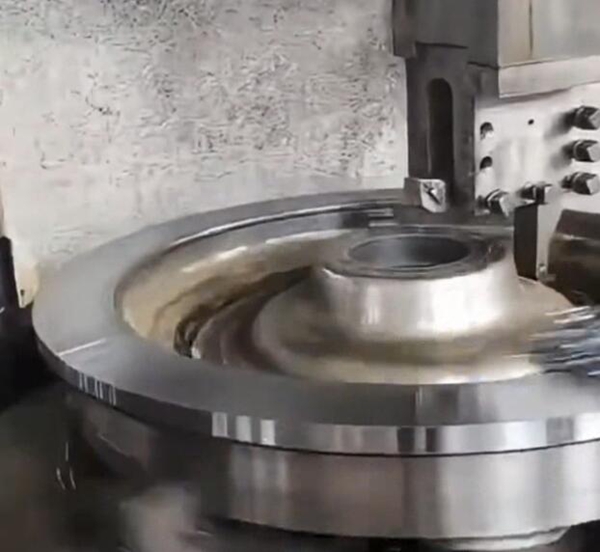

A27

CK5120 Specification

Items	Unit	CK5110	CK5112	CK5116	CK5120	CK5123	CK5126
Max turning diameter	mm	1000	1250	1600	2000	2300	2600
table diameter	mm	900	1000	1400	1800	2000	2300
Max workpiece height	mm	800	1000	1200/1400	1250/1400	1350/1600	1500/1800
Max workpiece weight	t	2	3.5	5	8	8	10
Max worktable torque	KN.m	20	25	30	40	40	45
worktable speed series	step	4 step	4 step	4 step	4 step	4 step	4 step
worktable speed range	r/min	1-250	1-250	1-160	1-100	1-80	1-63
cutting force of vertical tool post	KN	18	18	22	22	22	22
feeding range of vertical tool post	mm/min	0-500	0-500	0-500	0-500	0-500	0-500
horizontal travel of vertical tool post	mm	670	700	915	1050	1180	1600
ram travel of vertical tool post	mm	650	650	800	800	800/1000	800/1000
rapid movement speed of tool post	mm/min	2000	2000	2000	2000	2000	2000
tool type	mm	square ram/electrical tool post
Beam up and down speed	mm/min	440	440	440	440	440	440
tool rod cross-section dimension	mm	30*40	30*40	30*40	30*40	30*40	30*40
main motor power	KW	18.5	22	30	30	30	37
overall dimension of machine	mm	218727113315	227725403415	266228003350	321028503910	323532403910	338033604000
machine weight (approximately)	t	9.6	10.6	13.5/14	18.2/19.2	22.5/23	27.5/28.5

Note: Parameters can be customized according to customer requirements

Optional Configuration

• 4 position/6 position

• Tool cooling (water tube)

• Add height

• Schneider electric

• Taiwan HIWIN ball screws

• Some other requirement from customer

FAQ

1. Can the parameters be changed：

——YES. We can changed some parameters according to customer need.

2. Payment methods：

——T/T, L/C

3. After-sale service：

(1) Free technical service provided via telephone/email/video/video call.

(2) Lifelong service.

(3) Installation abroad for big machine
